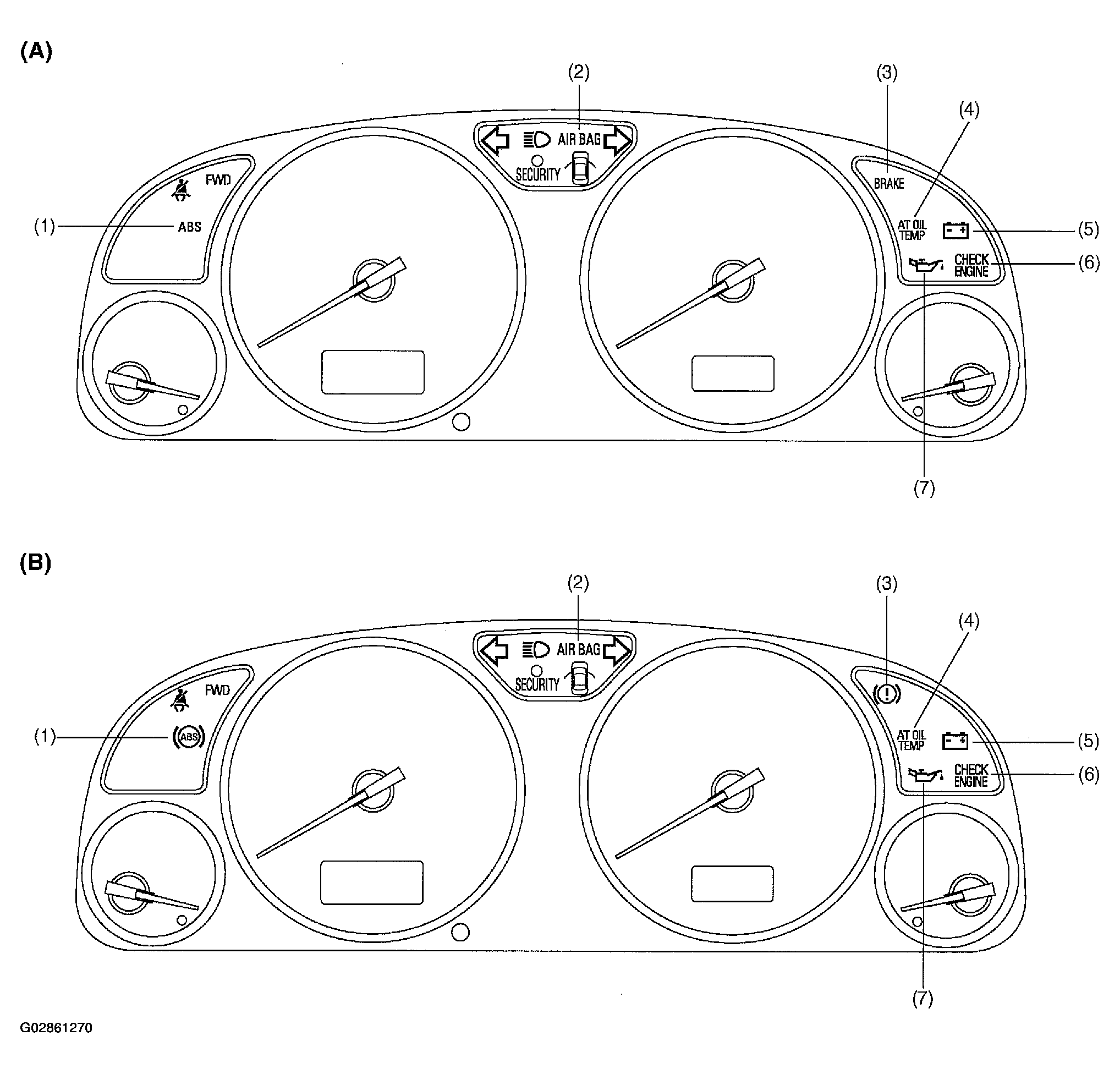

Warning And Indicator Lights
- For USA model
- For CANADA model
- ABS warning light
This light illuminates when a fault occurs in any electrical component of the ABS (Anti-lock Brake System).
- AIR BAG system warning light
This light illuminates when a fault occurs in the AIRBAG system.
- Brake fluid level warning/parking brake indicator light
This light illuminates when the fluid level in the brake reservoir tank lowers below the specified level and/or when the parking brake is applied.
- AT oil temperature warning light
This light illuminates when the ATF temperature exceeds 150°C (302°F); it blinks when a fault occurs in the AT control system.
- Charge indicator light
This light illuminates when a fault occurs in the charging system while the engine is running.
- CHECK ENGINE warning light
This light illuminates when a fault occurs in the MFI (Multiple point Fuel Injection) system.
- Oil pressure warning light
This light illuminates when the engine oil pressure decreases below 14.7 kPa (0.15 kgf/cm2 , 2.1 psi).

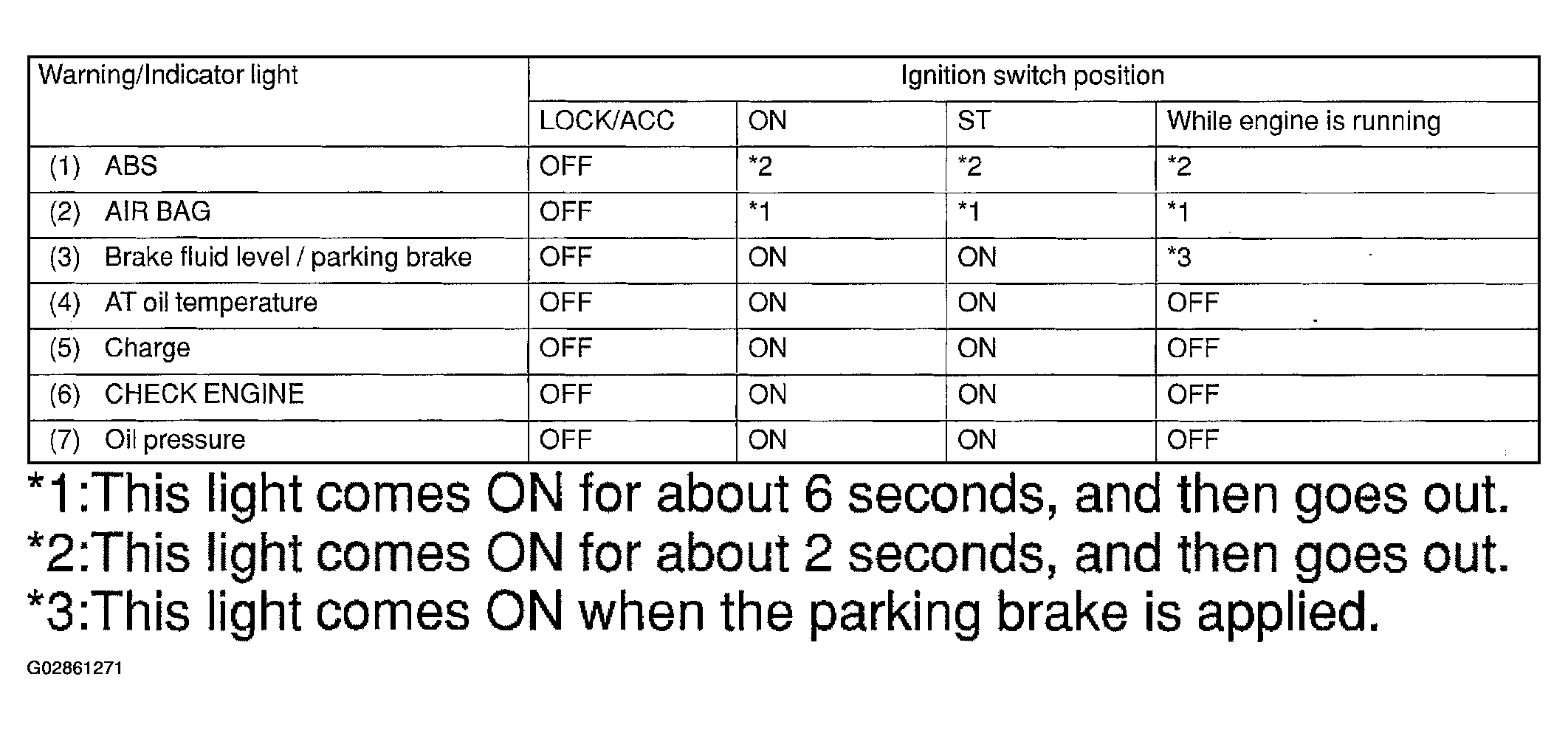

If everything is normal, the warning and indicator lights should be ON or OFF as shown below according to ignition switch positions.
