Engine Mechanical
>>
Cooling Fan
>>
Cooling System - Mechanism & Function
>>
Radiator Fan
>>
Function
>>
Model With A/C
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Model With A/C

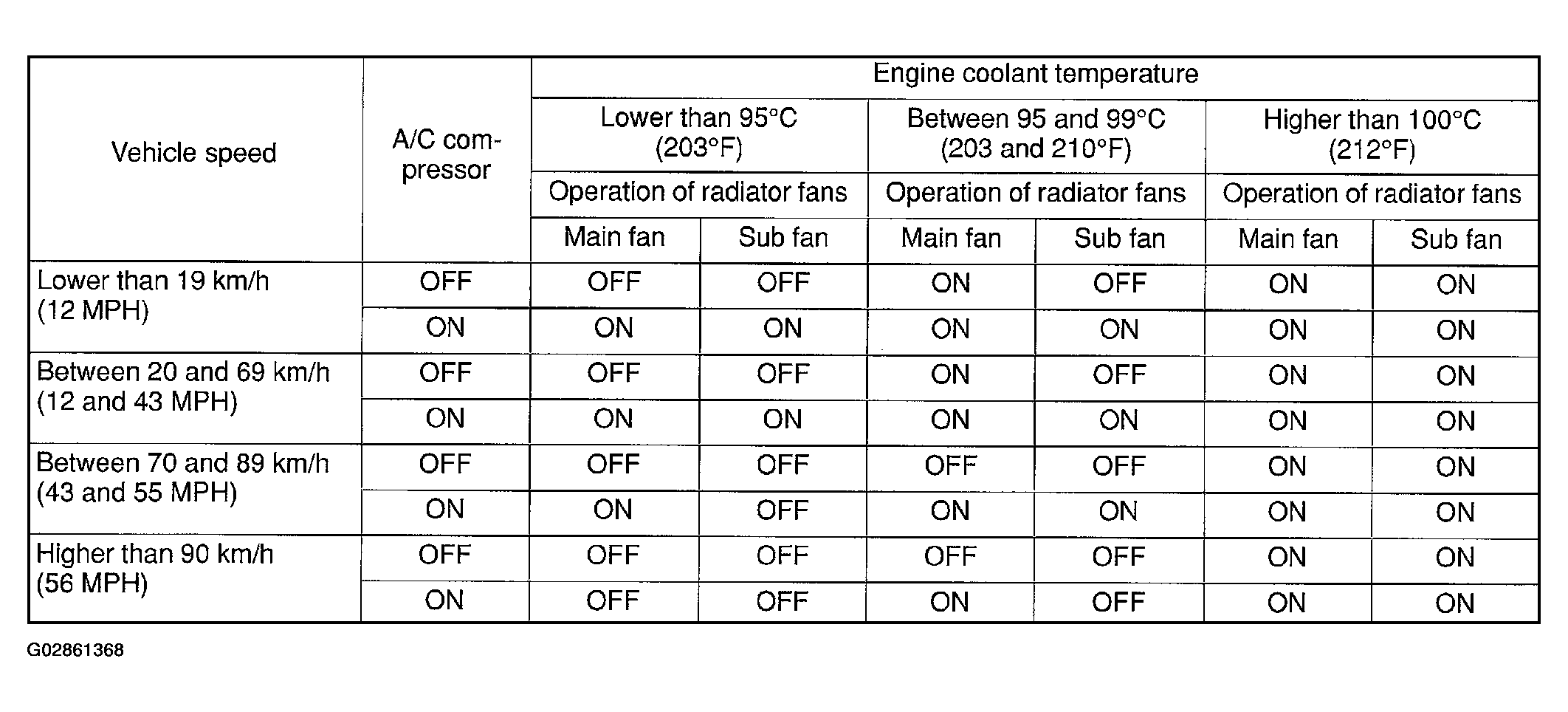

Fig 1: Radiator Fan Function Chart (With A/C)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
