Model Without A/C

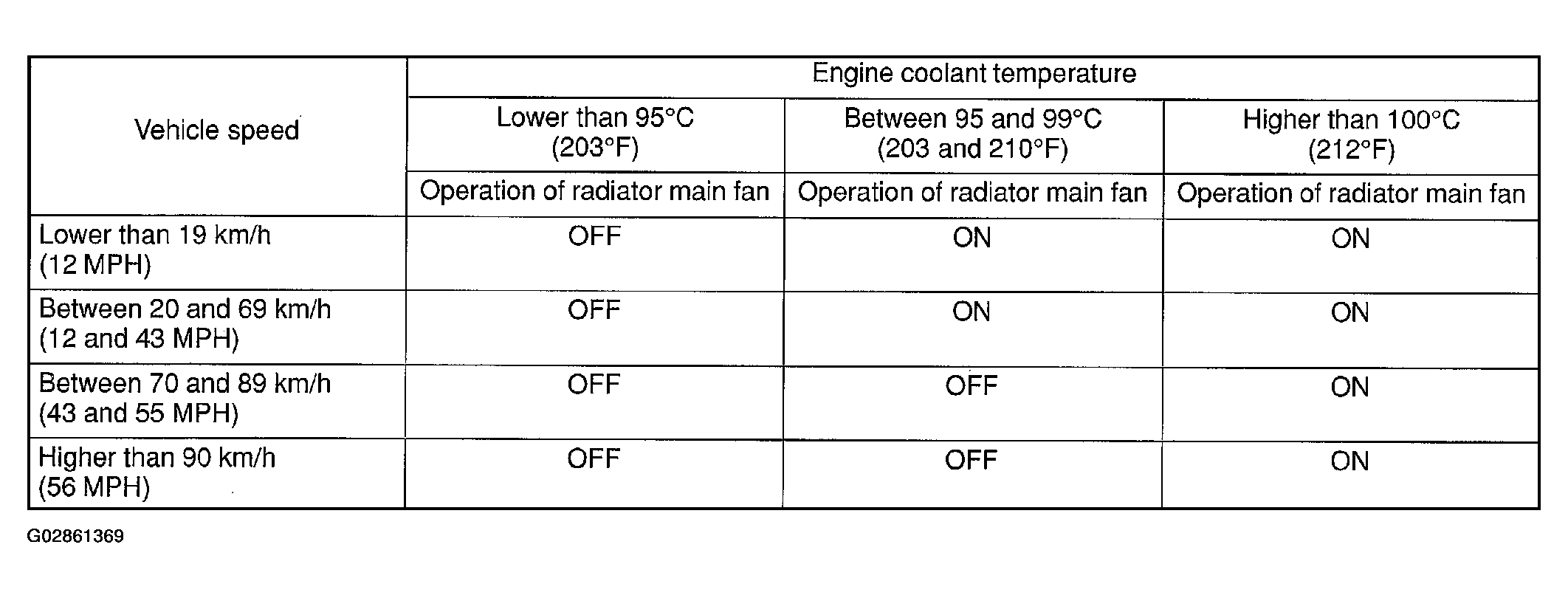

Fig 1: Radiator Fan Function Chart (Without A/C)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
