Electrical Components Location: Location: Sensor
WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

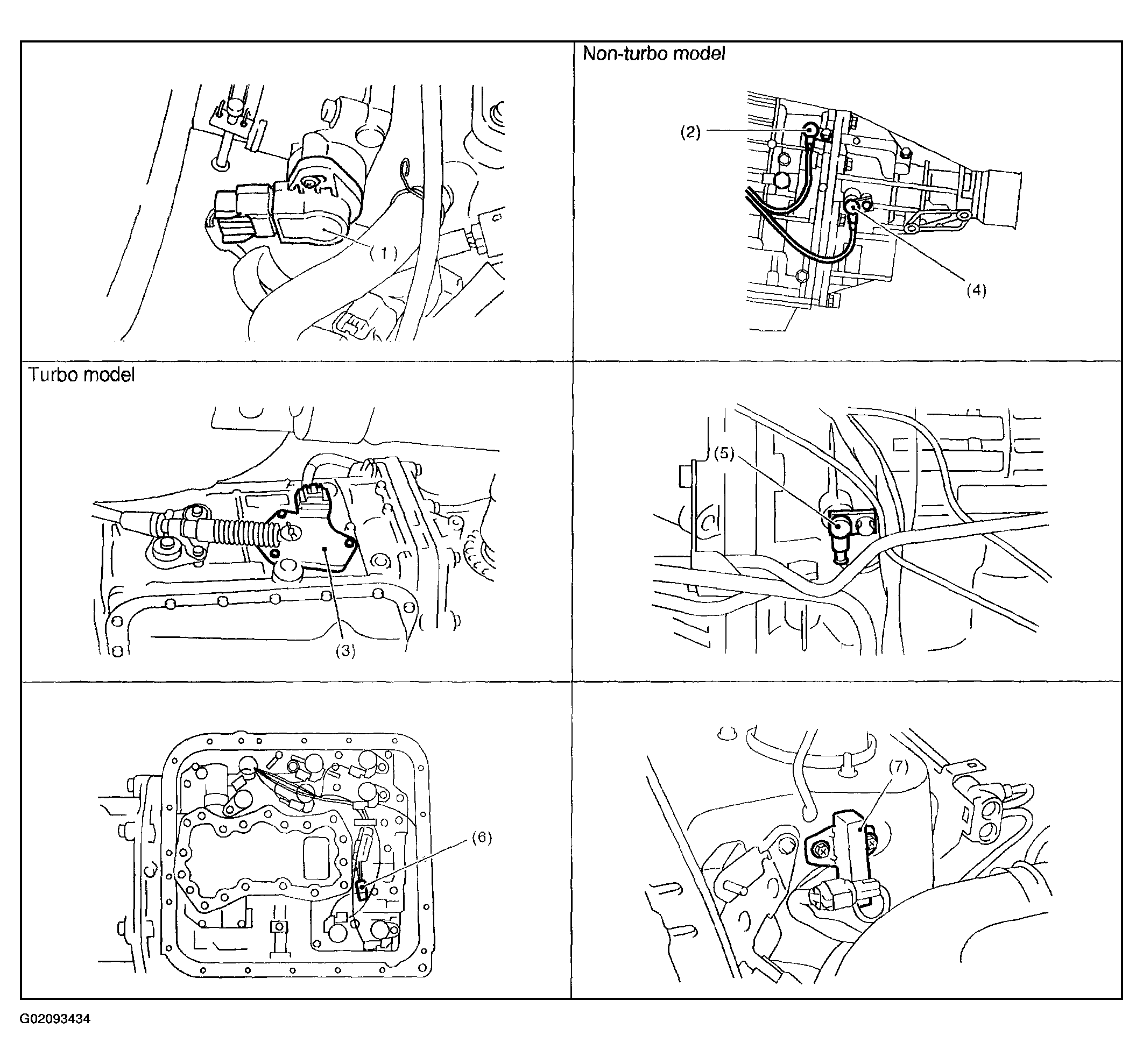

Fig 1: Locating Sensor Electrical Components (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

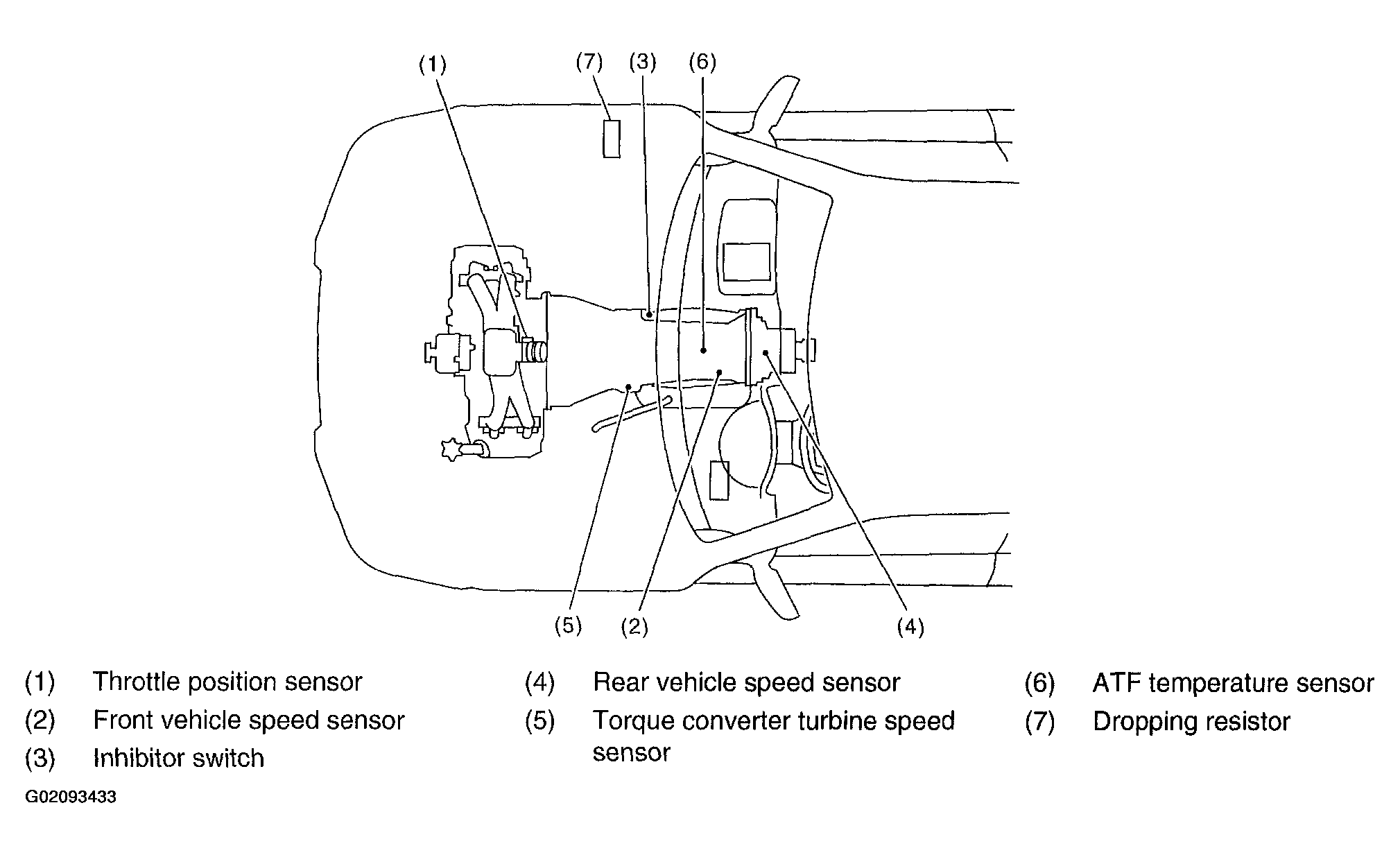

Fig 2: Locating Sensor Electrical Components (2 Of 2)
