Pipe Assembly: Inspection

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Check all disassembled parts for wear, damage or other abnormalities. Repair or replace faulty parts as required.

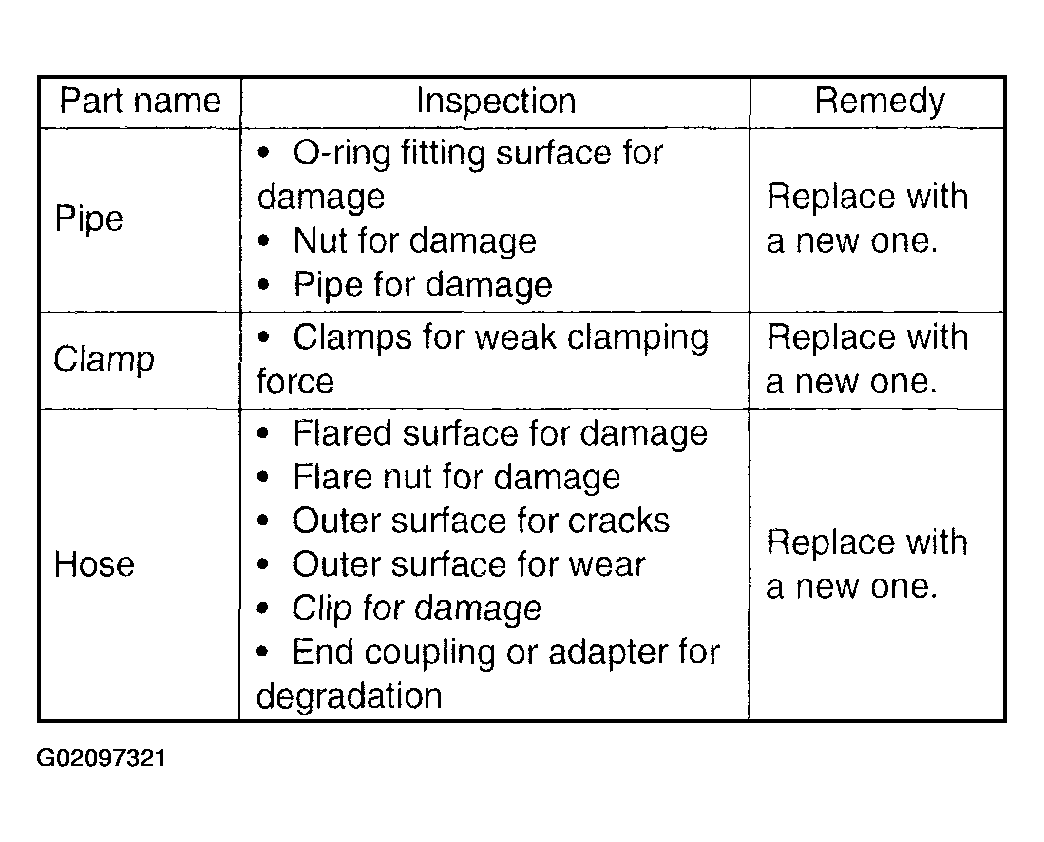

Fig 1: Inspecting Pipe Assembly Chart

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Although the surface layer materials of rubber hoses have excellent weathering resistance, heat resistance and resistance for low temperature brittleness, they are likely to be damaged chemically by brake fluid, battery electrolyte, engine oil and automatic transmission fluid and their service lives are to be very shortened. It is very important to keep the hoses free from before mentioned fluids and to wipe out immediately when the hoses are adhered with the fluids.
Since the resistances for heat or low temperature brittleness are gradually declining according to time accumulation of hot or cold conditions for the hoses and their service lives are shortening accordingly, it is necessary to perform the careful inspection frequently when the vehicle is used in hot weather areas, cold weather area and a driving condition in which many steering operations are required in short time.
Particularly, continuous work of relief valve over 5 seconds causes to reduce service lives of the hoses, the oil pump, the fluid, etc. due to over heat.

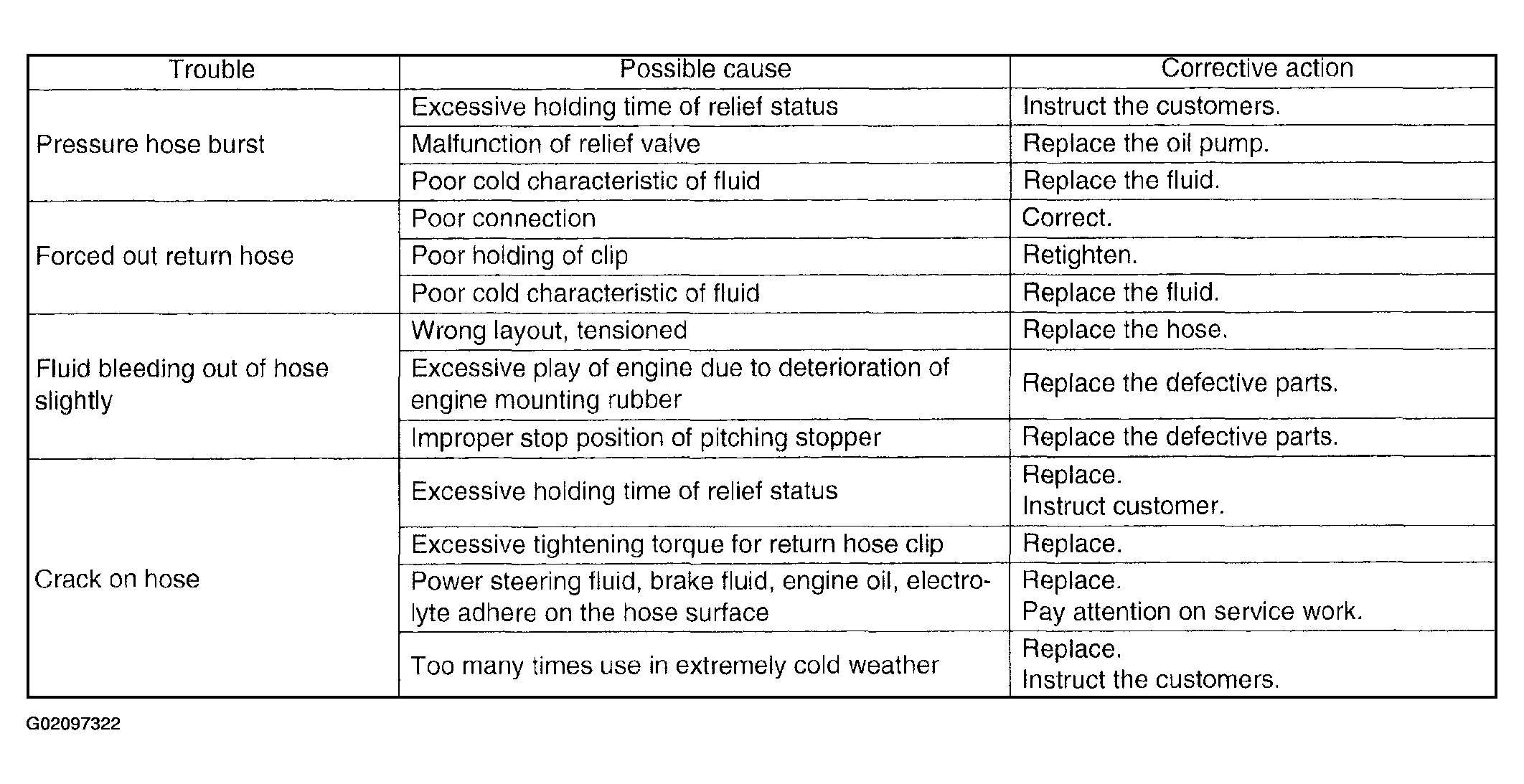

Fig 2: Pipe Assembly Troubleshooting Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE: It is likely that although one judges fluid leakage, there is actually no leakage. This is because the fluid spilt during the last maintenance was not completely wiped off. Be sure to wipe off spilt fluid thoroughly after maintenance.

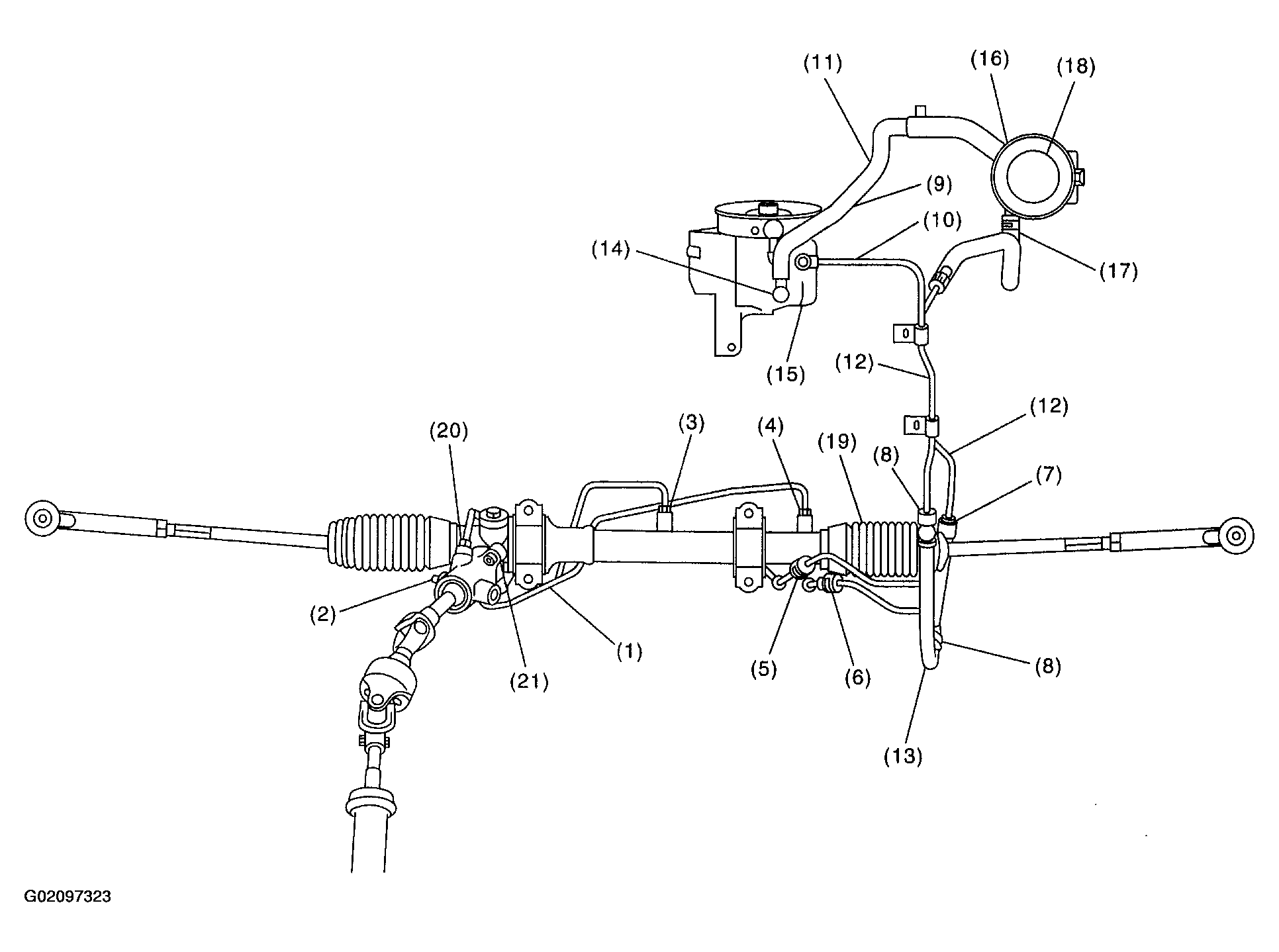

Fig 3: Inspecting Fluid Leakage (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

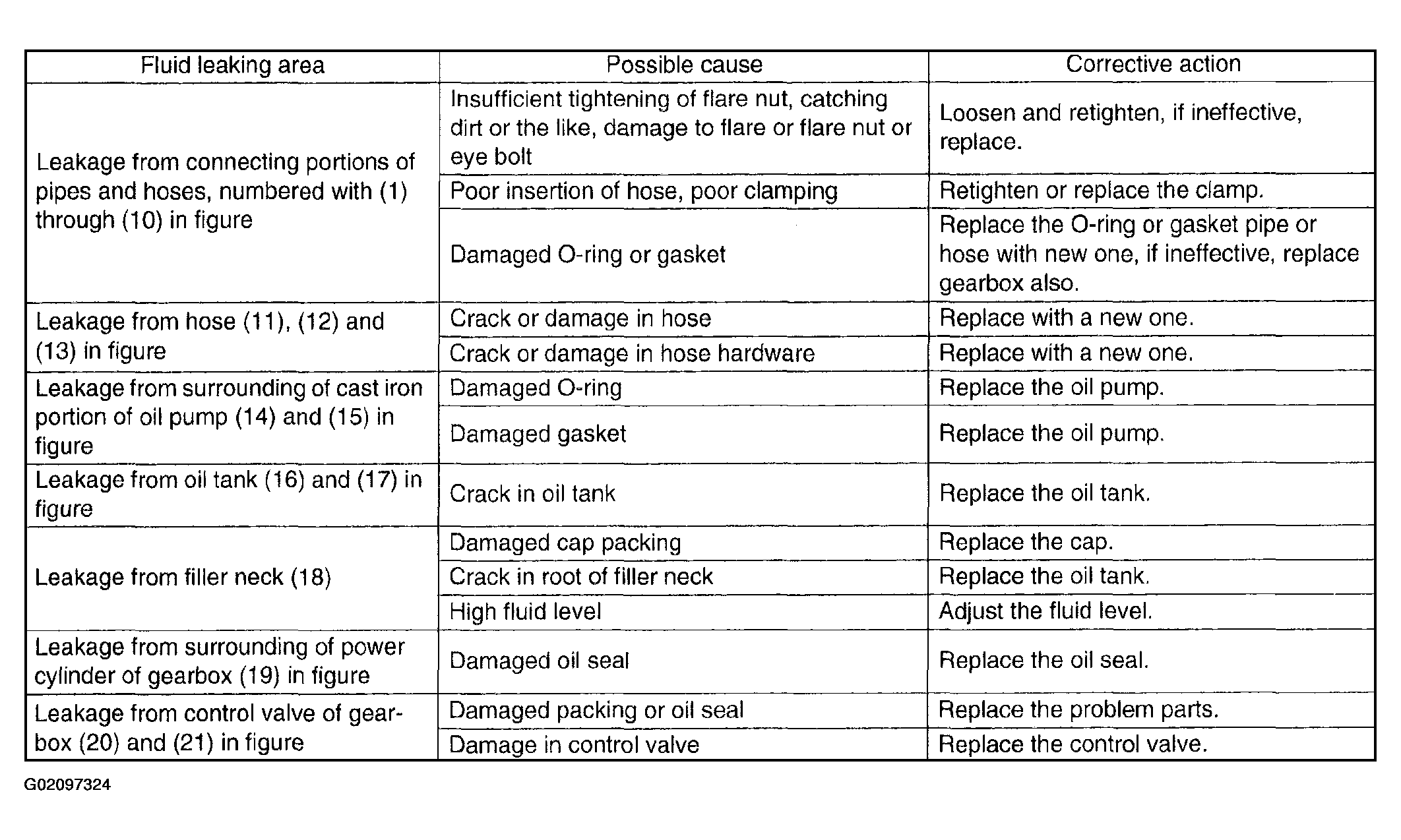

Fig 4: Inspecting Fluid Leakage (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
