Integrated Module: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Refer to REMOVAL , Instrument Panel Assembly.
  3. Remove the nut, then remove the integrated module while disconnecting the connector.

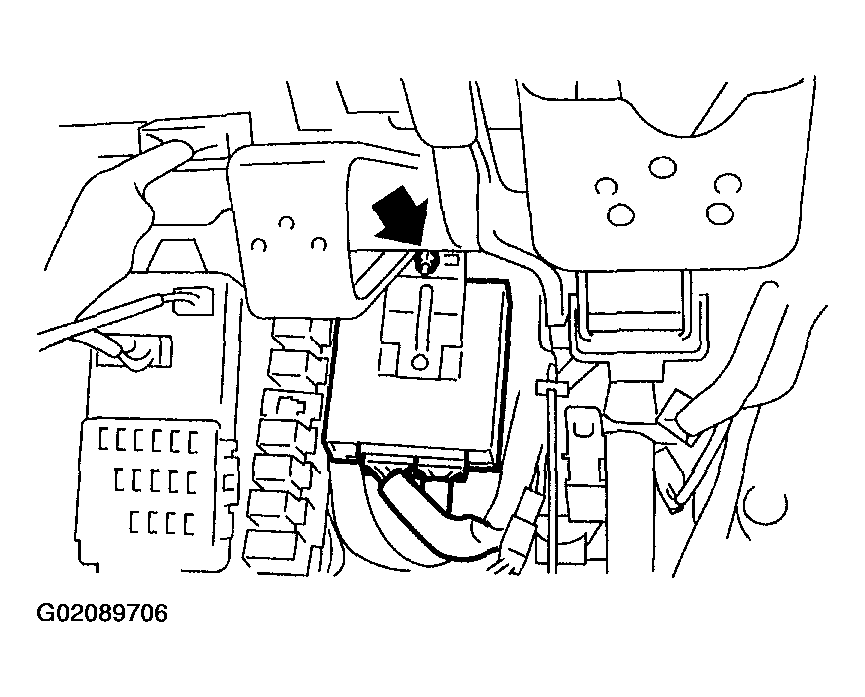

    Fig 1: Removing Integrated Module
    G02089706Courtesy of SUBARU OF AMERICA, INC.
