Electrical Specification

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Connector Terminals Of Security System

Courtesy of SUBARU OF AMERICA, INC.

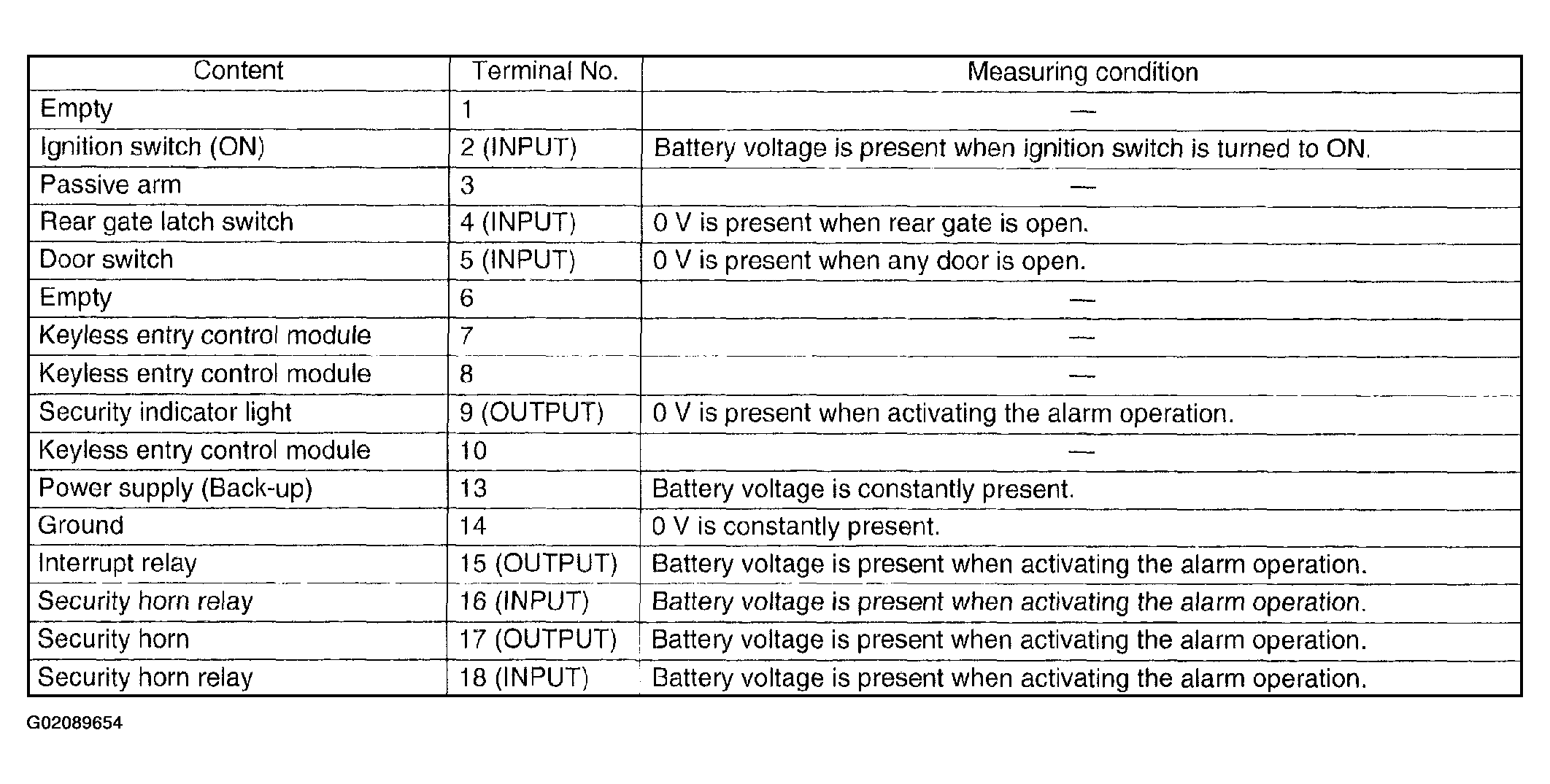

Fig 2: Security System Specifications Chart

Courtesy of SUBARU OF AMERICA, INC.
