Section 133 (Clutch System): Flywheel: Installation

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the flywheel and ST.
ST 498497100 CRANKSHAFT STOPPER

Fig 1: Identifying Flywheel And ST
Courtesy of SUBARU OF AMERICA, INC.
Tighten the flywheel attaching bolts to the specified torque.
NOTE: Tighten the flywheel Identifying bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.
1. Tightening torque: 72 N.m (7.3 kgf-m, 52.8 ft-lb)

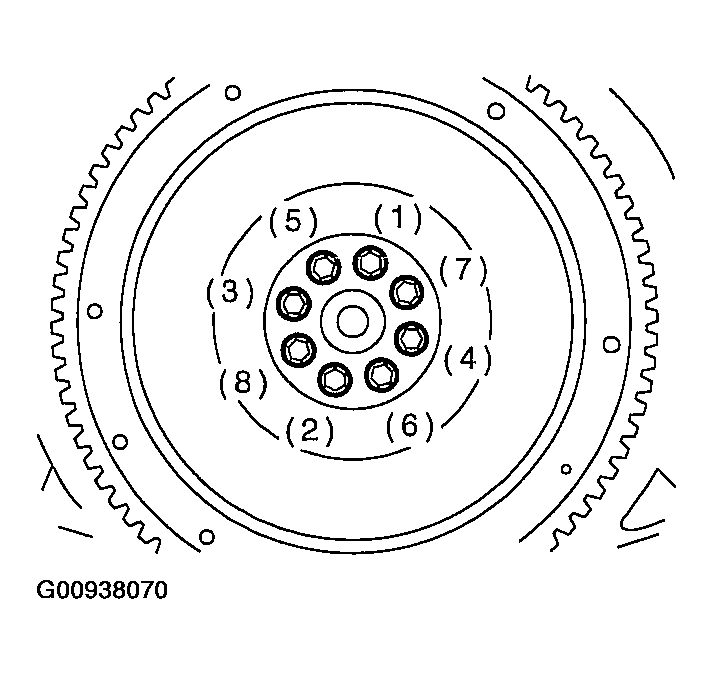

Fig 2: Tightening Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch disc and cover. < Ref. to INSTALLATION .>
Install the transmission assembly. < Ref. to INSTALLATION .>
