Body Integrated Module: Removal

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover. Refer to REMOVAL , Instrument Panel Assembly .
  3. Remove the nut, then remove the body integrated module while disconnecting the connector.

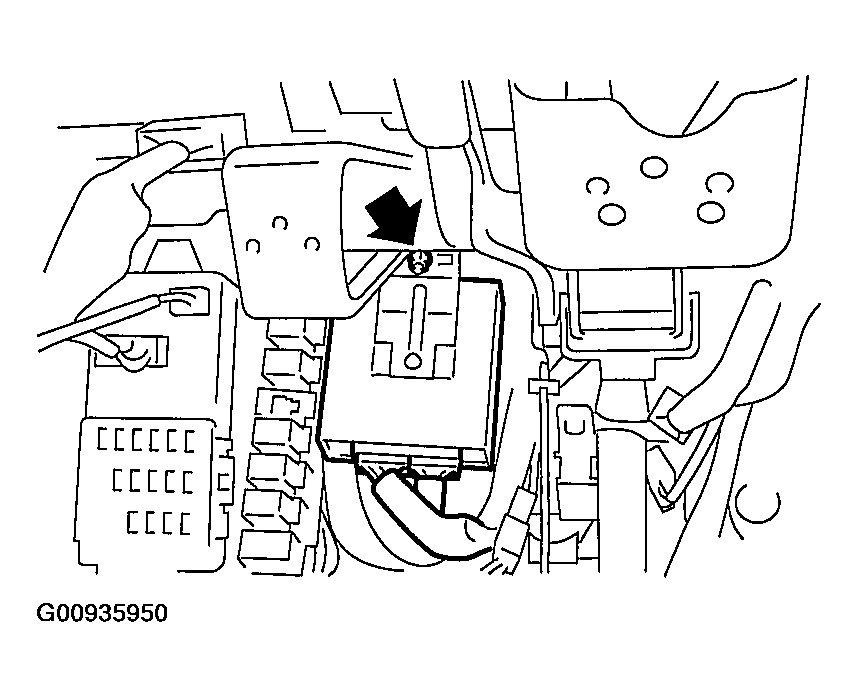

    Fig 1: Identifying Nut
    G00935950Courtesy of SUBARU OF AMERICA, INC.
