Keyless Entry Control Module: Removal

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Refer to REMOVAL , Glove Box .
  3. Remove the nut, and then remove the keyless entry control module while disconnecting connector.

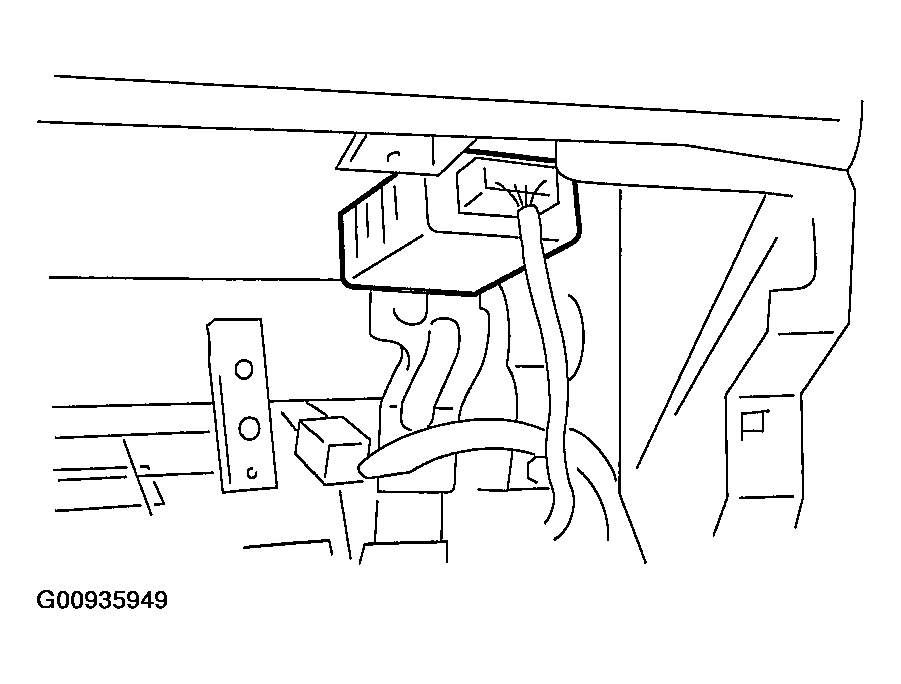

    Fig 1: Identifying Keyless Entry Control Module
    G00935949Courtesy of SUBARU OF AMERICA, INC.
