Body Integrated Module

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

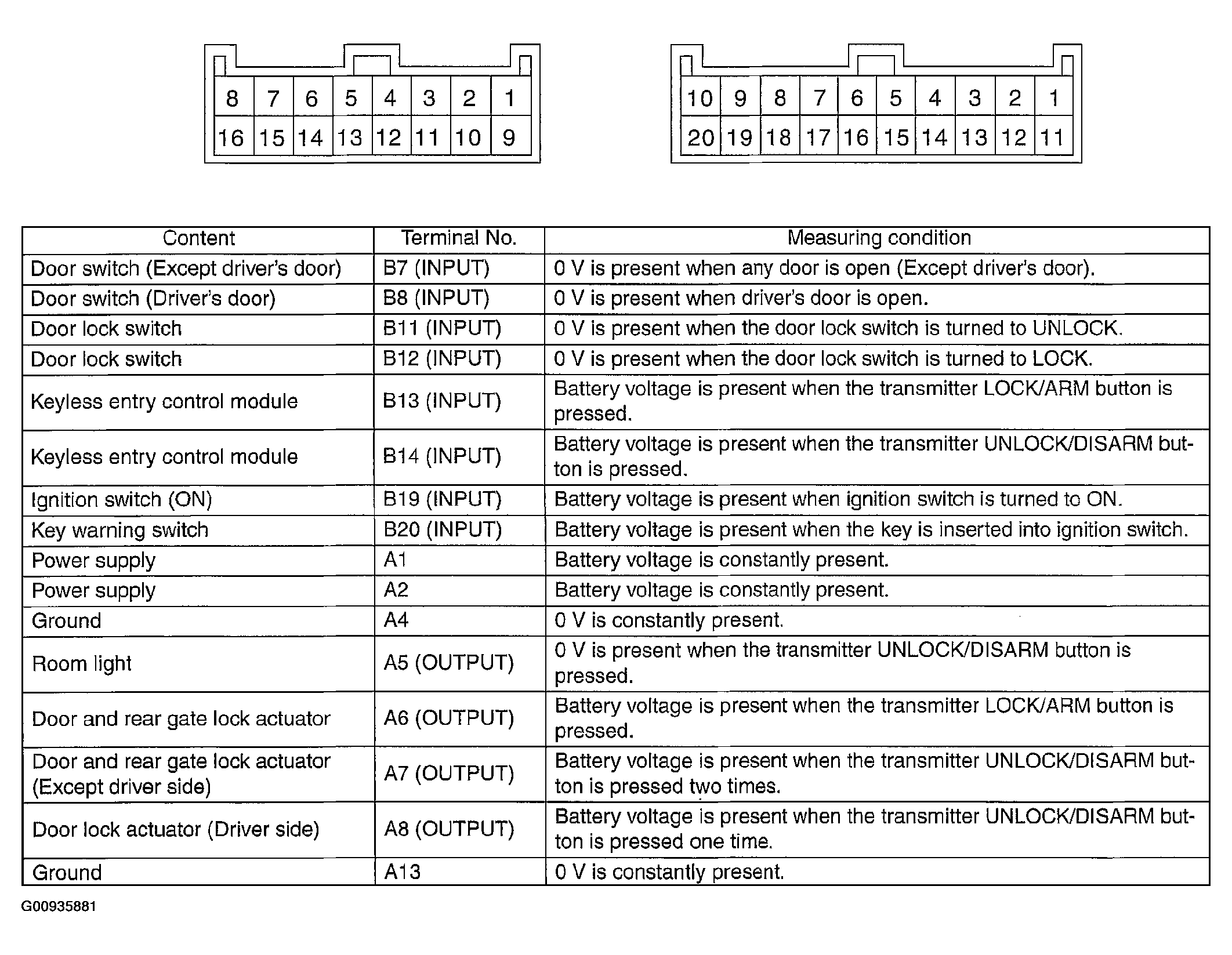

Fig 1: Body Integrated Module Connector
G00935881Courtesy of SUBARU OF AMERICA, INC.
