Impact Sensitivity

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before adjustment, make sure the security control module has been securely installed on the bracket.

Remove the security control module. Refer to REMOVAL .
Adjust the sensitivity adjust screw in the security control module.
NOTE: After adjusting, be sure to plug the adjust screw hole.

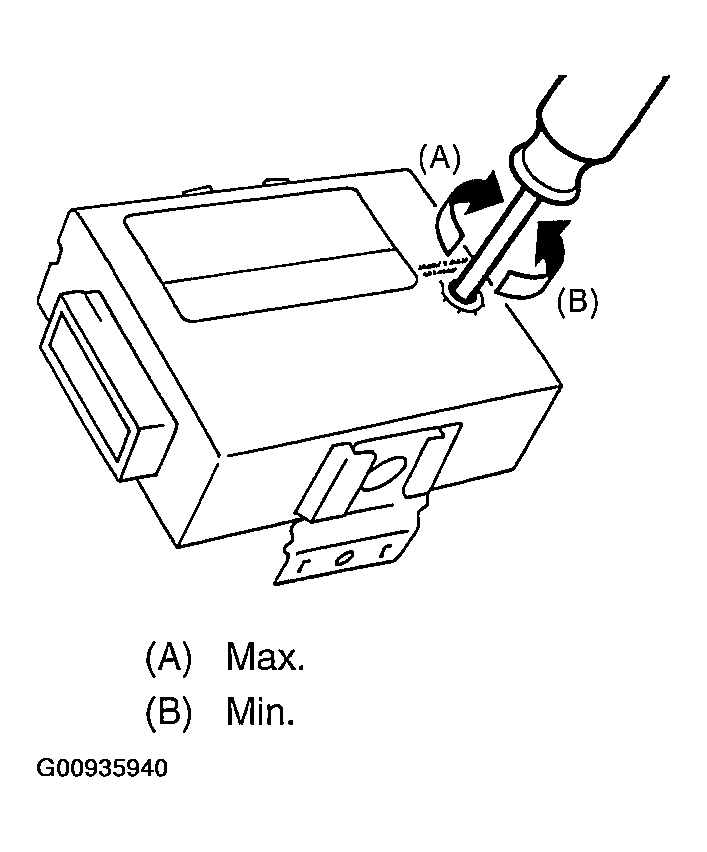

Fig 1: Adjusting Screw Hole
Courtesy of SUBARU OF AMERICA, INC.
Install the security control module.
Perform the impact sensitivity test.
