Combination Meter: Speedometer: Specifications

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

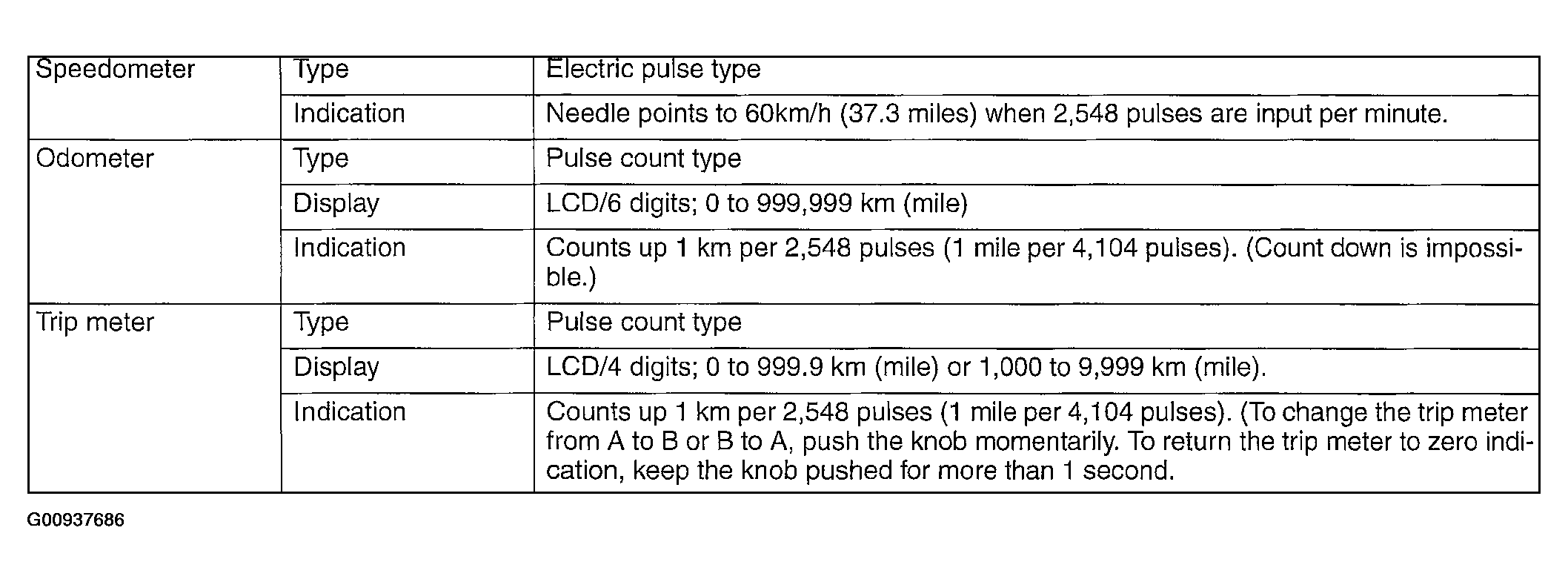

Fig 1: Identifying Speedometer Specification Table
G00937686Courtesy of SUBARU OF AMERICA, INC.
