Component Locations

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
Door Lock Actuators Inside door
Door Lock Switch Inside compartment door panels. See Fig 6 .
Horn Relay In main fuse box under hood. See Fig 6 .
Integrated Relay Behind left side of dash. See Fig 3 .
Interrupt Relay Behind left side of dash. See Fig 6 .
Keyless Entry Control Module Behind left side of dash. See Fig 6 .
Main Fuse Box On left side of engine compartment
Passive Arm Connector On driver side front lower pillar, near wheel. See Fig 6 .
Rear Gate Latch Switch (Wagon) In Rear Gate At Center Bottom.
Security Control Module Behind right side of dash. See Fig 6 .
Security Horn Relay Behind left side of dash. See Fig 6 .

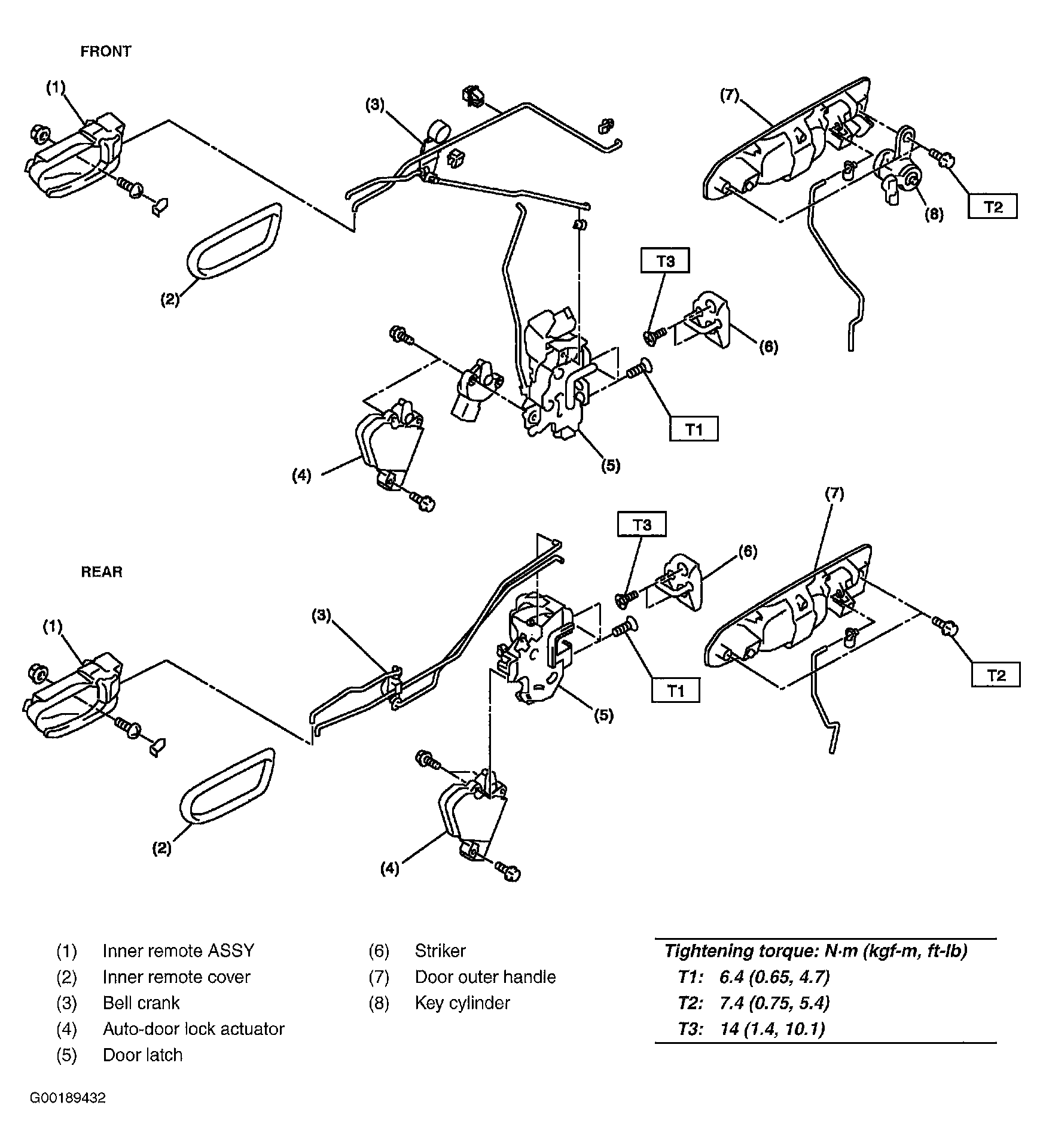

Fig 1: Locating Door Lock Assembly Components
G00189432Courtesy of SUBARU OF AMERICA, INC.

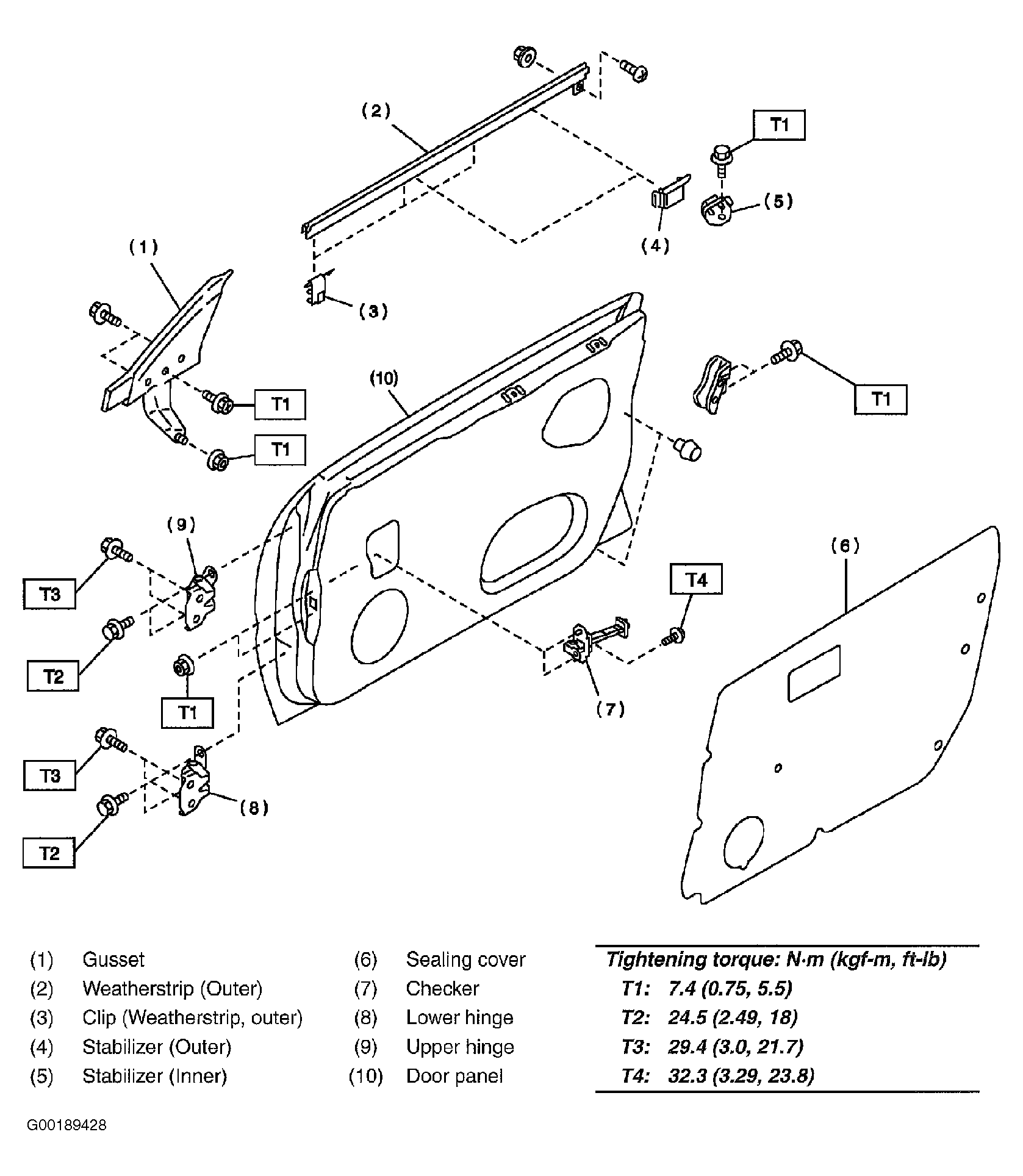

Fig 2: Locating Front Door Panel Components
G00189428Courtesy of SUBARU OF AMERICA, INC.

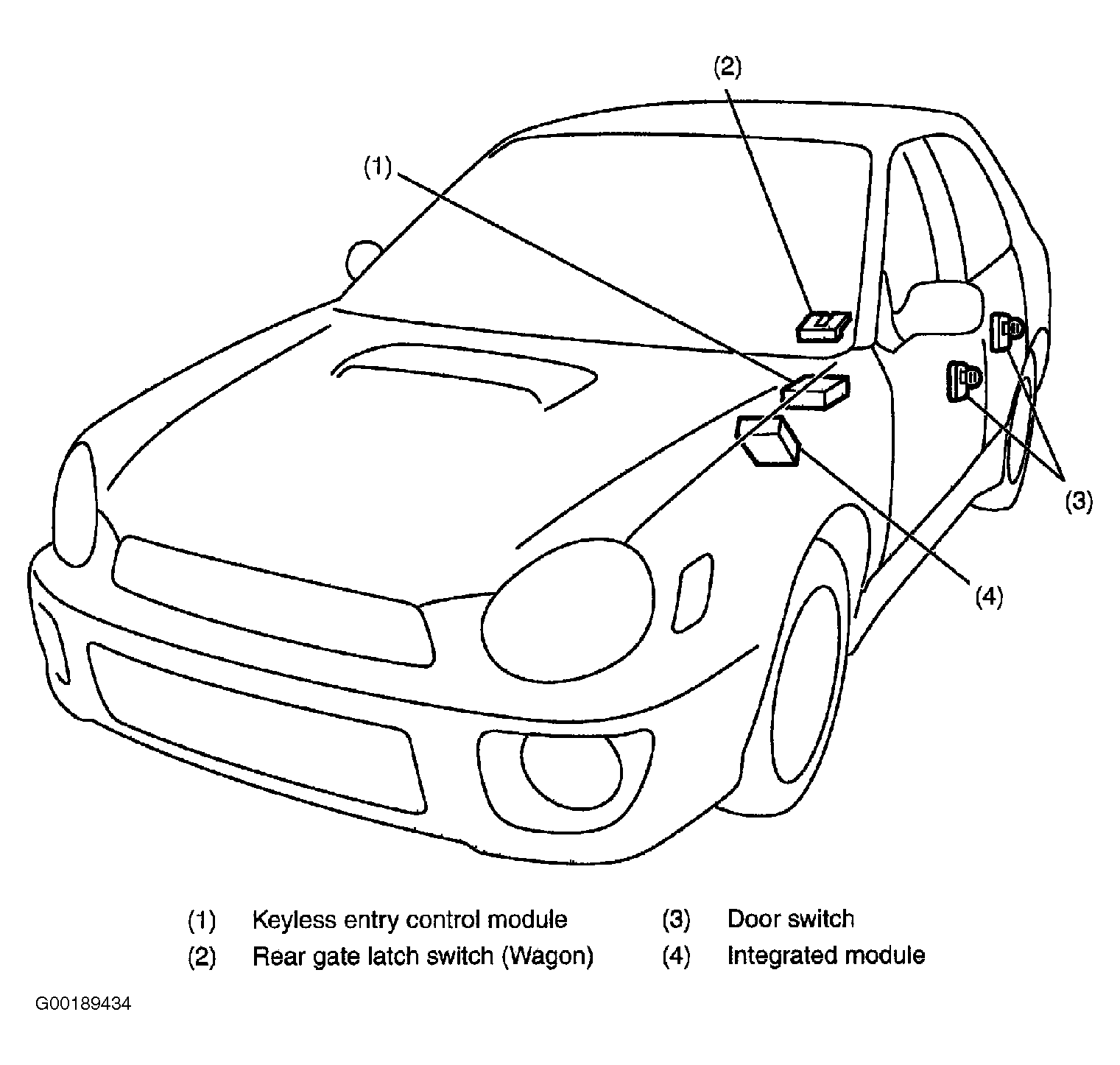

Fig 3: Locating Keyless Entry System Components
G00189434Courtesy of SUBARU OF AMERICA, INC.

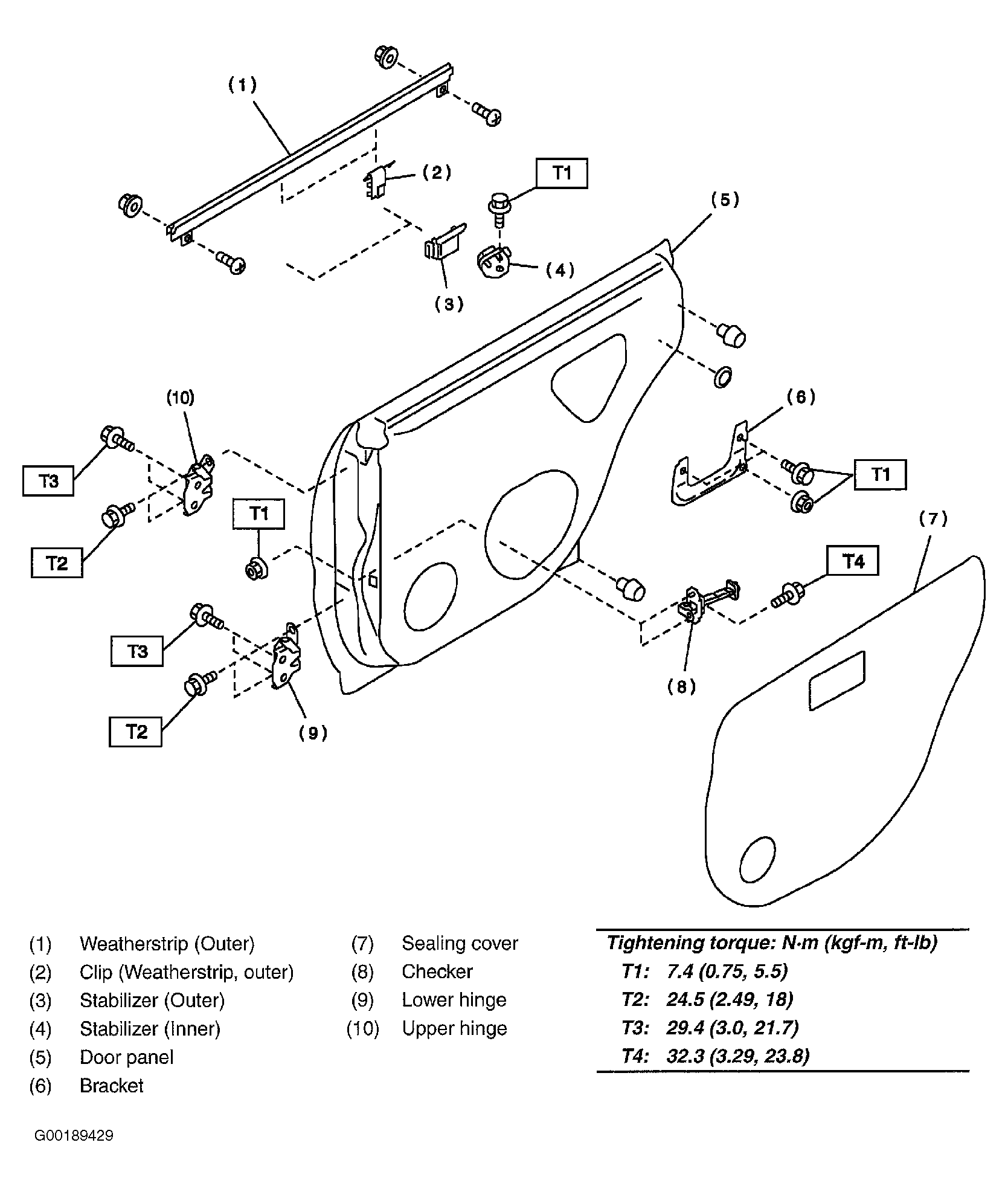

Fig 4: Locating Rear Door Panel Components
G00189429Courtesy of SUBARU OF AMERICA, INC.

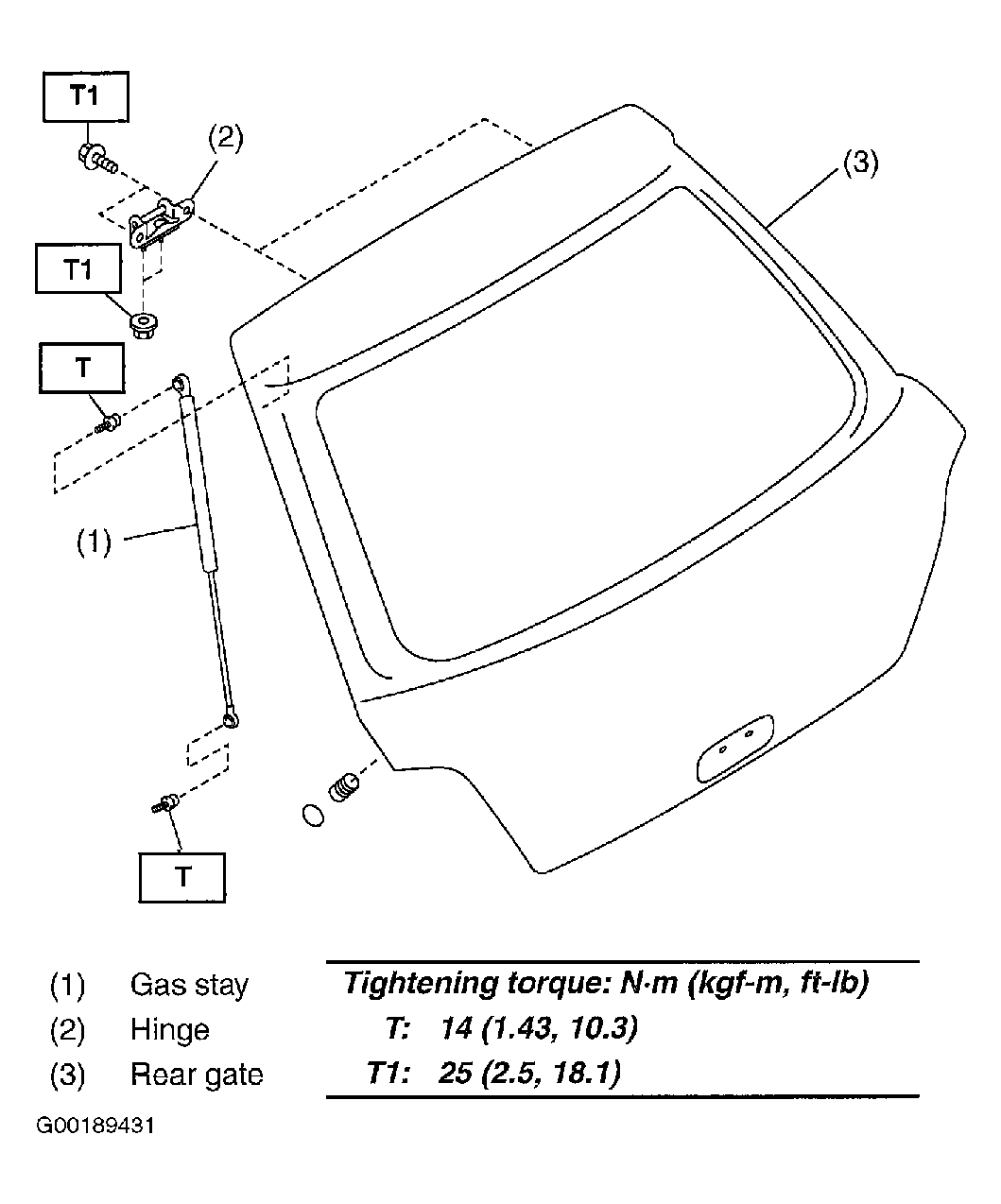

Fig 5: Locating Rear Gate Panel Components
G00189431Courtesy of SUBARU OF AMERICA, INC.
Fig 6: Locating Security System Components
G00189435Courtesy of SUBARU OF AMERICA, INC.

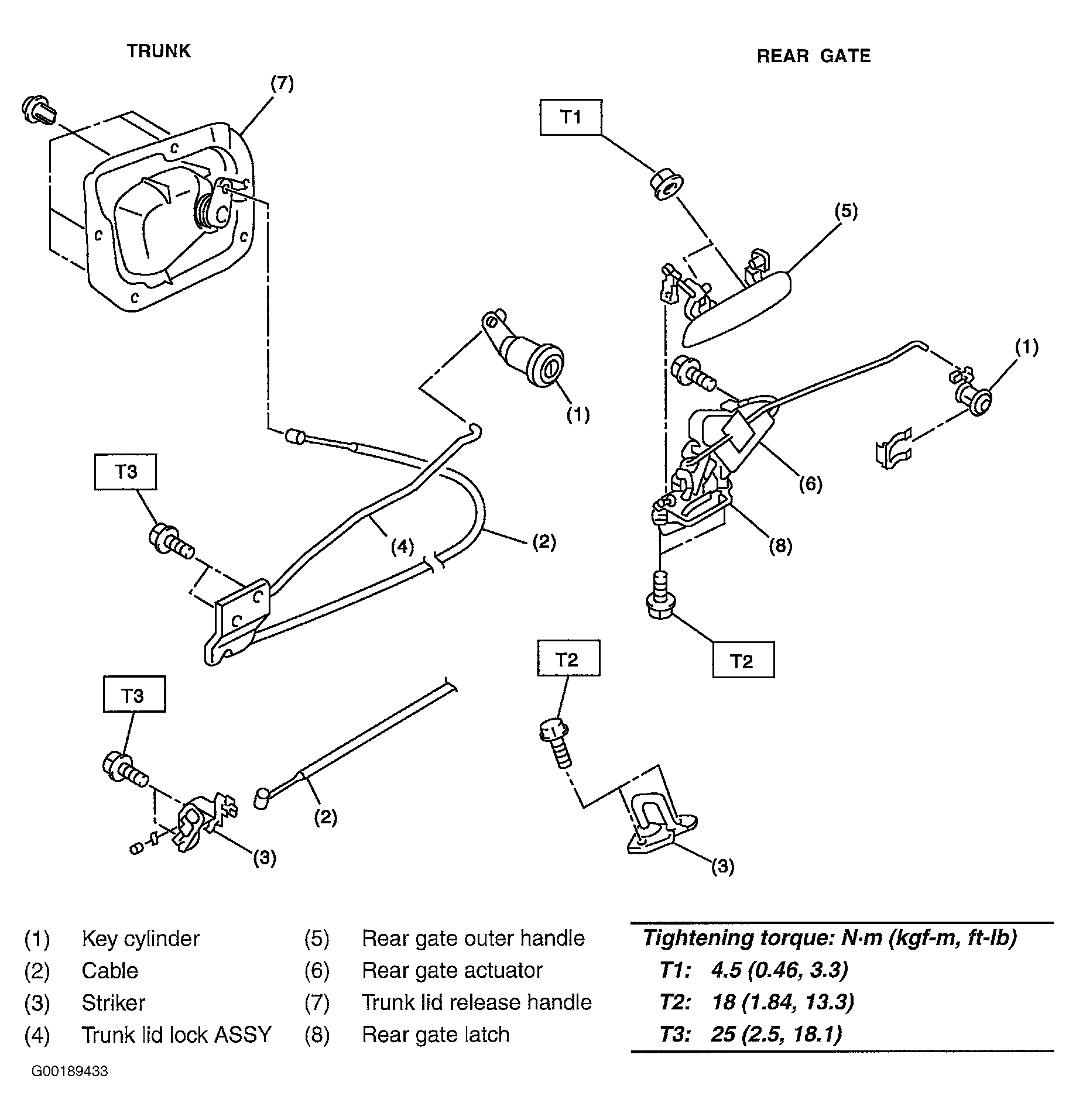

Fig 7: Locating Trunk Lid & Rear Gate Lock Components
G00189433Courtesy of SUBARU OF AMERICA, INC.

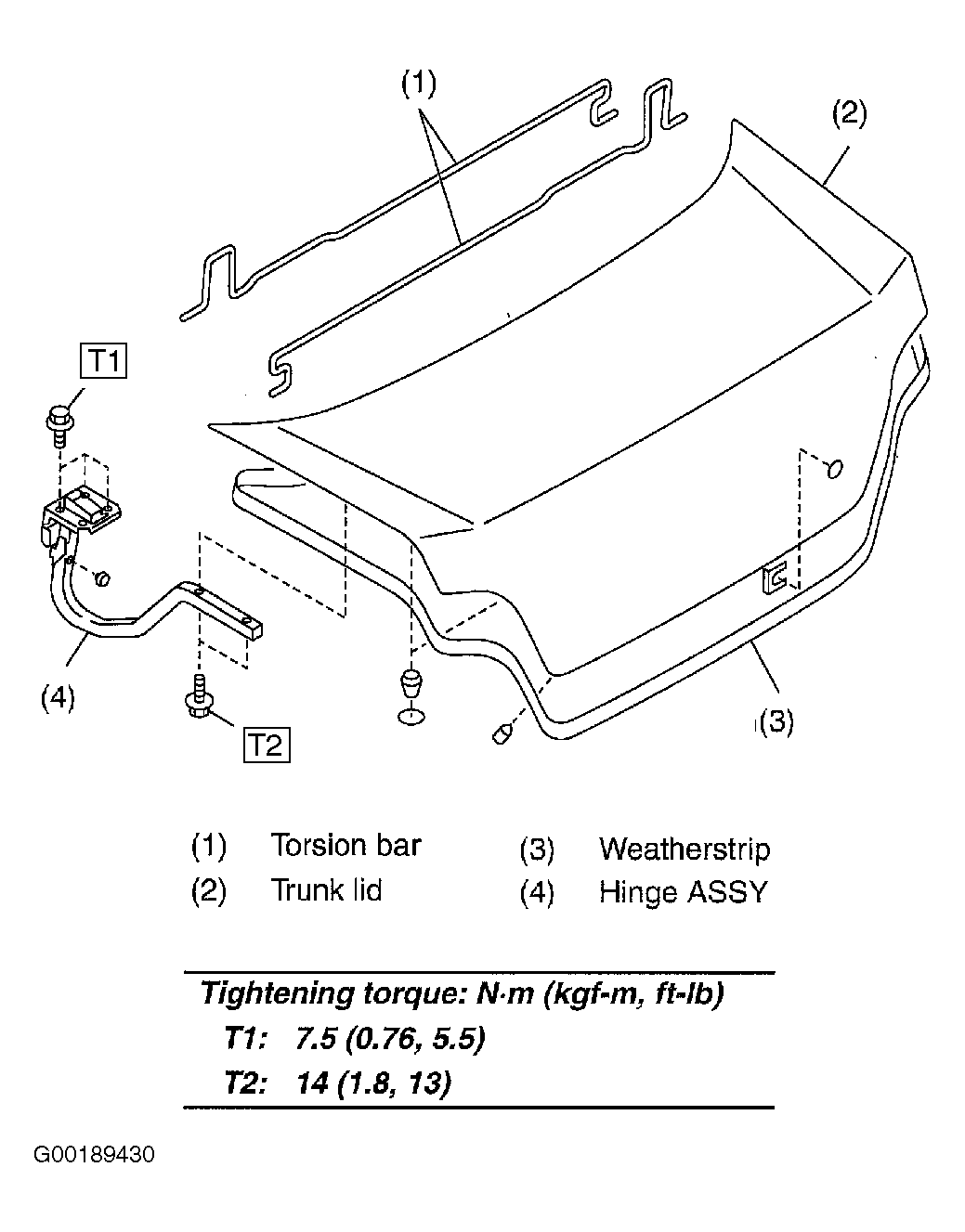

Fig 8: Locating Trunk Lid Panel Components
G00189430Courtesy of SUBARU OF AMERICA, INC.
