Check Engine Control Module

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

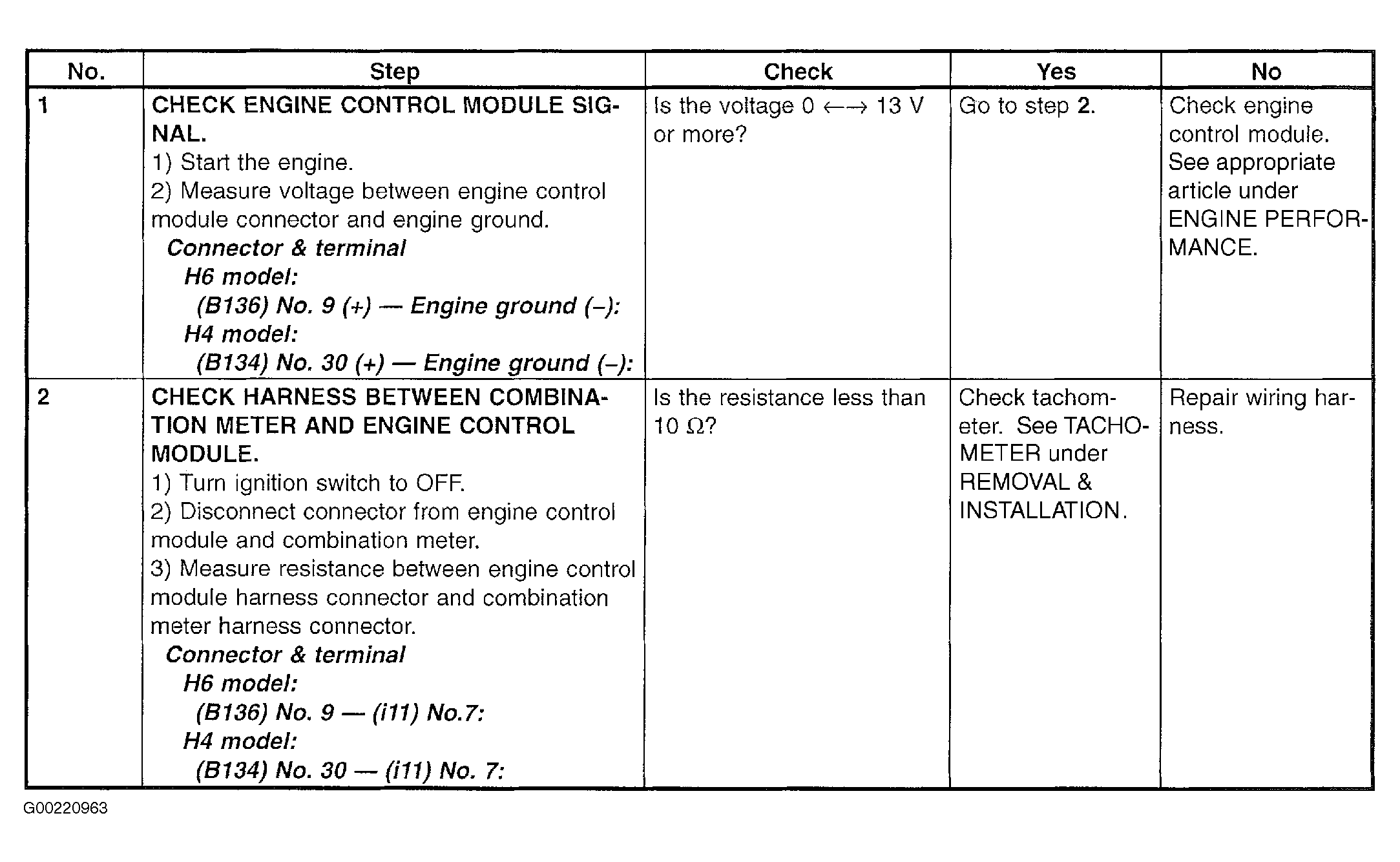

Fig 1: Testing Engine Control Module

Courtesy of SUBARU OF AMERICA, INC.
