Transmission Mounting

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

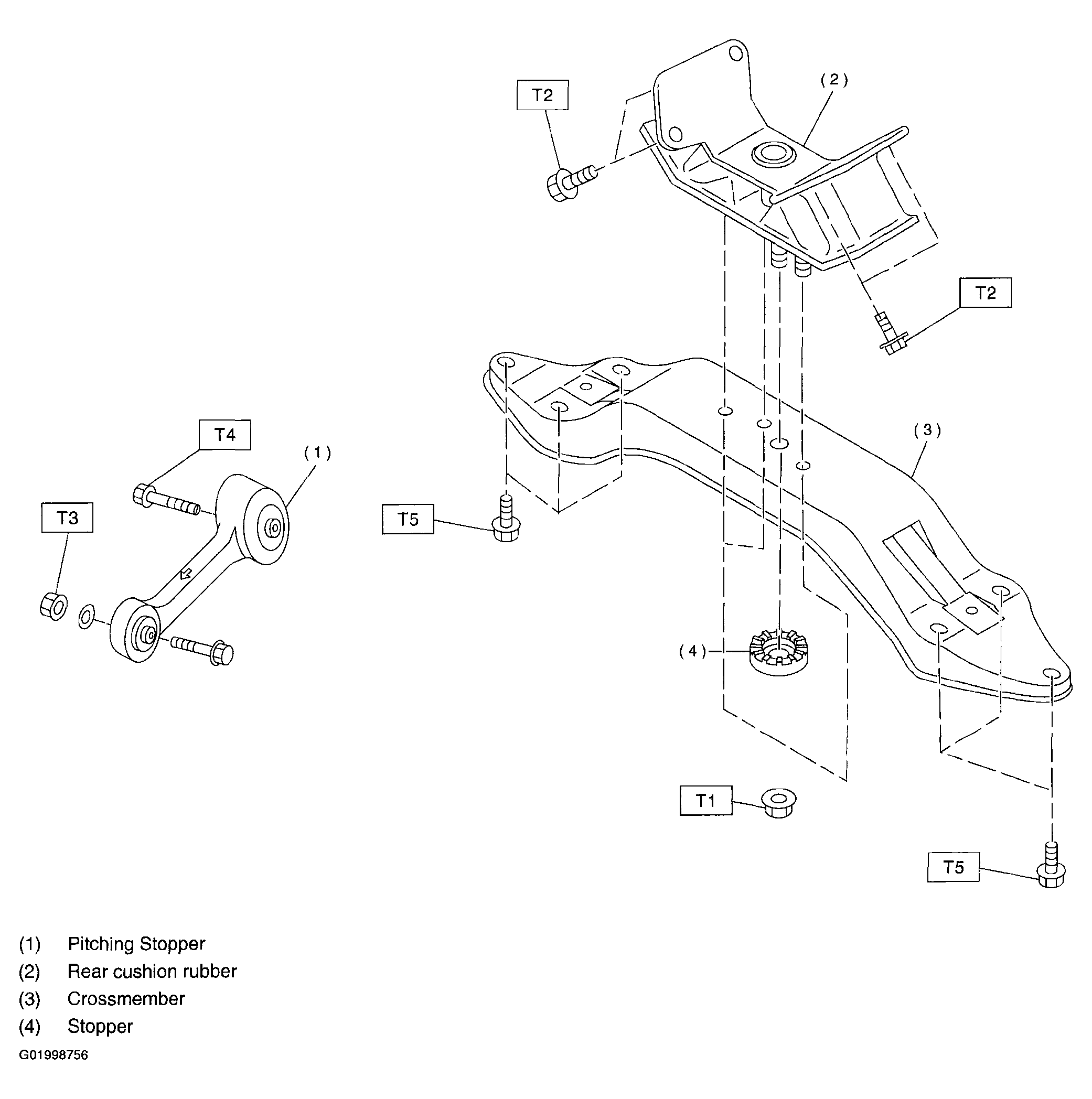

Fig 1: Identifying Transmission Mounting Components
G01998756Courtesy of SUBARU OF AMERICA, INC.

Tightening Torques: N.m (kgf-m, ft-lb)

  1. T1:  35 (3.6, 26)
  2. T2:  39 (4.0, 29)
  3. T3:  50 (5.1, 37)
  4. T4:  58 (5.9, 43)
  5. T5:  70 (7.1, 51)
