Section 78 (HVAC): Compressor: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Perform the compressor oil return operation. See OPERATION , Compressor Oil.
Turn A/C switch OFF and stop the engine.
Using refrigerant recovery system, discharge refrigerant. See OPERATION , Refrigerant Recovery Procedure.
Disconnect the ground terminal from battery.
Remove the V-belt. V-BELT (H4SO) or V-BELT (H4DOTC).
Remove the generator, see REMOVAL , Generator
Remove the low-pressure hose and high-pressure hose.

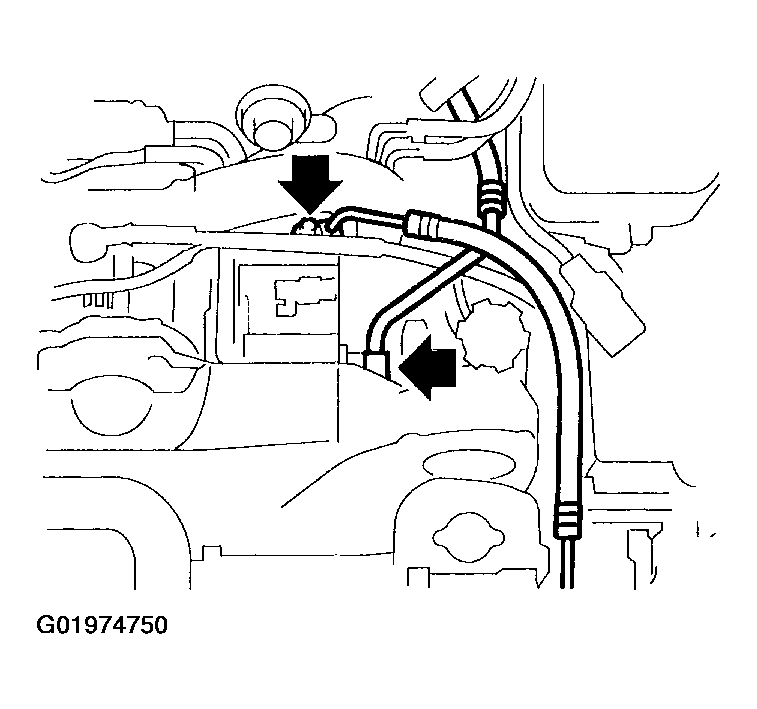

Fig 1: Removing Low-Pressure Hose & High-Pressure Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the compressor harness from body harness.
Loosen the bolts to remove compressor bracket.

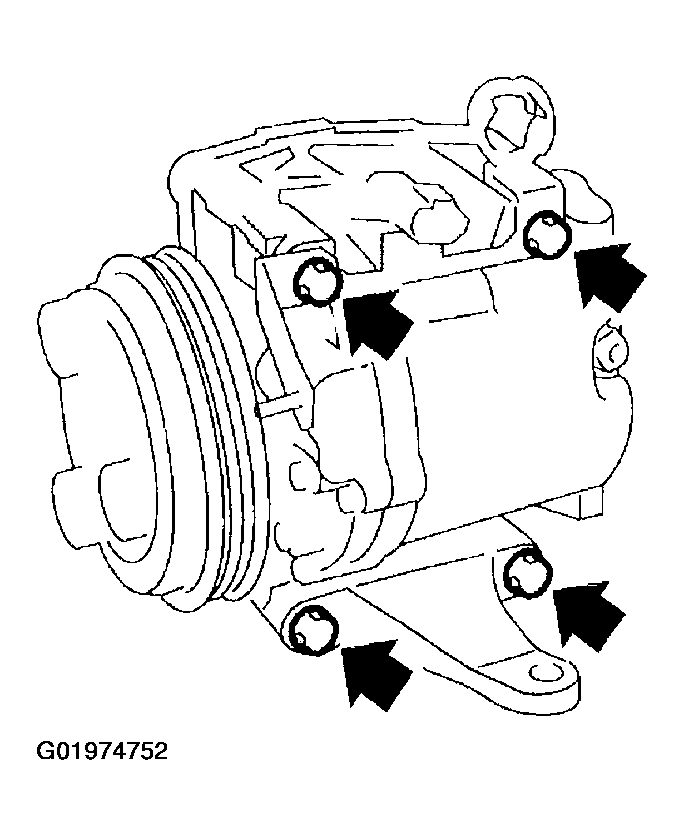

Fig 2: Loosening Bolts To Remove Compressor Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and then separate compressor and bracket.

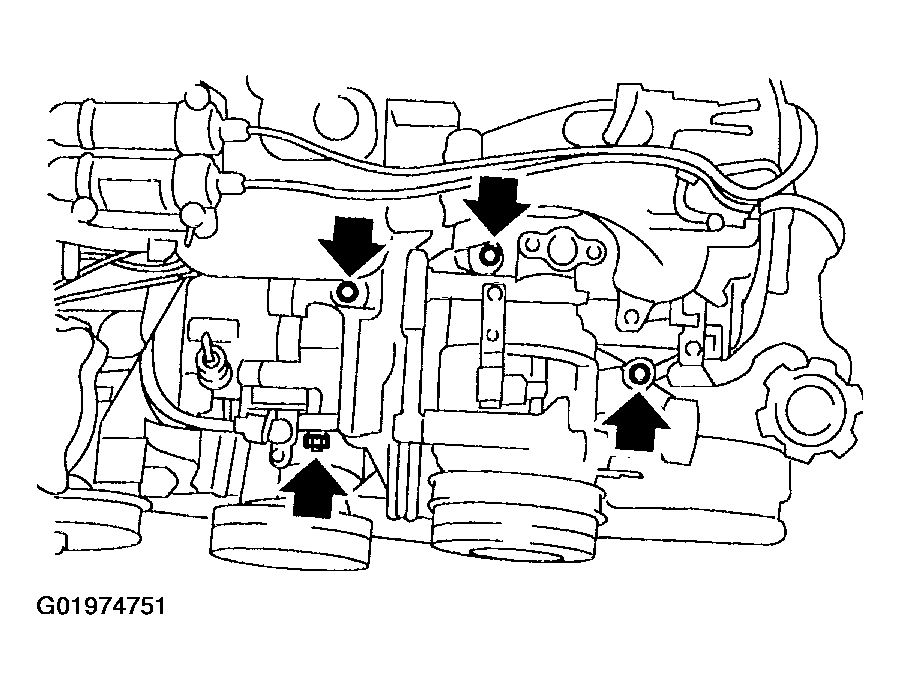

Fig 3: Removing Bolts & Separating Compressor & Bracket
Courtesy of SUBARU OF AMERICA, INC.
