Non-Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Drain engine coolant completely. See DRAINING OF ENGINE COOLANT , Replacement, Engine Coolant.
Disconnect the connectors of radiator main fan (A) and sub fan (B) motor.

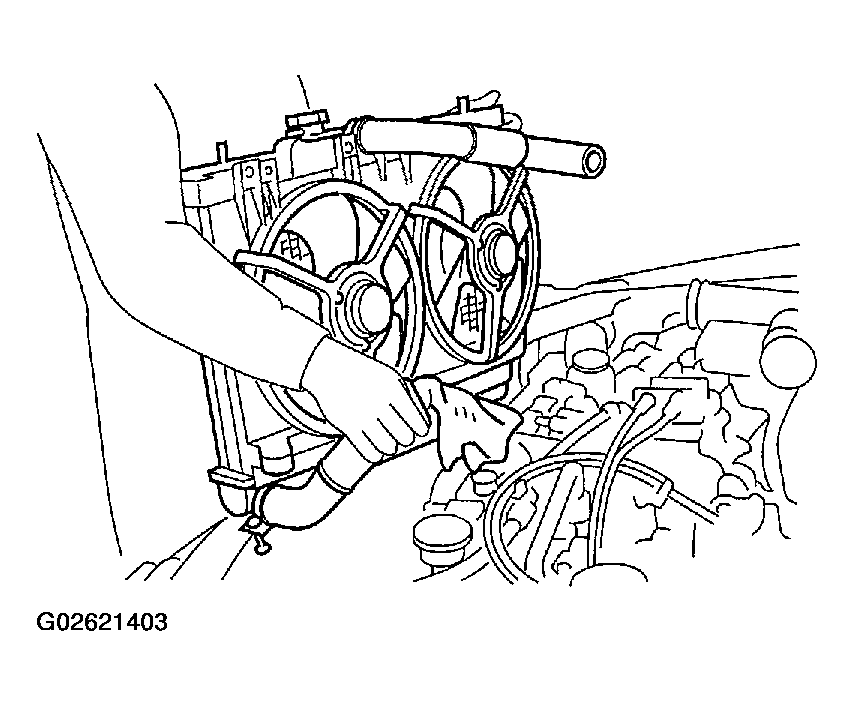

Fig 2: Disconnecting Connector Of Radiator Main Fan
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Disconnecting Connector Of Radiator Sub Fan
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator outlet hose (A) from thermostat cover.
Disconnect the ATF cooler hoses (B) from the radiator. (AT vehicles only)

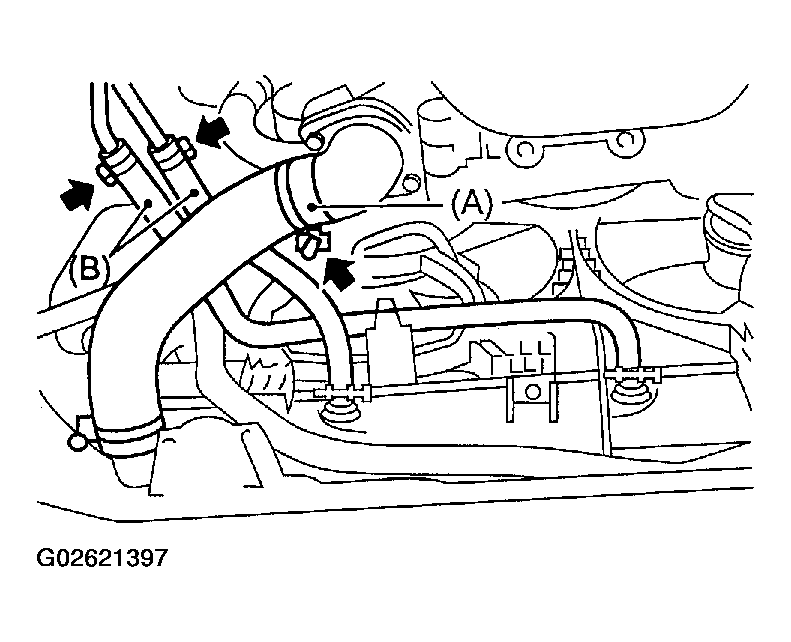

Fig 4: Disconnecting Radiator Outlet Hose From Thermostat Cover
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Disconnect the over flow hose.

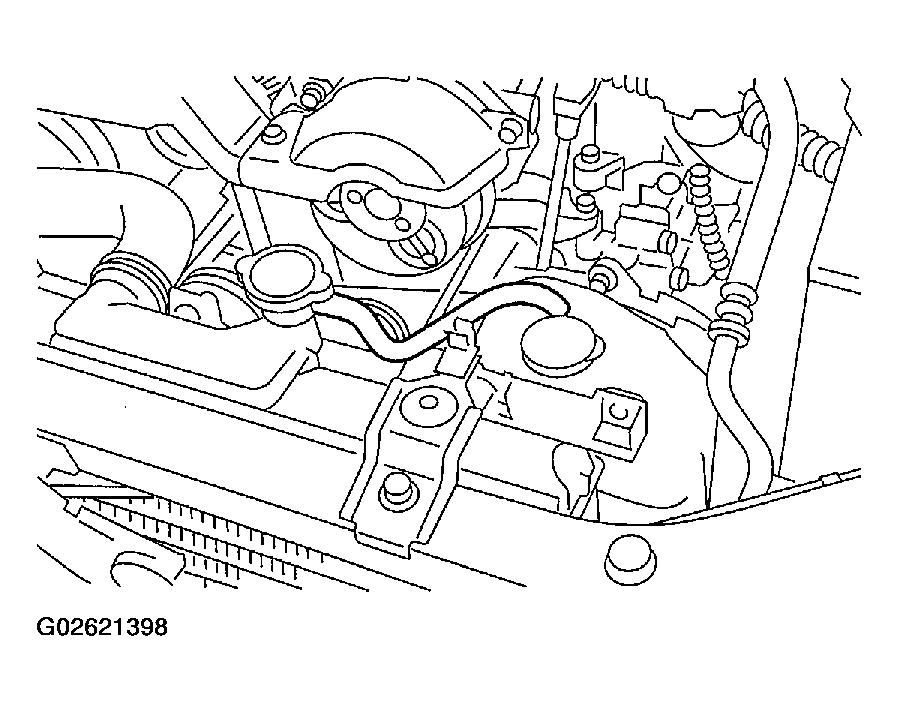

Fig 5: Disconnecting Over Flow Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the reservoir tank.

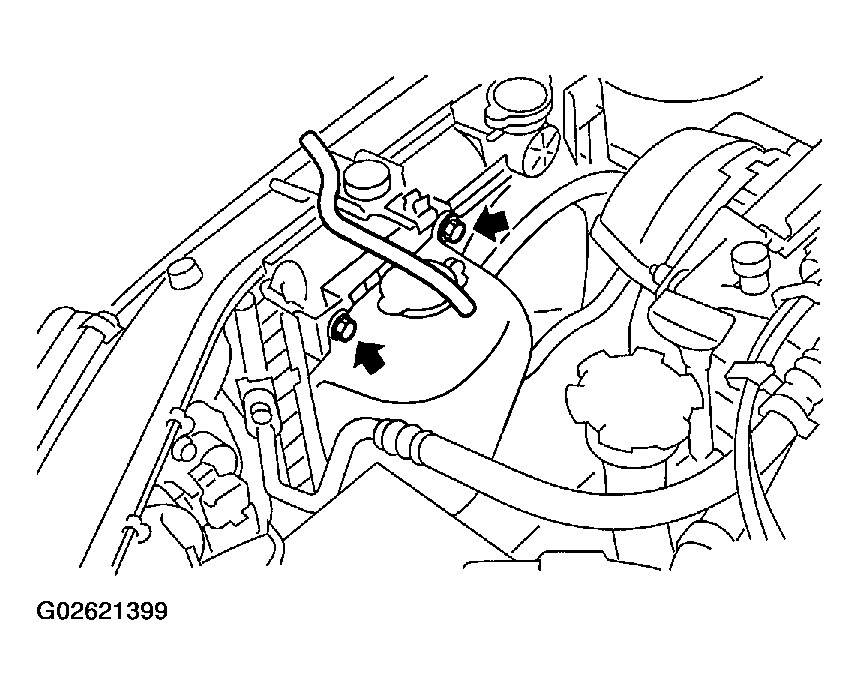

Fig 6: Removing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator inlet hose from the engine.

Fig 7: Disconnecting Radiator Inlet Hose From Engine
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator upper brackets.

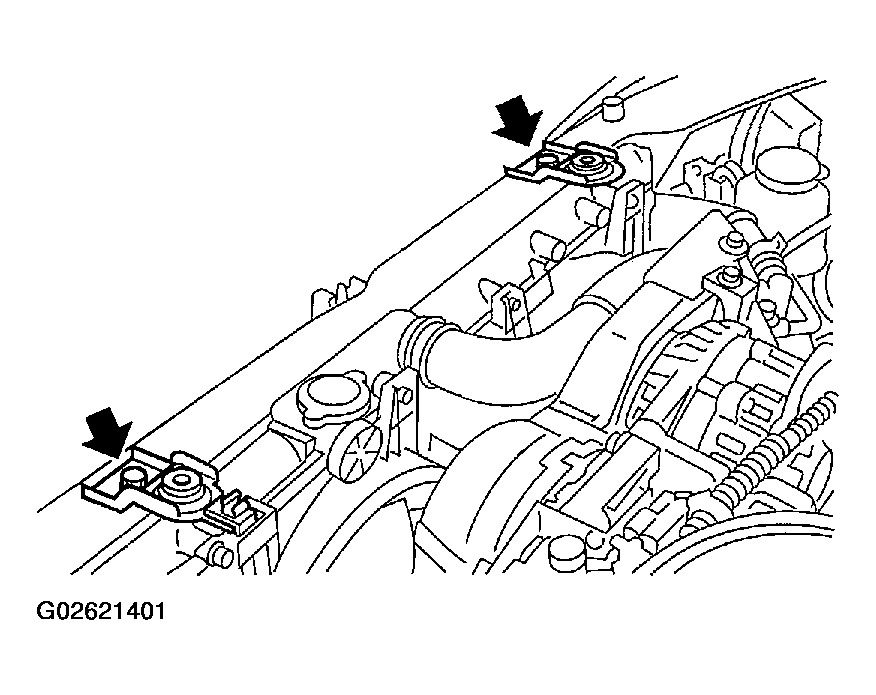

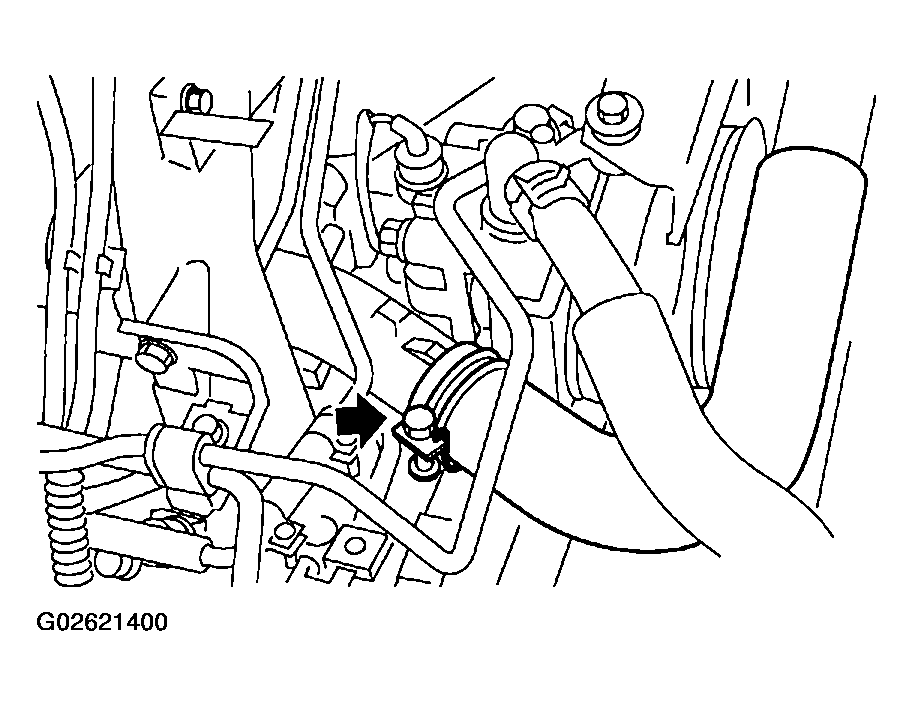

Fig 8: Removing Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
Detach the power steering hose from the clip on the radiator.

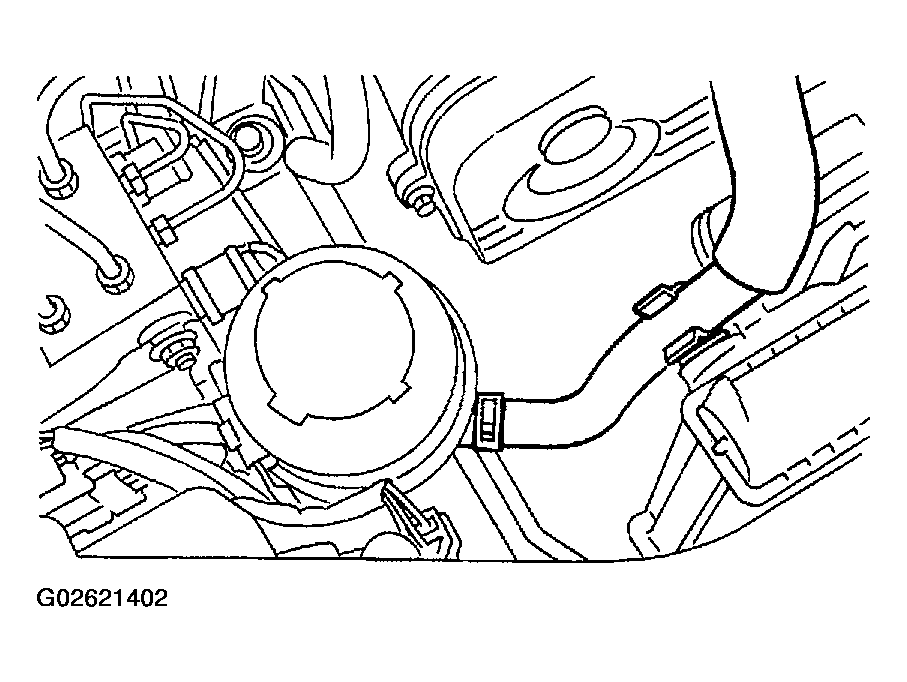

Fig 9: Detaching Power Steering Hose From Clip On Radiator
Courtesy of SUBARU OF AMERICA, INC.
While slightly lifting radiator, slide it to left.
Lift the radiator up and away from the vehicle.

Fig 10: Lifting Radiator Up & Away From Vehicle
Courtesy of SUBARU OF AMERICA, INC.
