Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The radiator is pressurized. Wait until engine cools down before working on the radiator.

Set the vehicle on the lift.
Disconnect the battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Drain the engine coolant completely. See DRAINING OF ENGINE COOLANT , Replacement, Engine Coolant.
Remove the radiator under cover. (AT vehicles only)

Fig 2: Removing Radiator Under Cover (AT Vehicles Only)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors of radiator main fan (A) and sub fan motor (B).

Fig 3: Disconnecting Connectors Of Radiator Main Fan
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Disconnecting Connectors Of Radiator Sub Fan
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ATF cooler hoses from the radiator. (AT vehicles only)

Fig 5: Disconnecting ATF Cooler Hoses From Radiator (AT Vehicles Only)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator outlet hose from the thermostat cover.

Fig 6: Disconnecting Radiator Outlet Hose From Thermostat Cover
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the air intake duct.

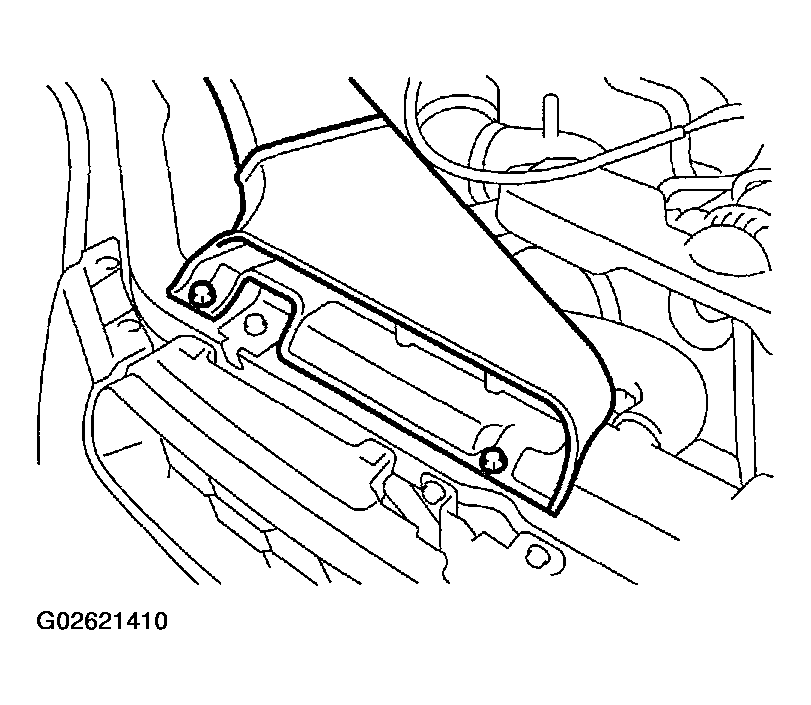

Fig 7: Removing Air Intake Duct
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the over flow hose.
Remove the reservoir tank.

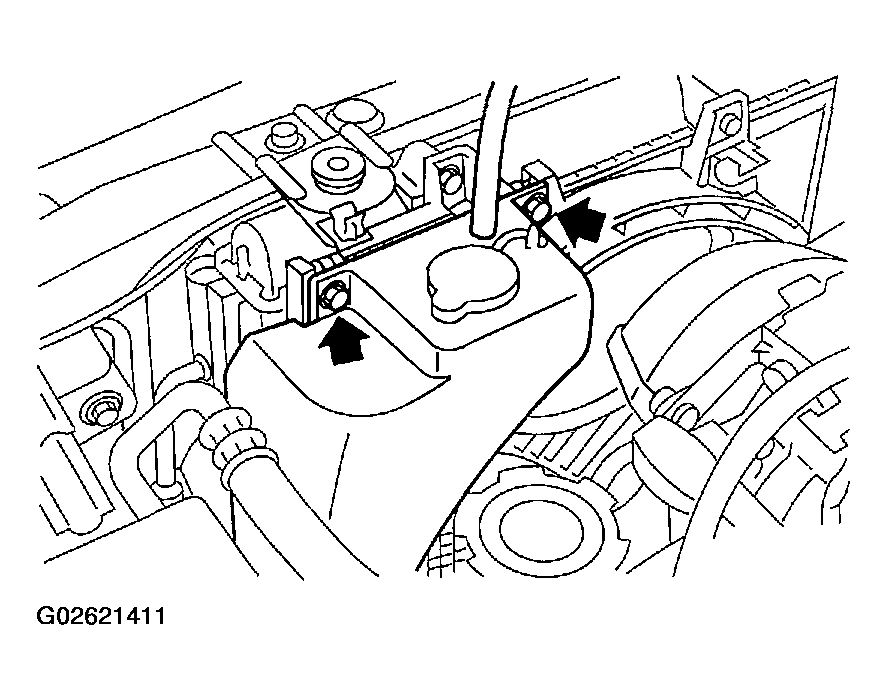

Fig 8: Removing Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belt covers.

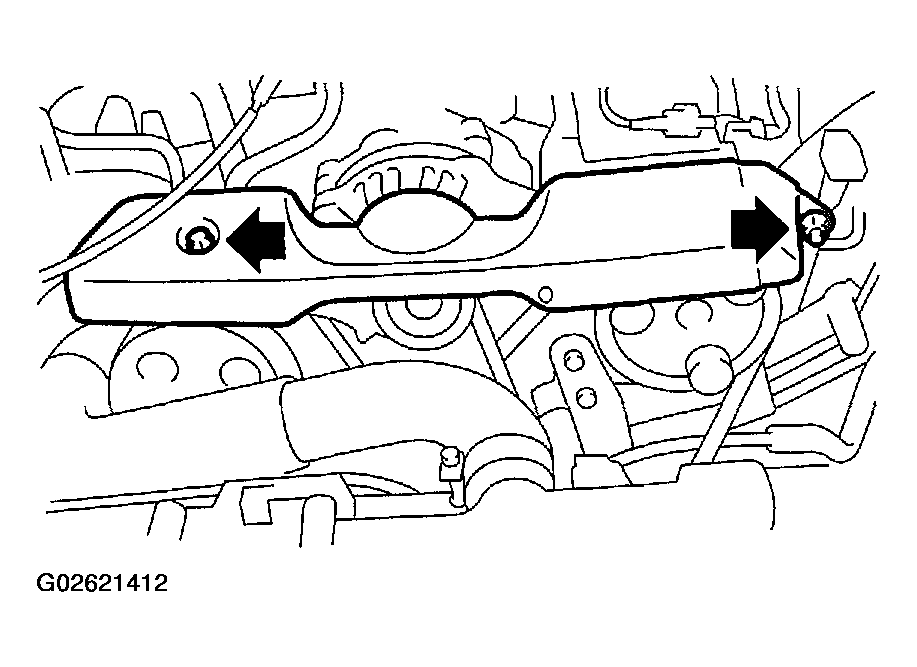

Fig 9: Removing V-Belt Covers
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator inlet hose (A) and coolant filler tank hose (B) from the radiator.

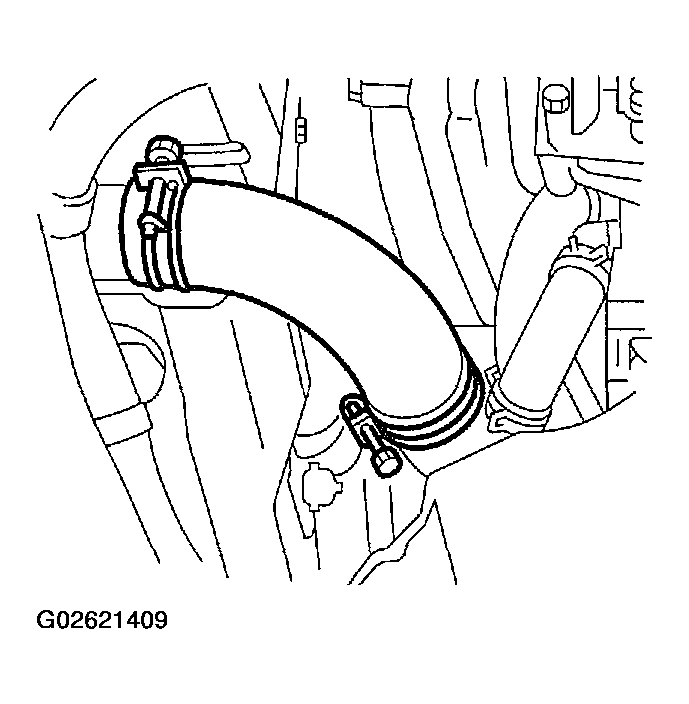

Fig 10: Disconnecting Inlet Hose From Radiator
Courtesy of SUBARU OF AMERICA, INC.

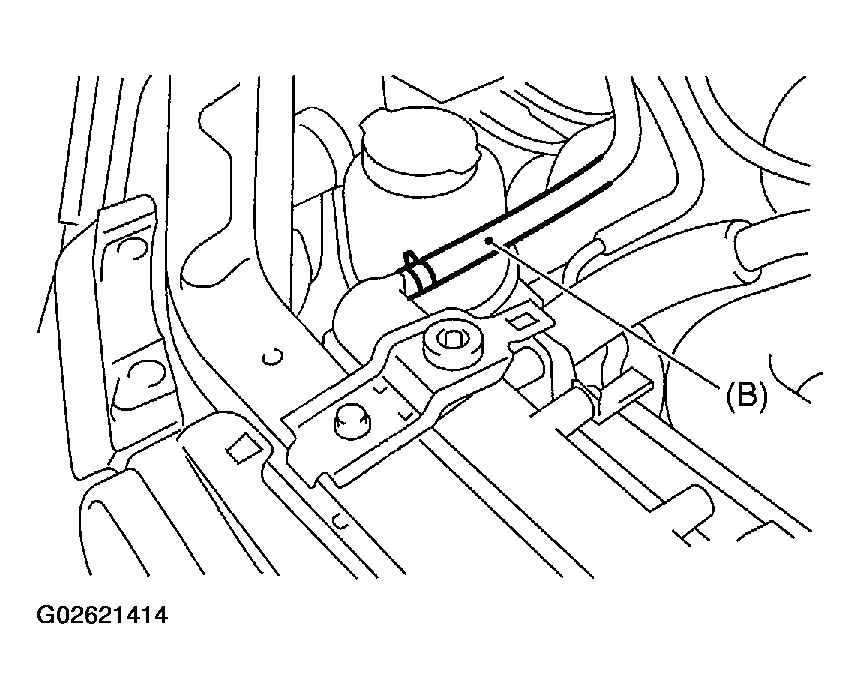

Fig 11: Disconnecting Coolant Filler Tank Hose From Radiator
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator upper brackets.

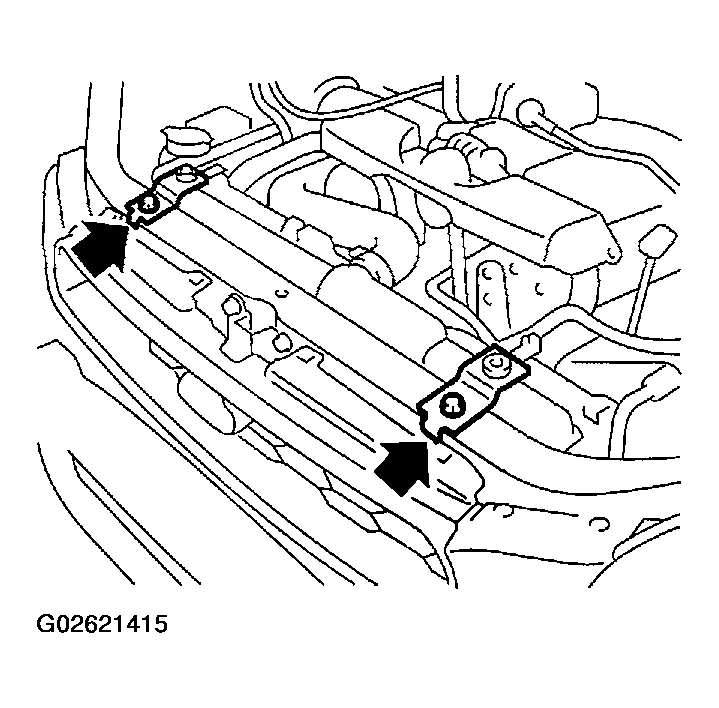

Fig 12: Removing Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
While slightly lifting radiator, slide it to left.
Lift the radiator up and away from the vehicle.
