Section 85 (Engine Lubrication System): General Description: Specifications

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

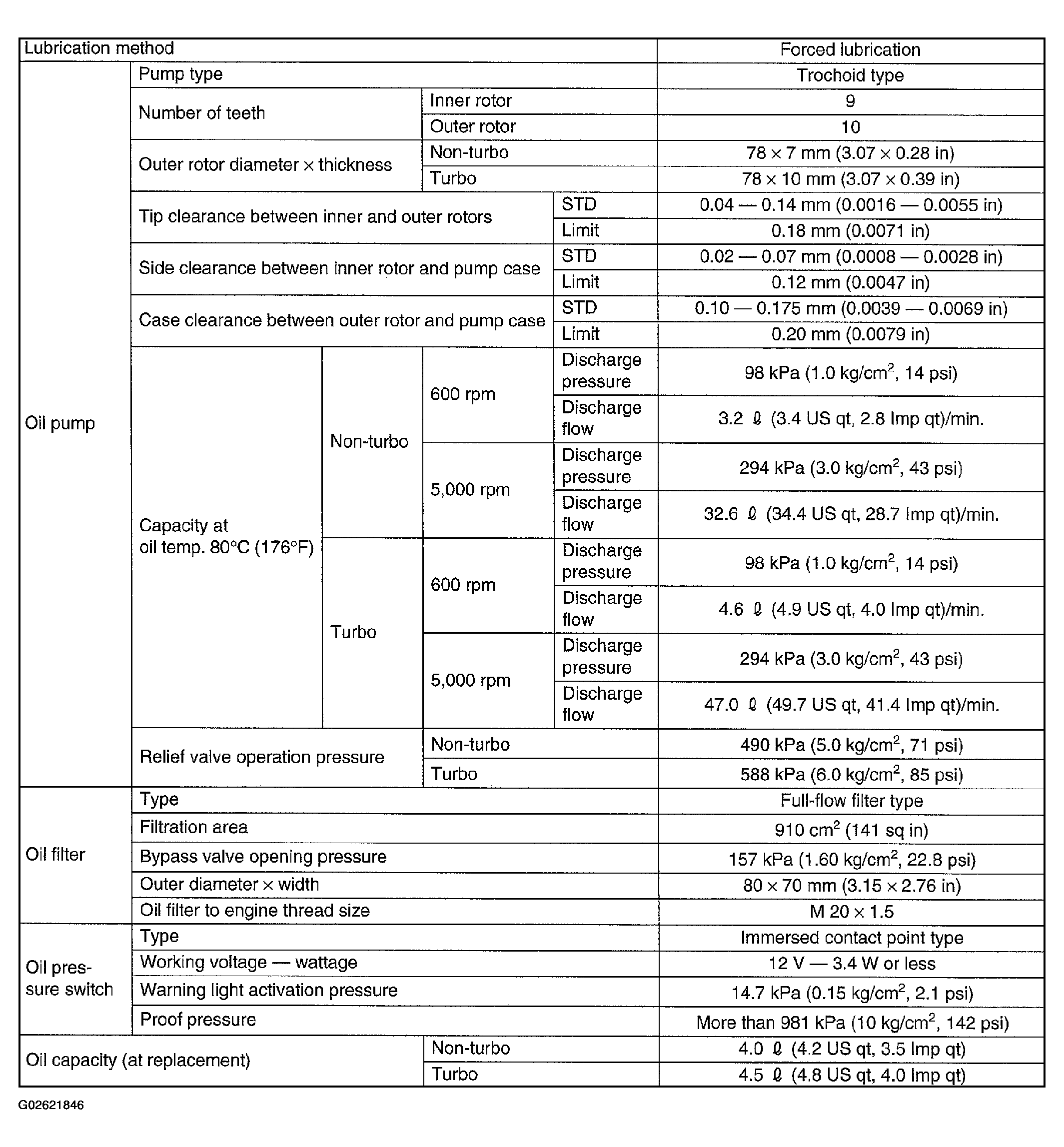

Fig 1: Lubrication System Specifications

Courtesy of SUBARU OF AMERICA, INC.
