Oil Pressure Switch: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:
1. Part No. 004403007
2. Three Bond 1324 or equivalent

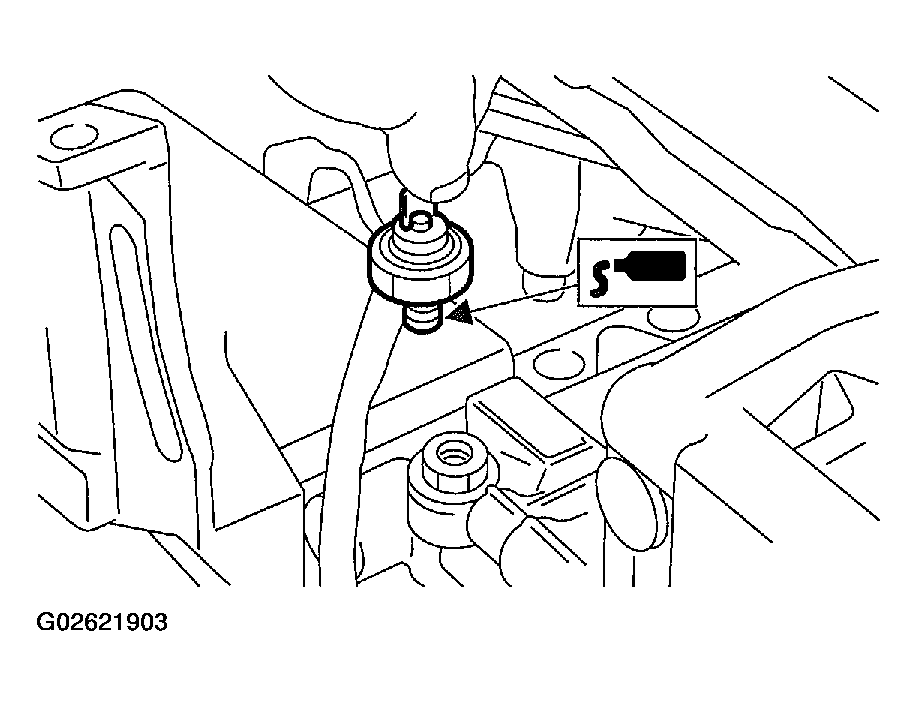

  Fig 1: Applying Liquid Gasket To Oil Pressure Switch Threads
  Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch onto engine block.
1. Tightening torque: 25 N.m (2.5 kgf.m, 18.1 ft.lb)

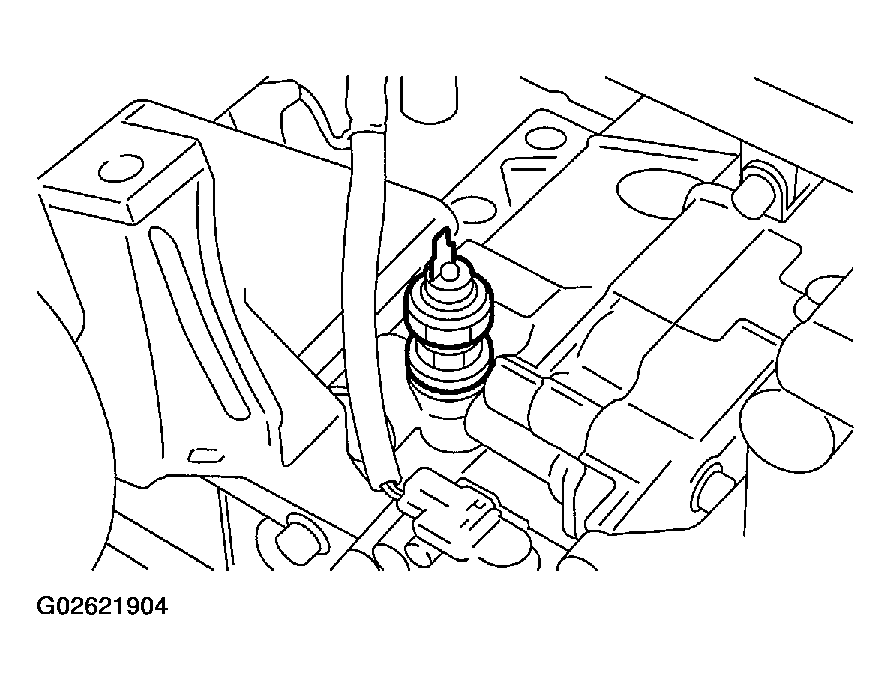

Fig 2: Installing Oil Pressure Switch Onto Engine Block
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal of oil pressure switch.

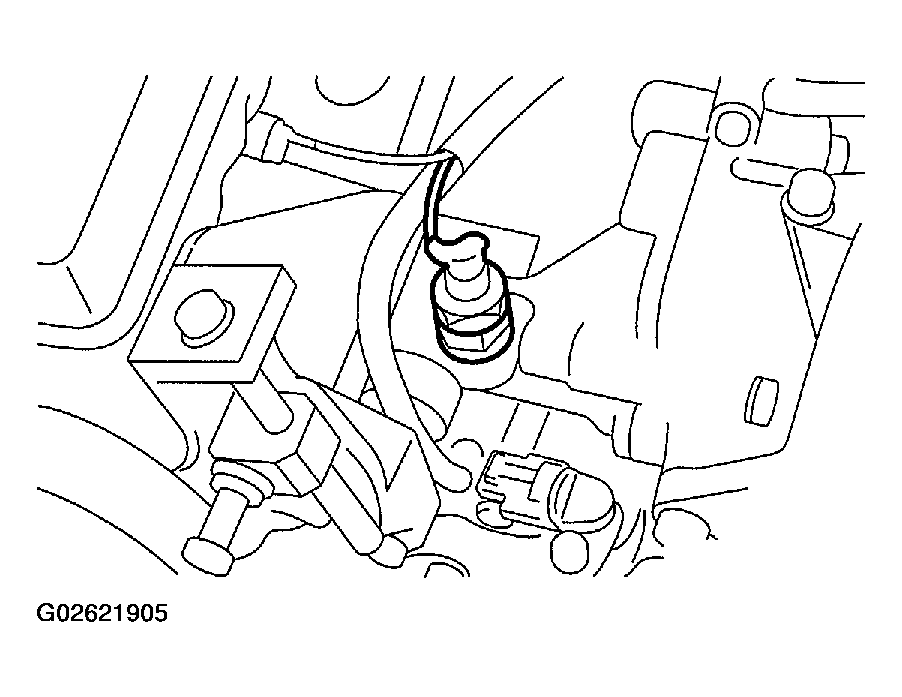

Fig 3: Connecting Terminal Of Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Install the generator on bracket, see INSTALLATION , Generator.
