Front Differential Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove right and left snap rings from differential, and then remove two axle drive shafts.
NOTE: During reassembly, reinstall each axle drive shaft in the same place from which it was removed.
Loosen twelve bolts and remove hypoid driven gear.

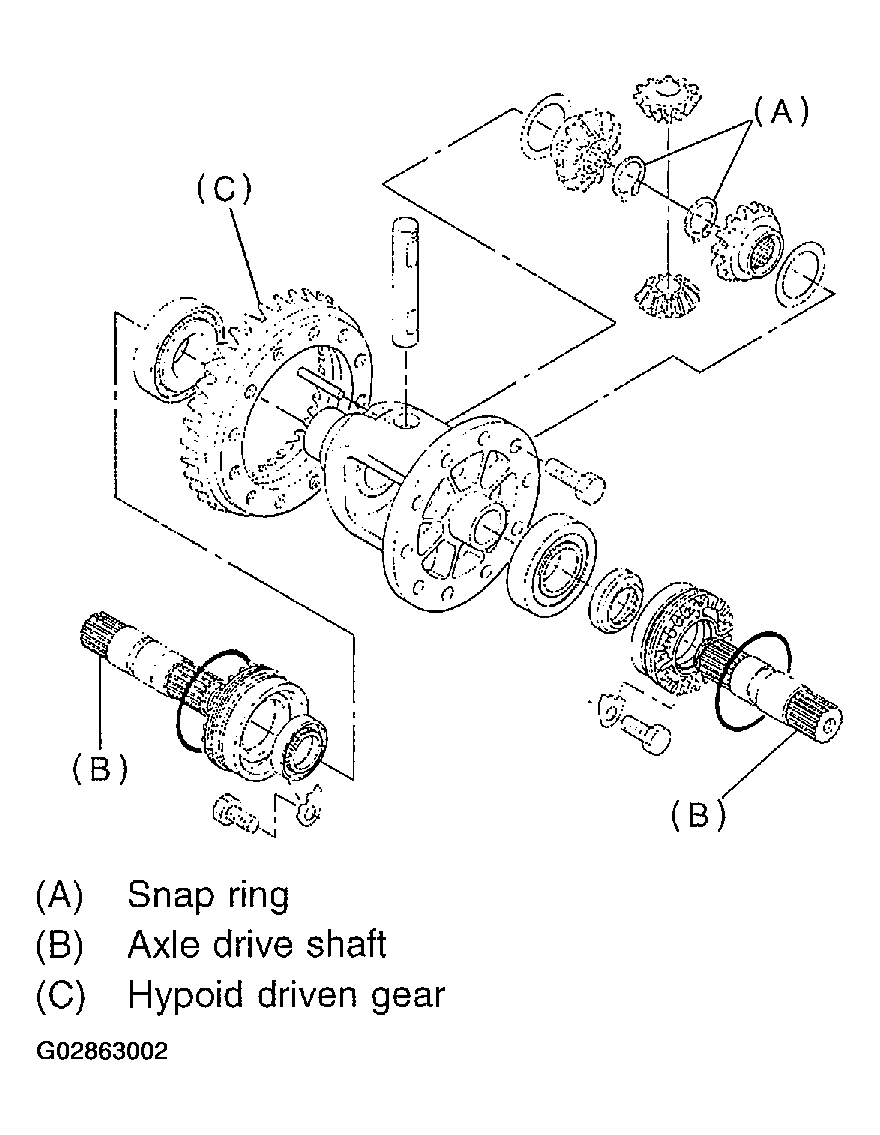

Fig 1: Removing Hypoid Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Drive out straight pin from differential assembly toward hypoid driven gear.
ST 899904100: REMOVER

Fig 2: Removing Straight Pin From Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.
Pull out pinion shaft, and remove differential bevel pinion and gear and washer.

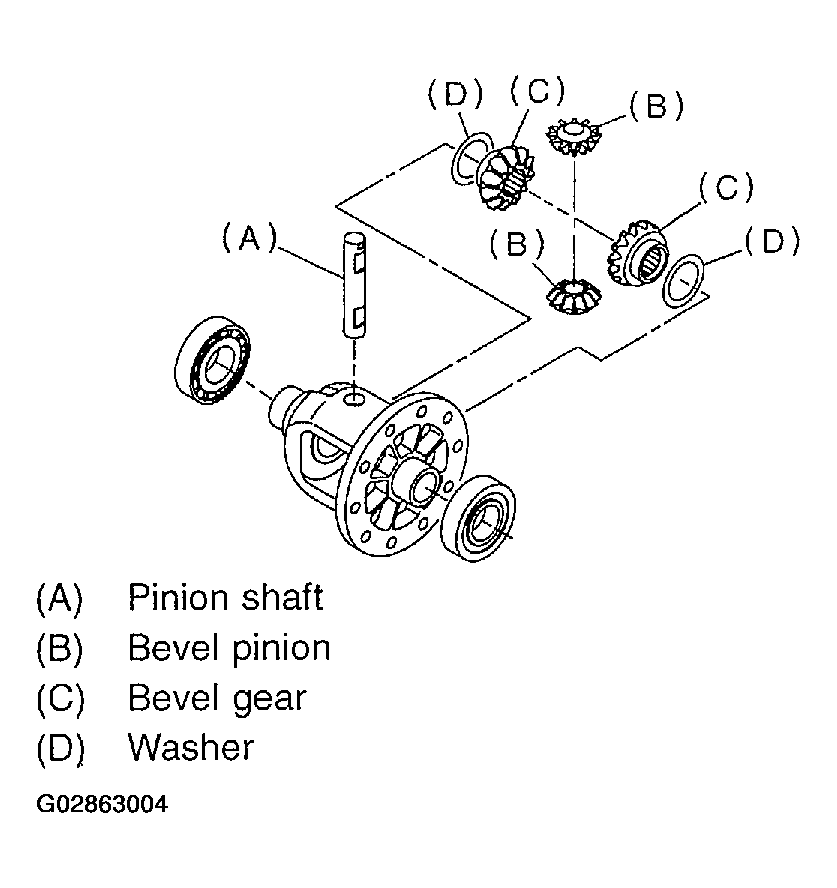

Fig 3: Pulling Out Pinion Shaft And Differential Bevel Pinion And Gear And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove roller bearing using ST.
ST 399527700: PULLER SET

Fig 4: Removing Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.
