Output Signals

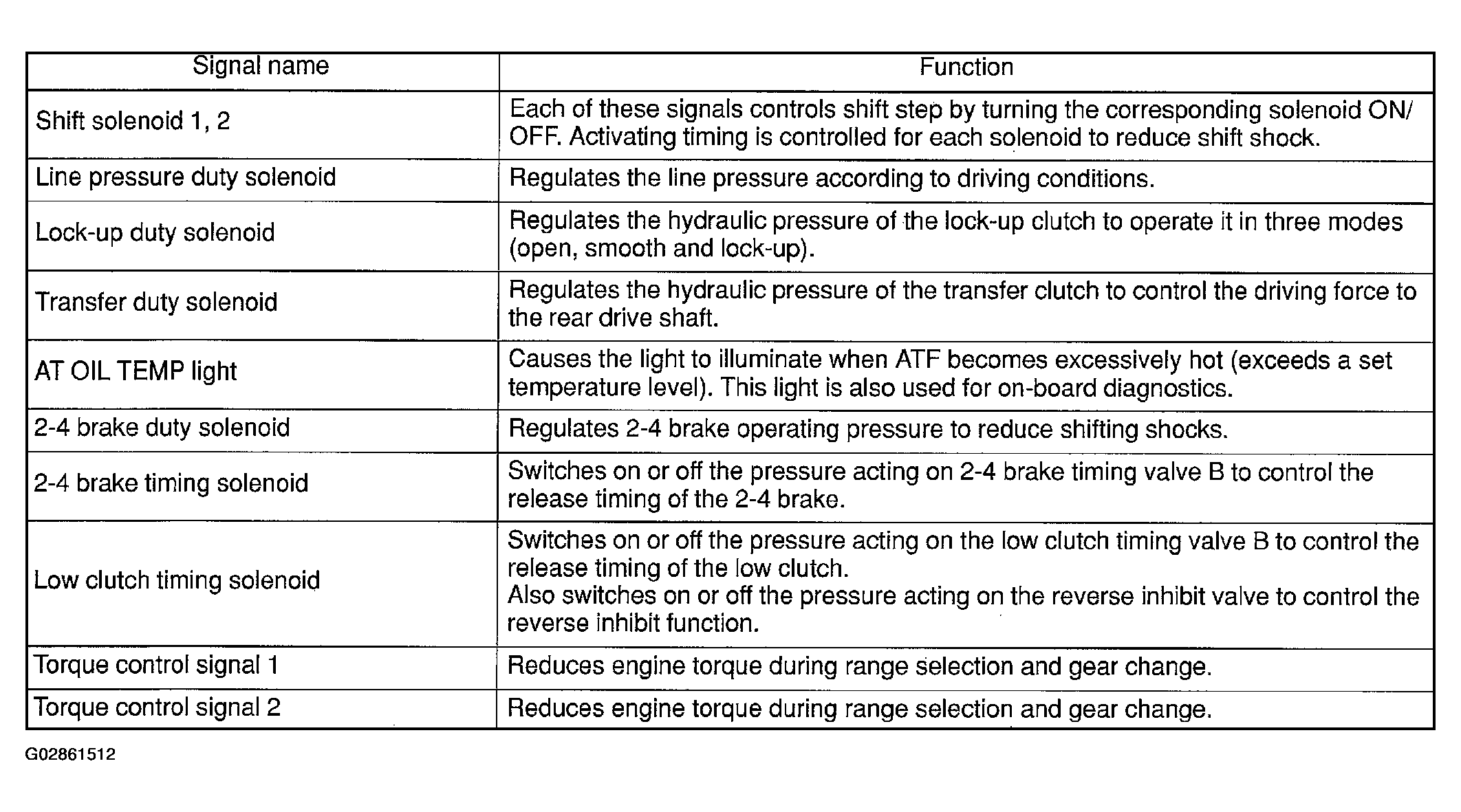

Fig 1: Electrohydraulic Control System Output Signals Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
