Automatic Transmission (Mechanism & Function)
>>
Transmission Control Module (TCM)
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

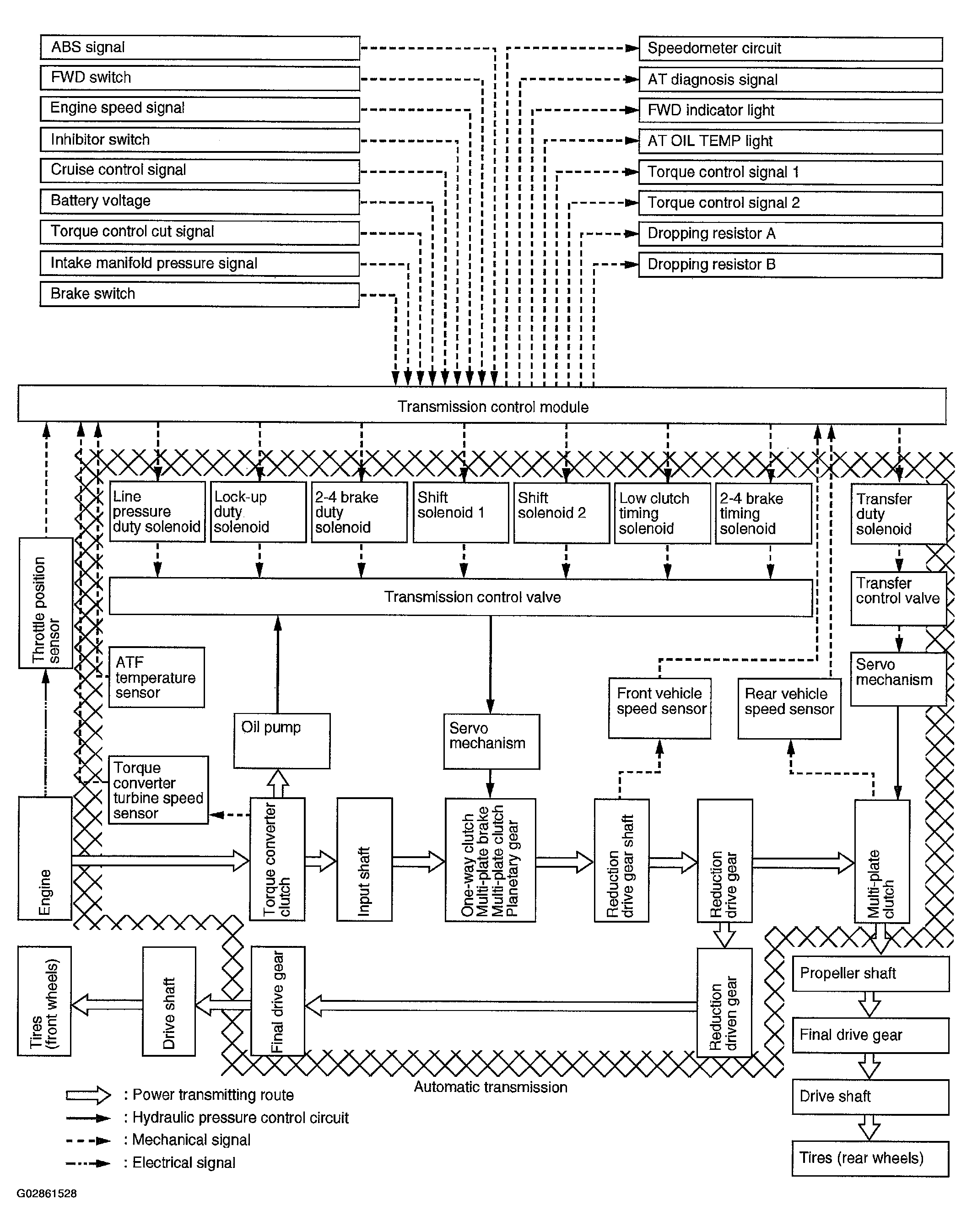

Fig 1: Transmission Control Module, System Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
