Control Valve Body: Removal

Lift-up the vehicle.
Clean transmission exterior.
Drain ATF completely.
NOTE: Tighten ATF drain plug after draining ATF.

Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

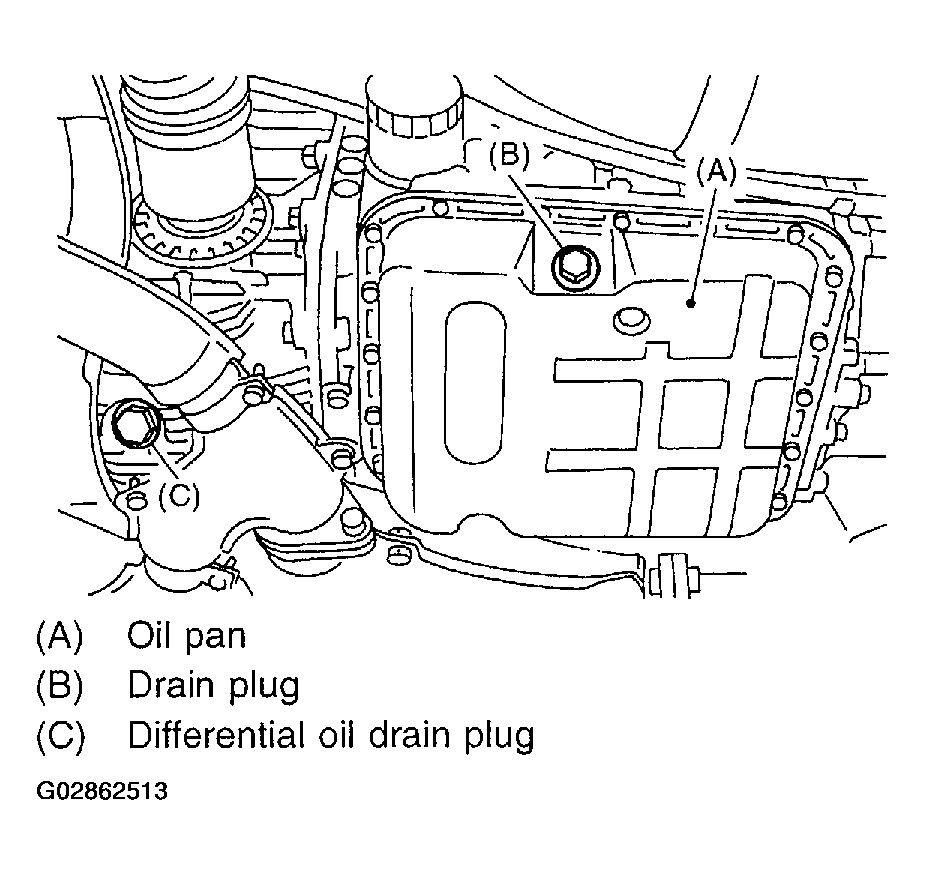

Fig 1: Tightening ATF Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pan.
NOTE:
- Remove and clean the magnet.
- Remove the old gasket on the oil pan and transmission case completely.
Disconnect duty solenoids and ATF temperature sensor connectors. Remove connectors from clip and disconnect connectors.

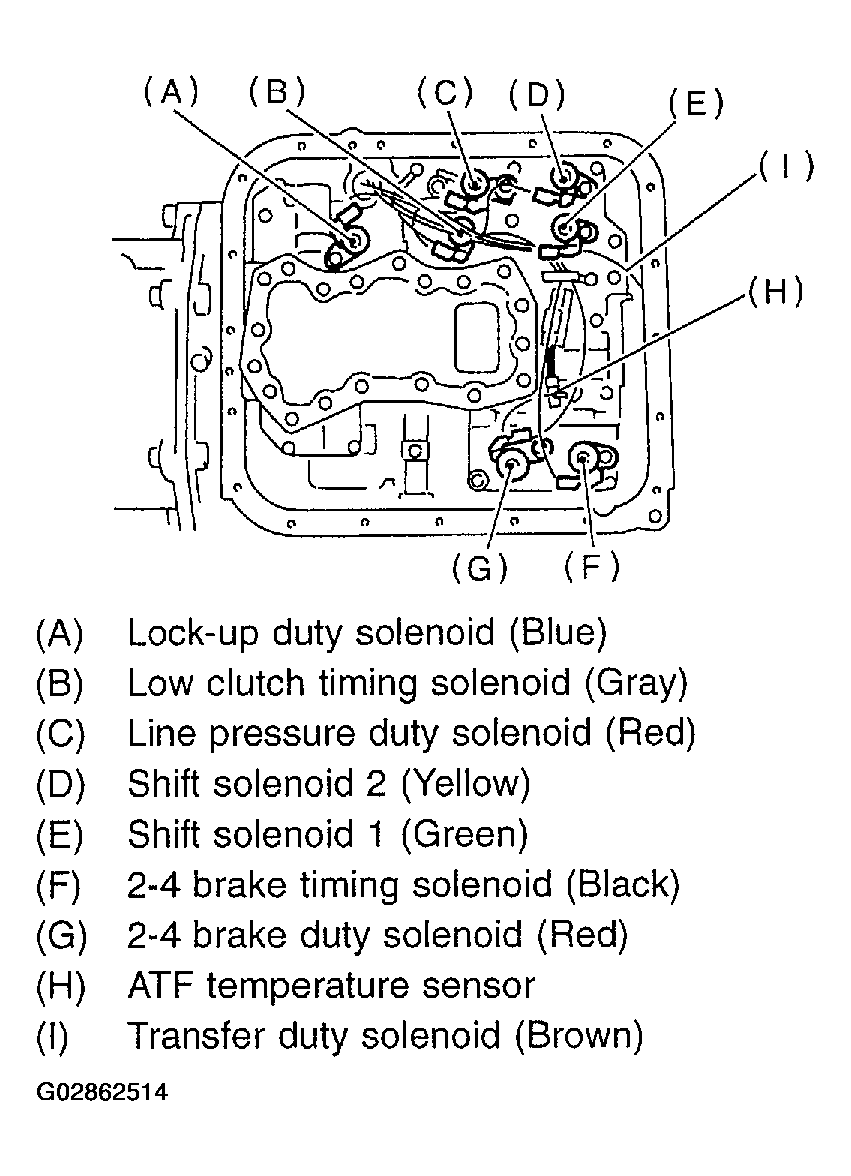

Fig 2: Disconnecting Duty Solenoids And ATF Temperature Sensor Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the control valve. When removing control valve body, be careful not to interfere with transfer duty solenoid wiring

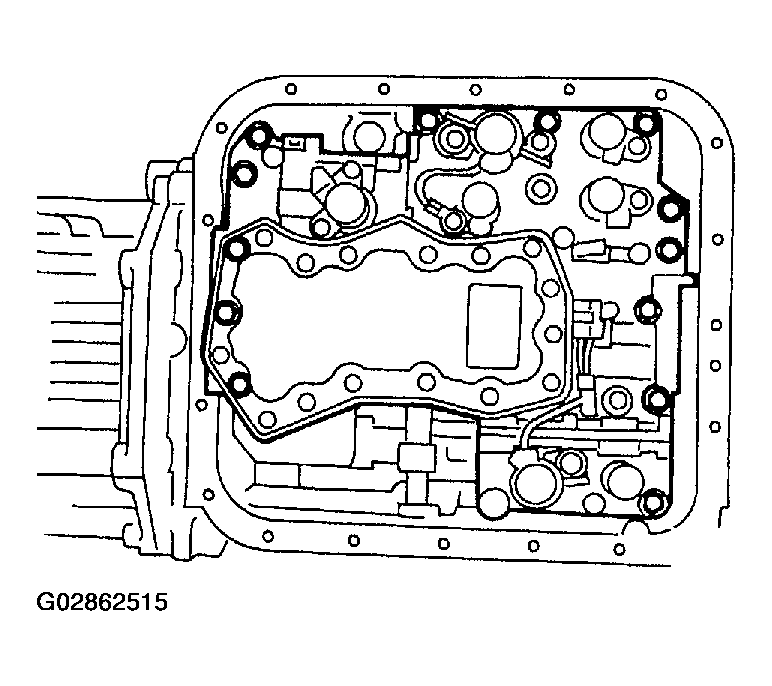

Fig 3: Removing Control Valve
Courtesy of SUBARU OF AMERICA, INC.
