Dropping Resistor: Inspection

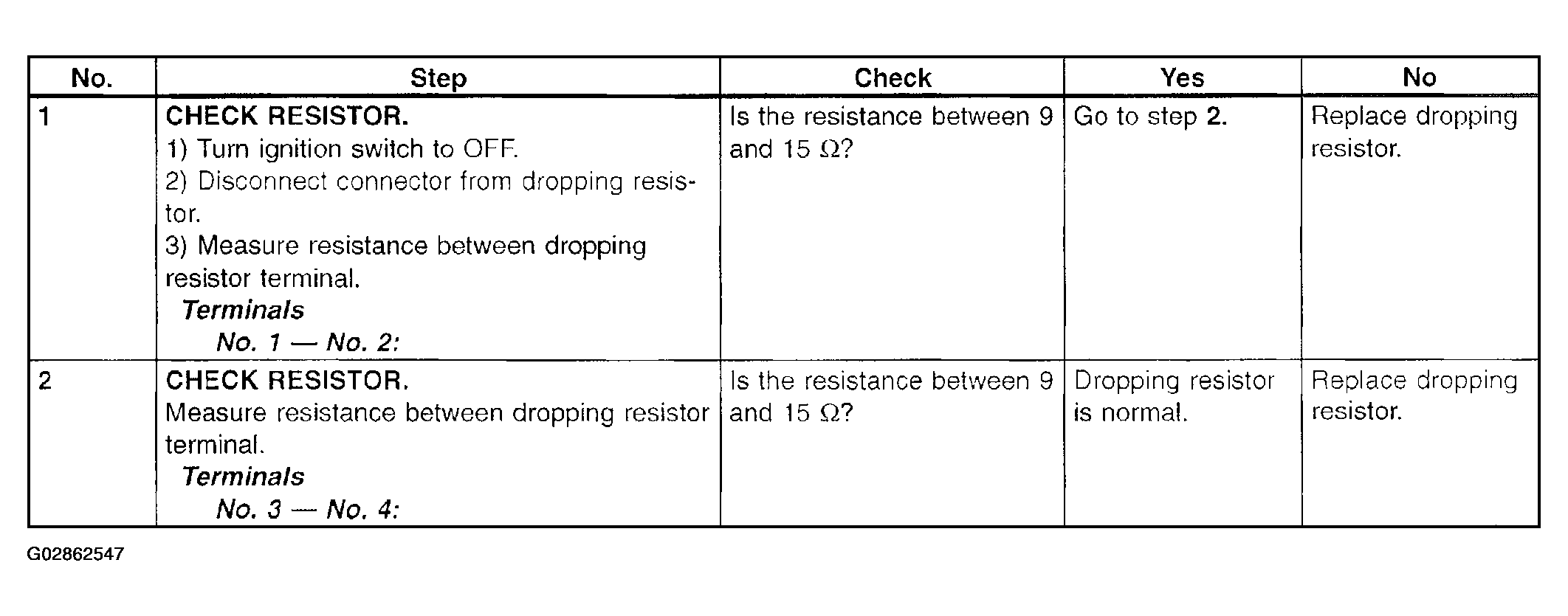

Fig 1: Dropping Resistor Inspection Procedure Chart

G02862547

Courtesy of SUBARU OF AMERICA, INC.
