Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature Sensor / REMOVAL

1. Disconnect battery ground cable.
2. Remove air intake duct and air cleaner assembly.

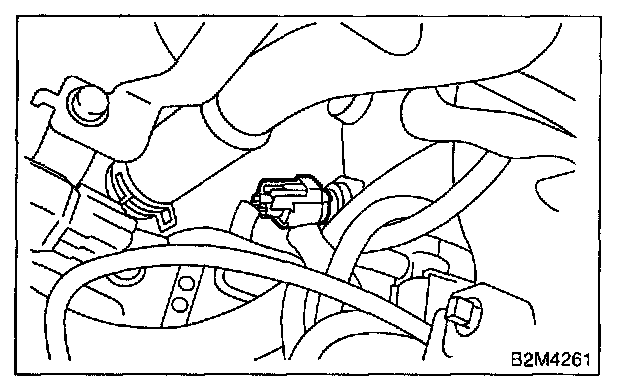

3. Disconnect connector from engine coolant temperature sensor.

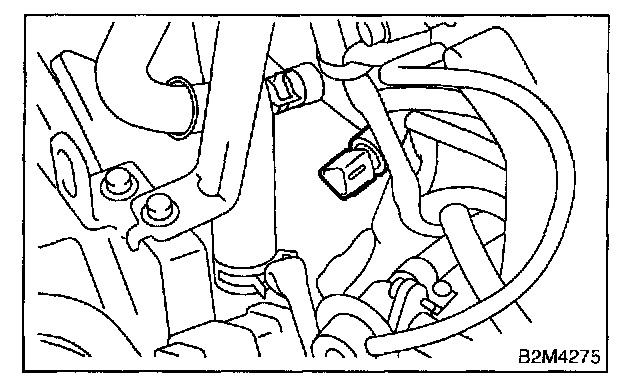

4. Remove engine coolant temperature sensor.

INSTALLATION
Install in the reverse order of removal.

Tightening Torque: 18 N.m (1.8 kgf-m, 13 ft-lb)
