Main Relay (Computer/Fuel System): Service and Repair

MAIN RELAY / REMOVAL

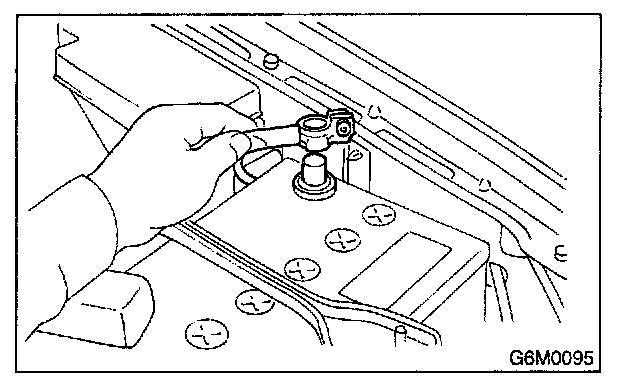

1. Disconnect battery ground cable.

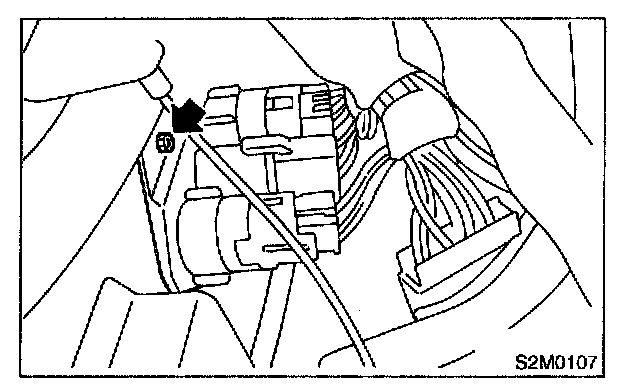

2. Remove bolt which holds bracket of main relay and fuel pump relay.

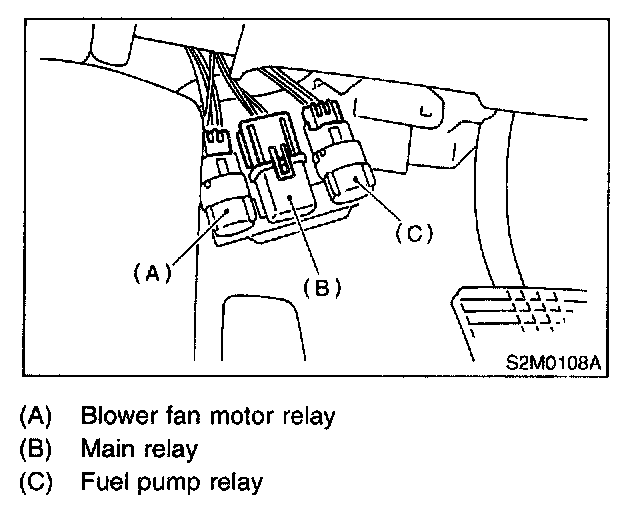

3. Disconnect connectors from relays.

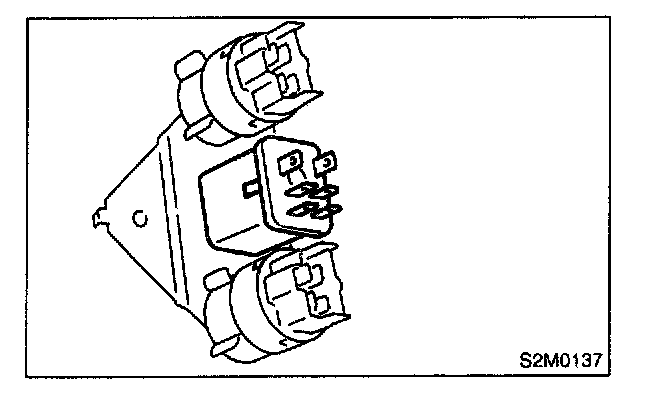

4. Remove main relay from mounting bracket.


INSTALLATION
Install in the reverse order of removal.
