Control Module Power Supply and Ground Line

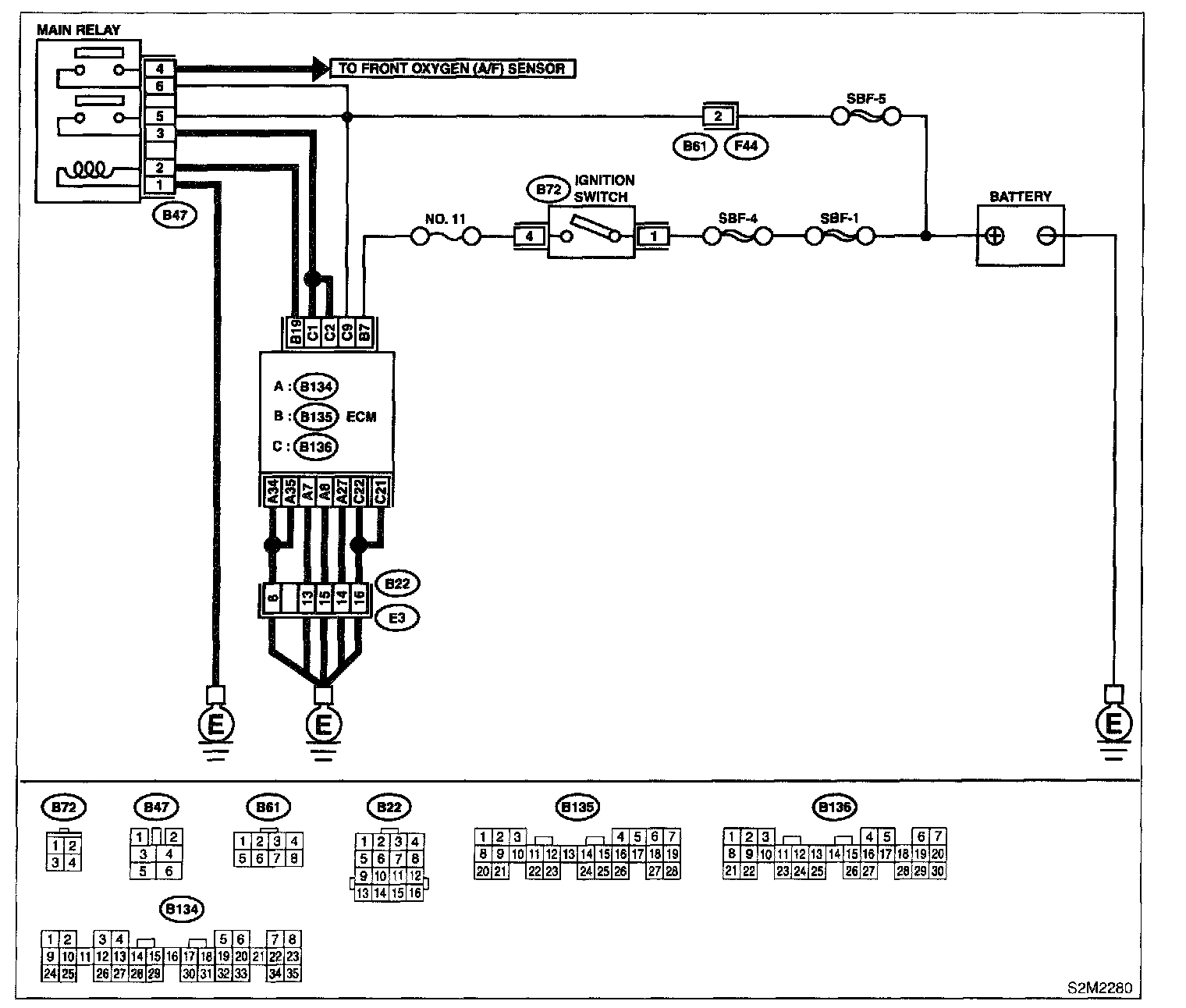

Wiring Diagram:

Step 1:

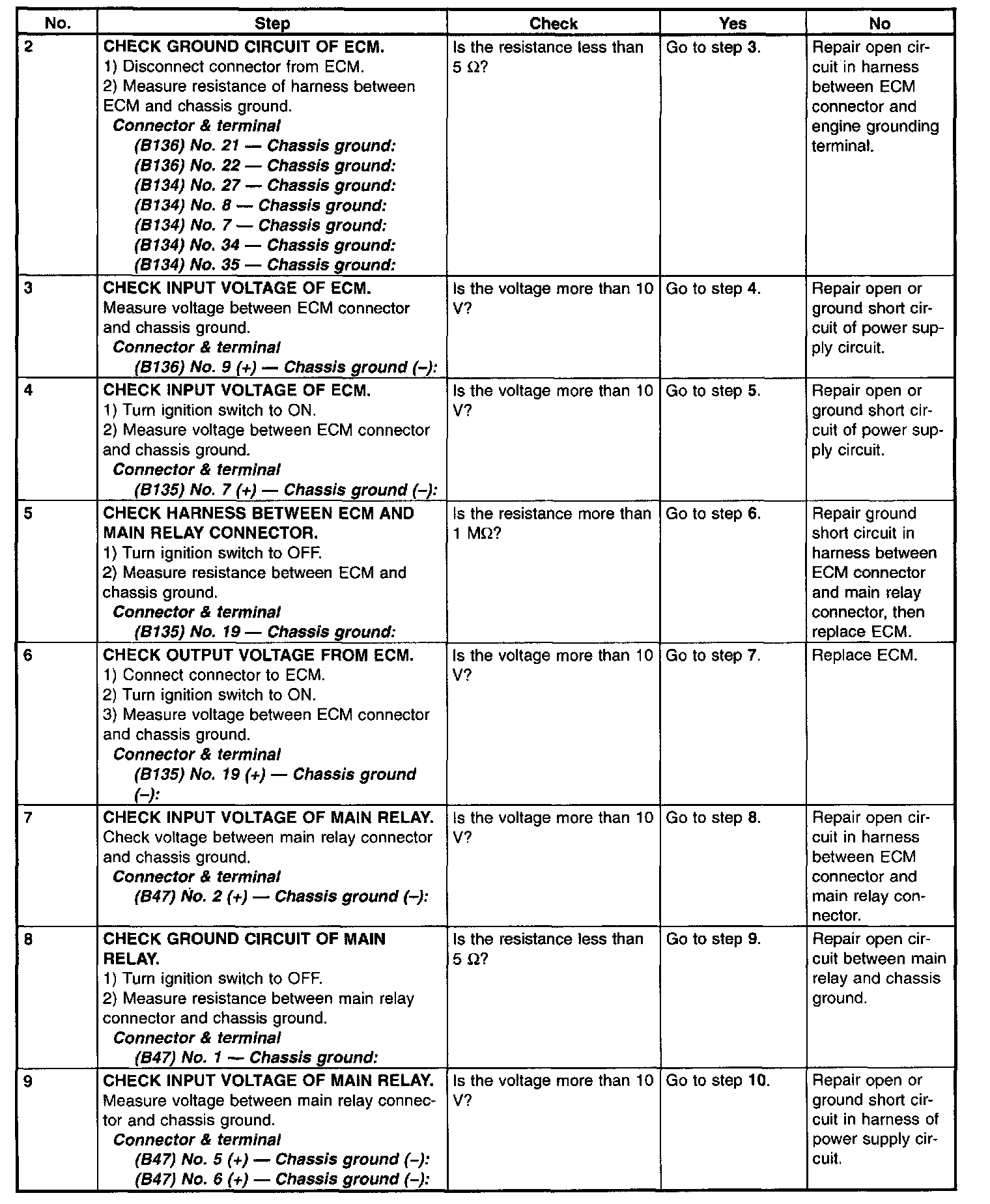

Step 2 - 9:

Step 10:

CONTROL MODULE POWER SUPPLY AND GROUND LINE

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
