Control Module: Service and Repair

A: REMOVAL

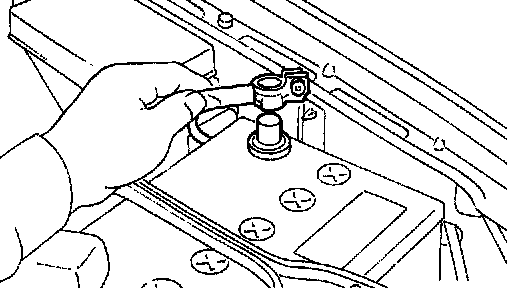

1. Disconnect battery ground cable.

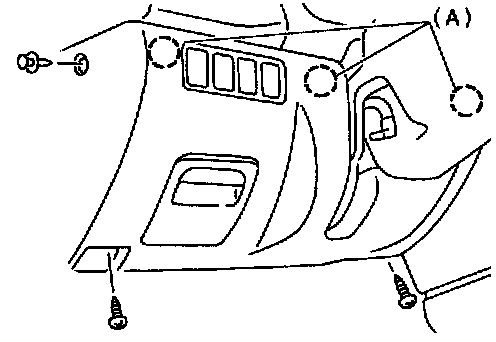

2. Remove lower cover and then disconnect connector.

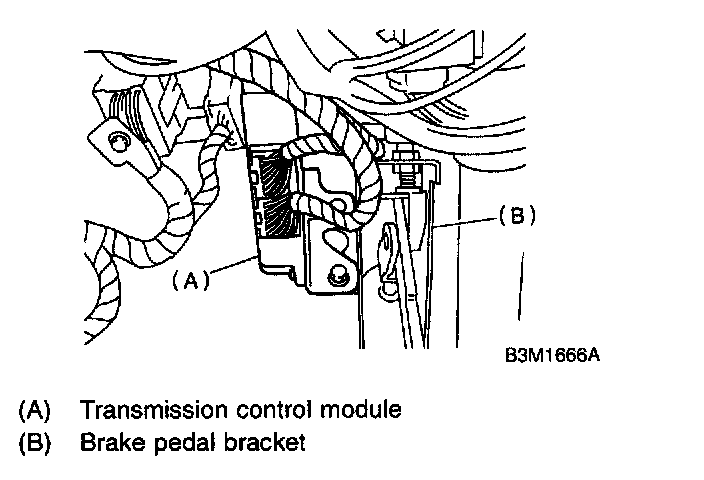

3. Disconnect connectors from transmission control module.

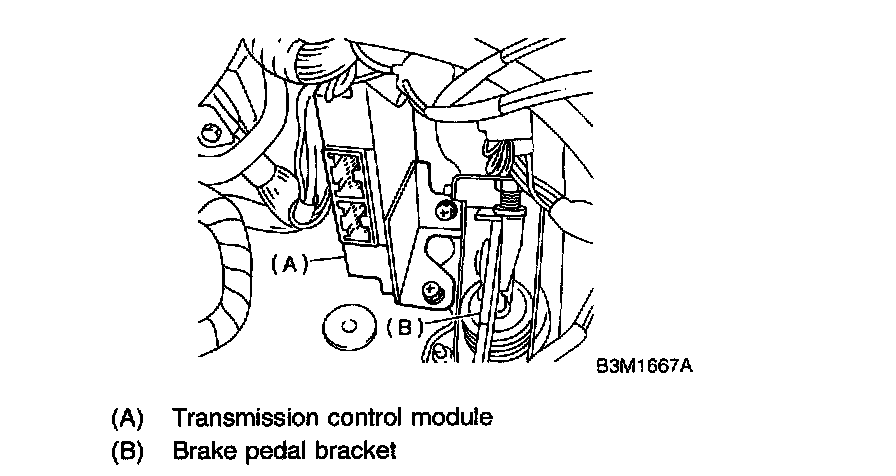

4. Remove transmission control module.

B: INSTALLATION





1. Install transmission control module.
Tightening torque: 7.5 Nm (0.76 kgf-m, 5.5 ft. lbs.)
2. Connect connectors to transmission control module.
3. Install in the reverse order of removal.
