Transmission Control Systems: Specifications

CONTROL SYSTEMS





A: SPECIFICATIONS

B: COMPONENT

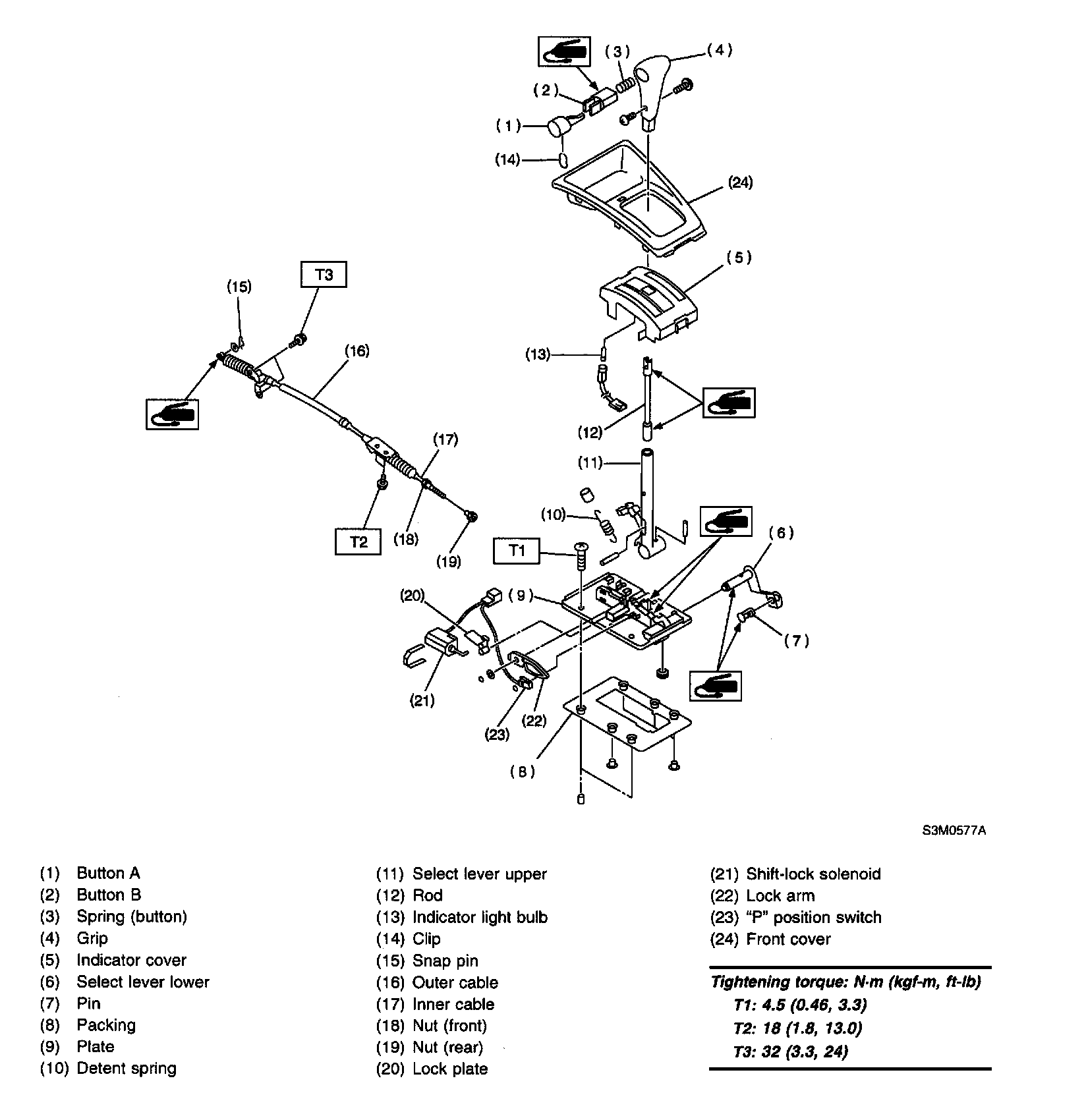

1. AT SELECT LEVER

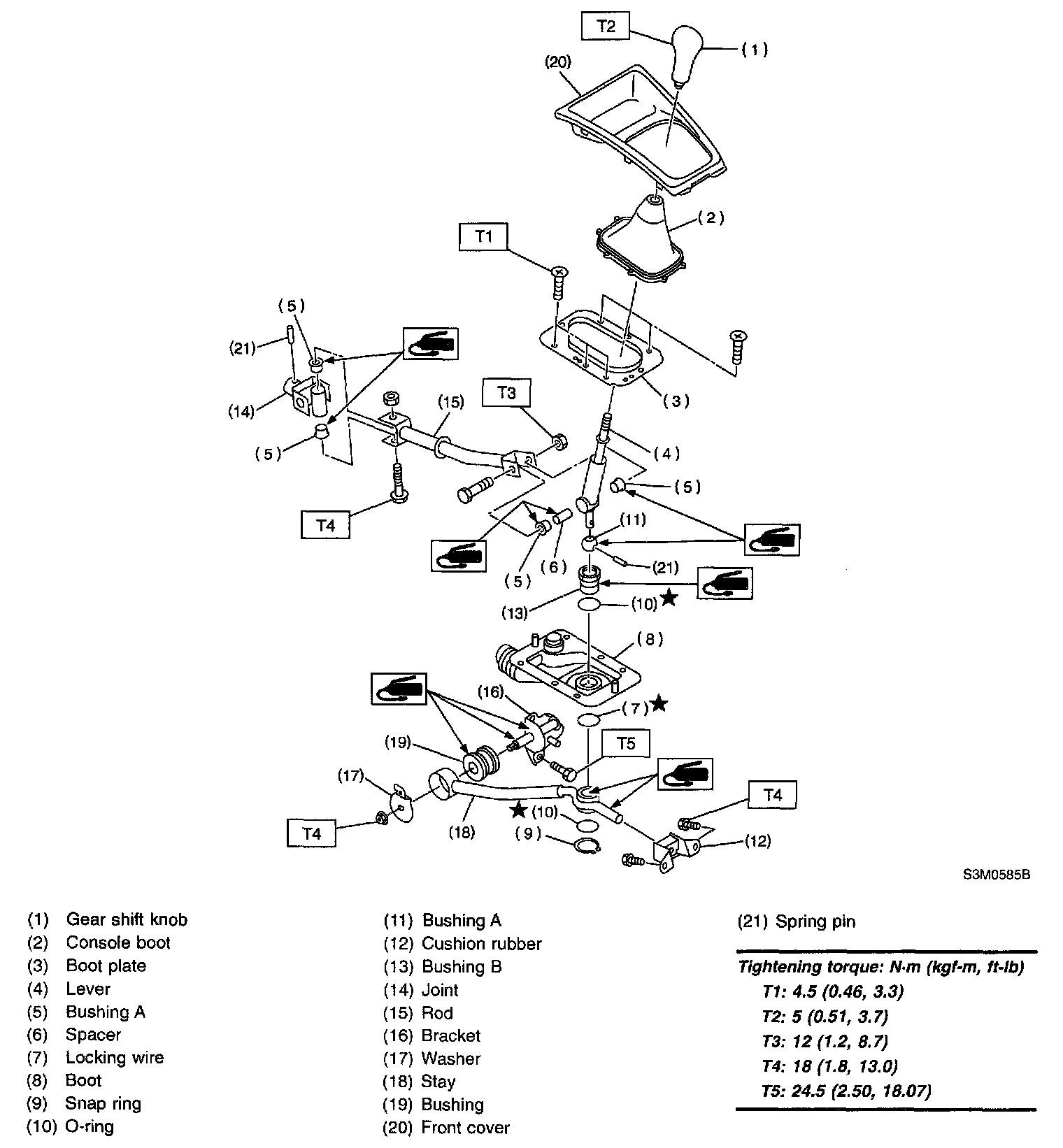

2. MT GEAR SHIFT LEVER
