Cruise Control: Locations

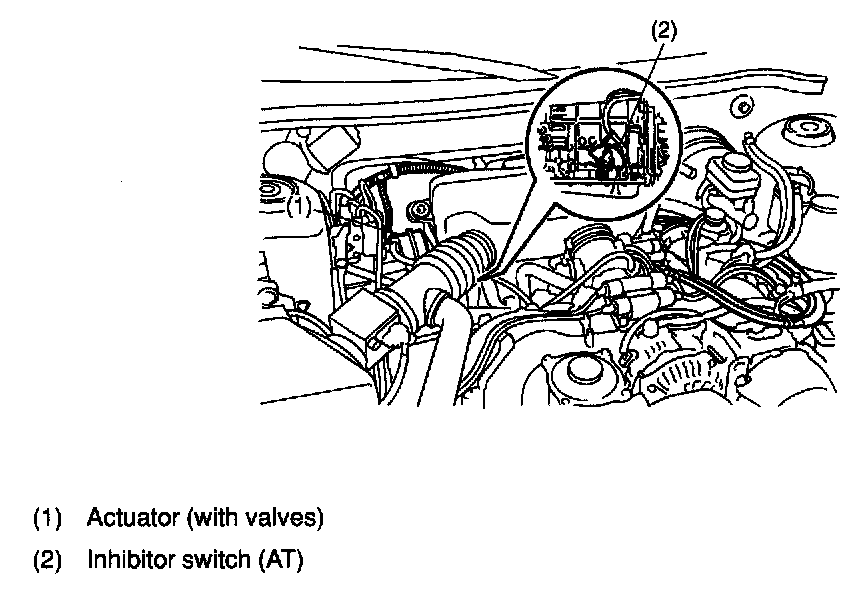

Engine Compartment - Cruise Control:

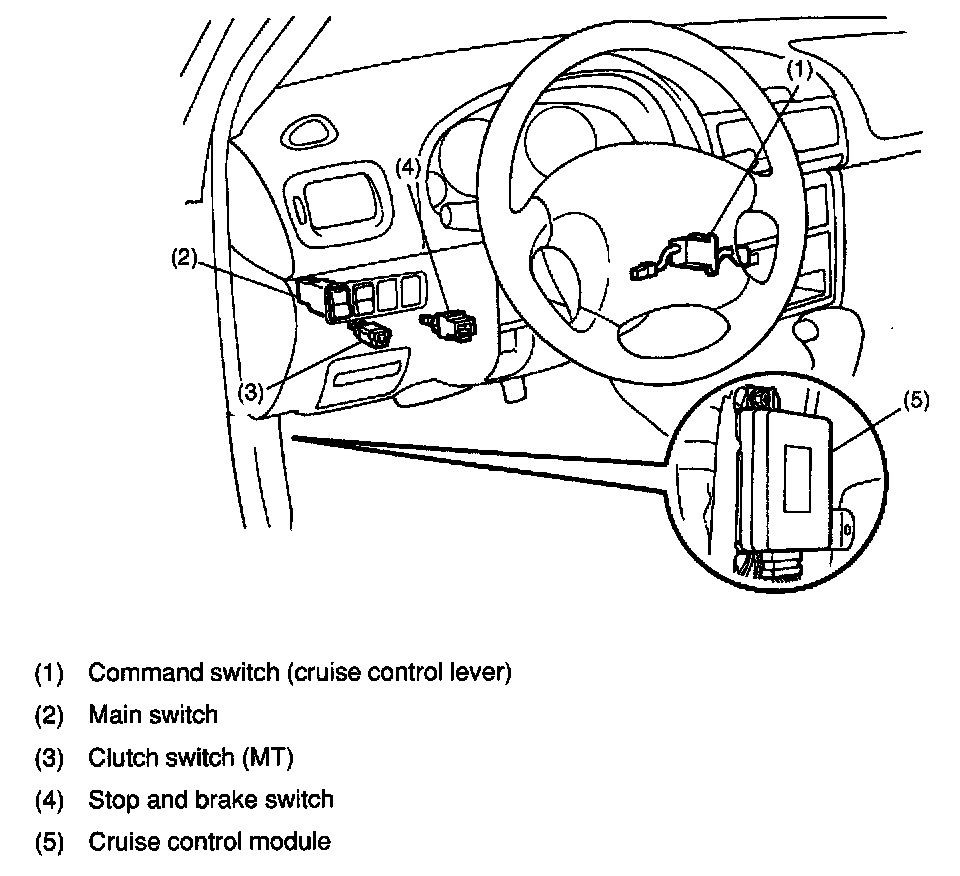

Passenger Compartment - Cruise Control:



Cruise Control Actuator:



COMMAND SWITCH (CRUISE CONTROL LEVER):

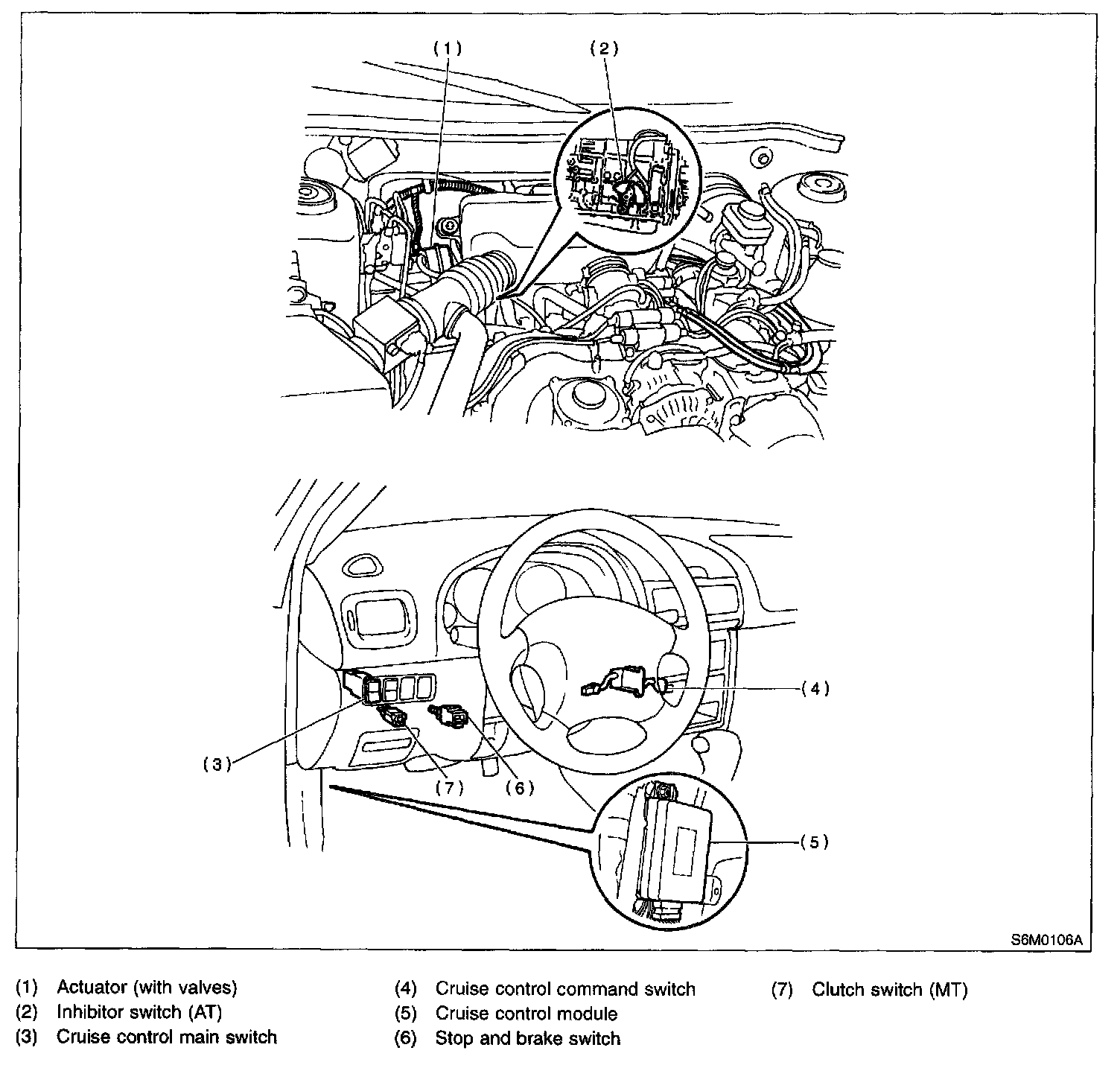

Cruise Control System:







Cruise Control System:
