System Diagram

COMPONENT

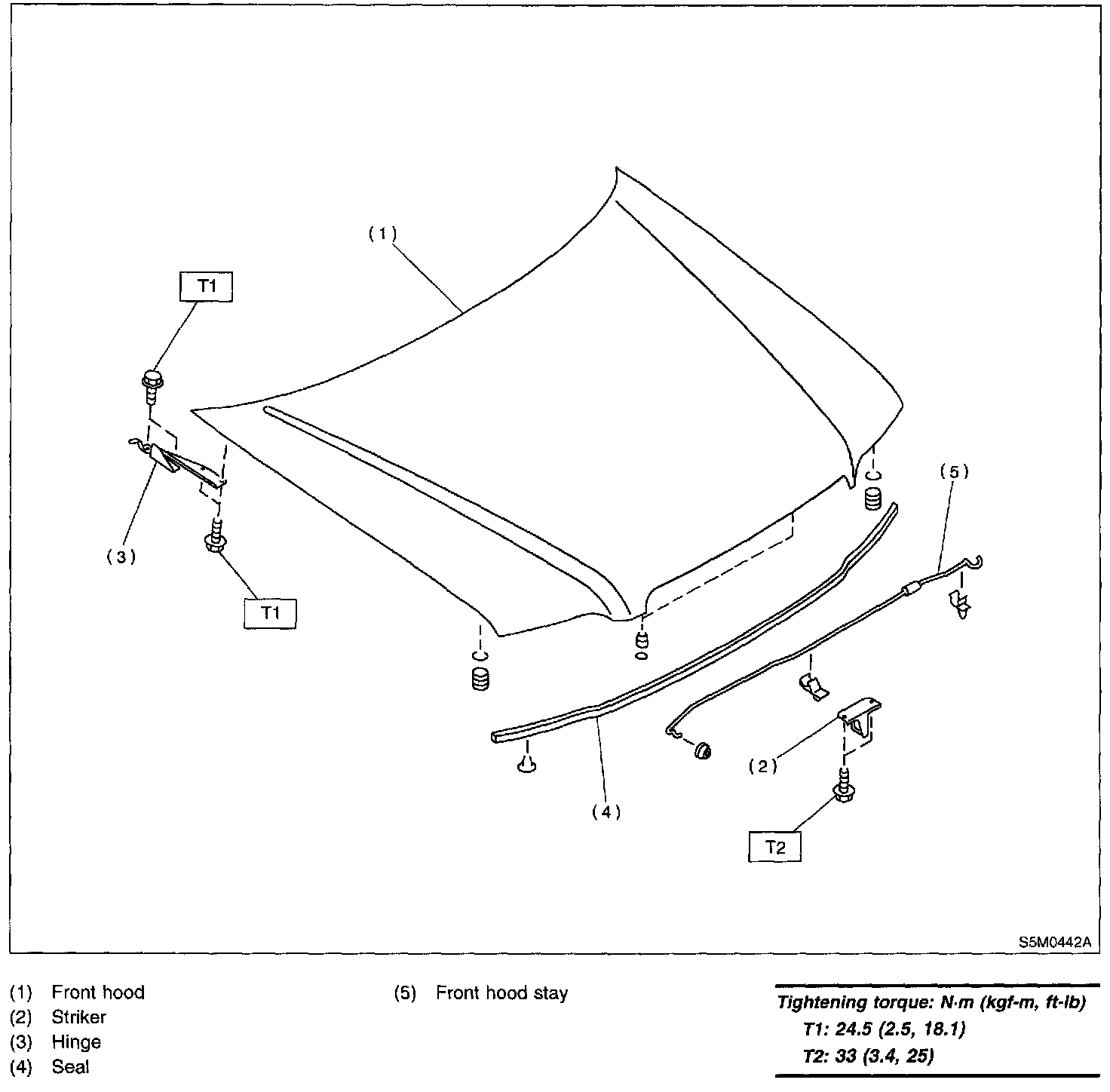

1. FRONT HOOD

Front Hood:

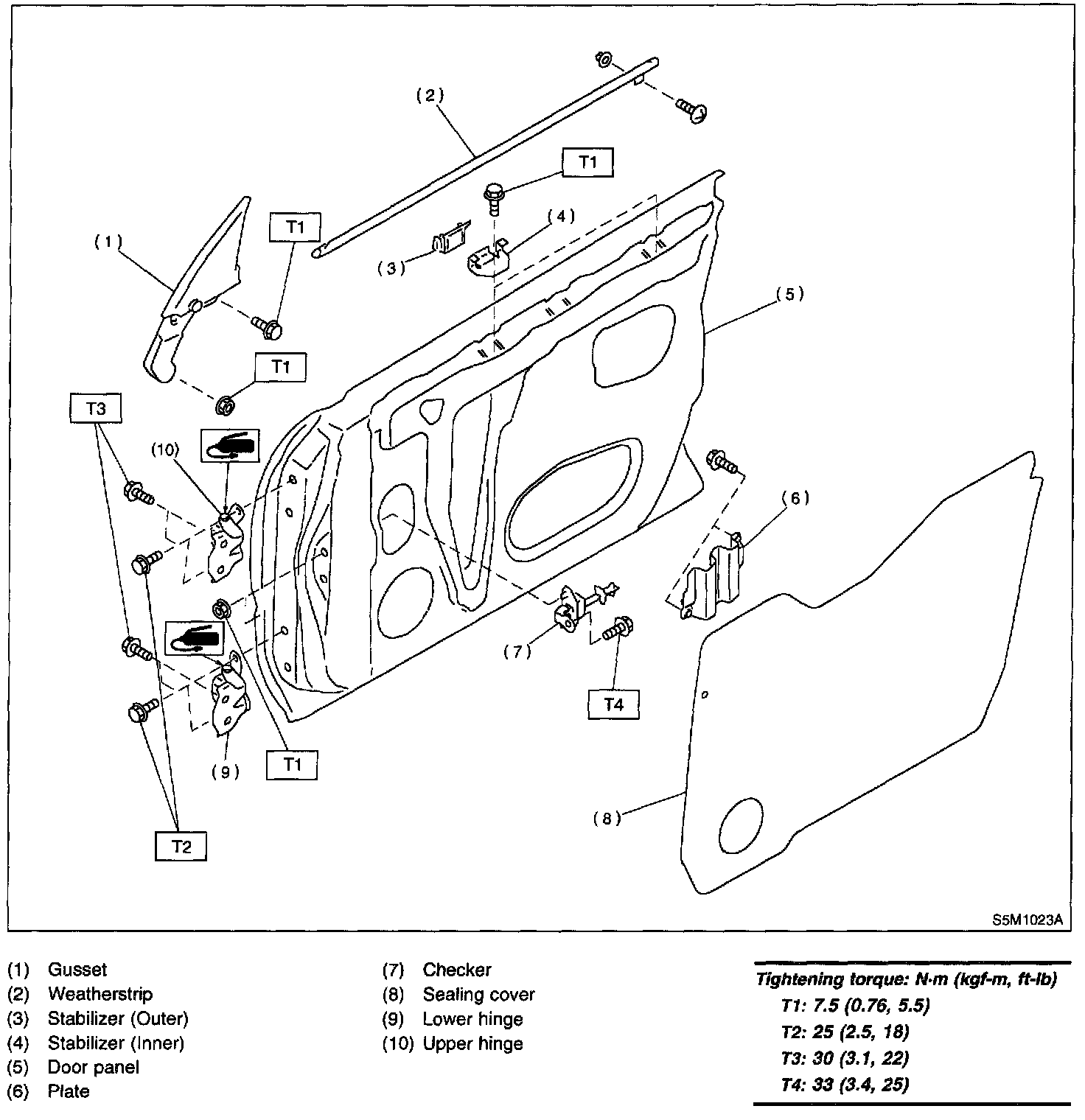

2. FRONT DOOR PANEL

Front Door Panel:

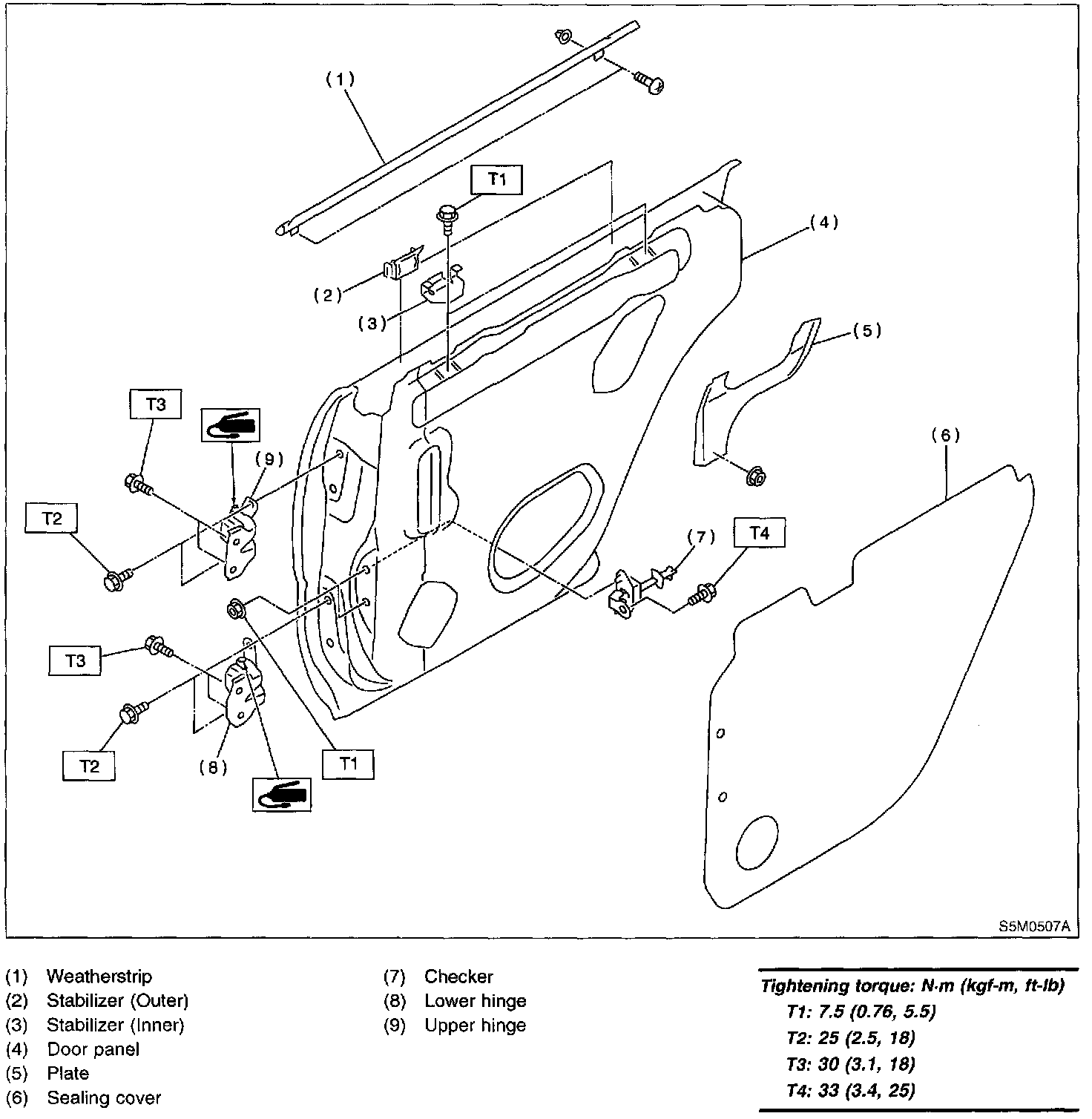

3. REAR DOOR PANEL

Rear Door Panel:

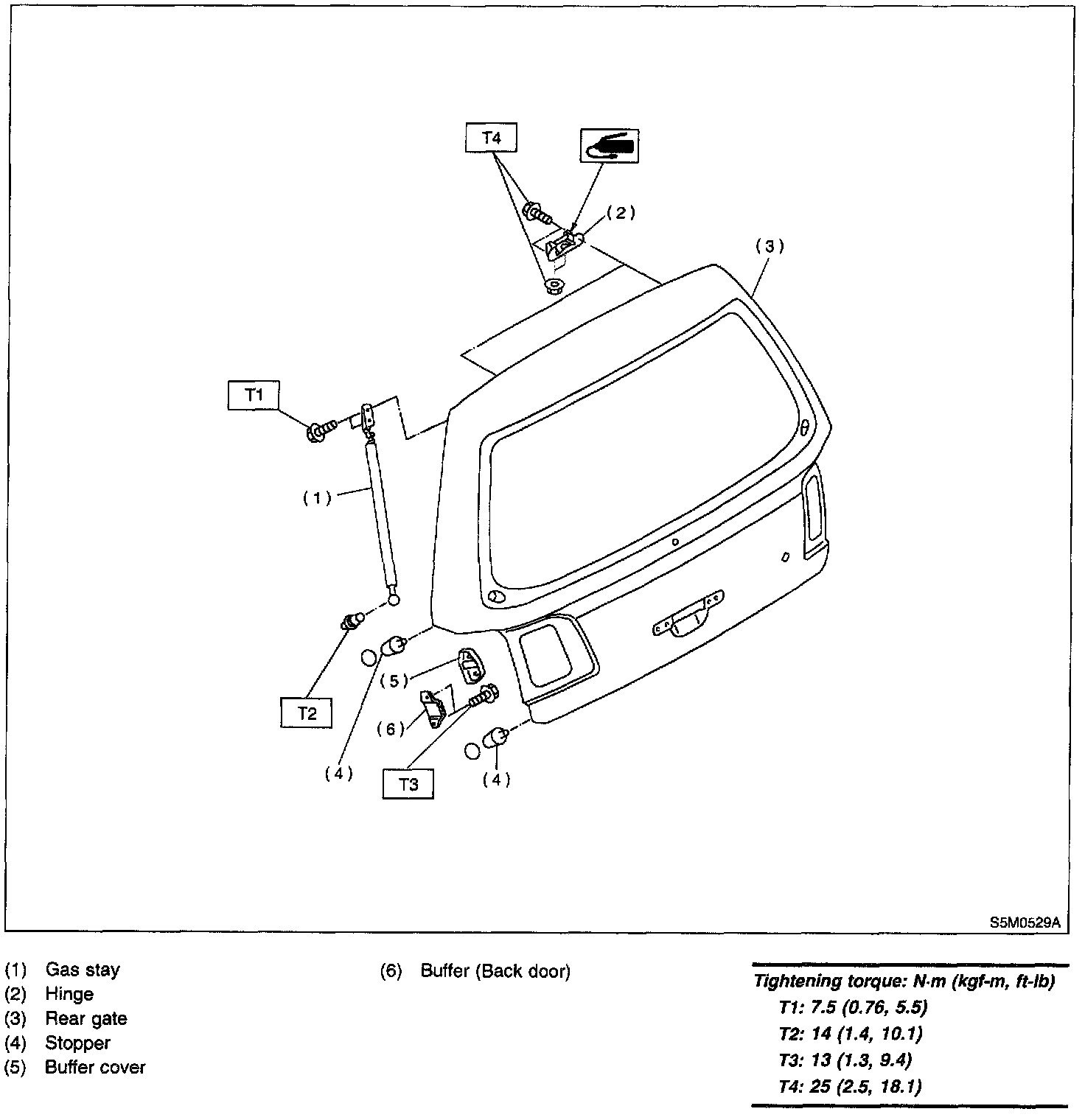

4. REAR GATE PANEL

Rear Gate Panel:
