Ignition Control System



Wiring Diagram:

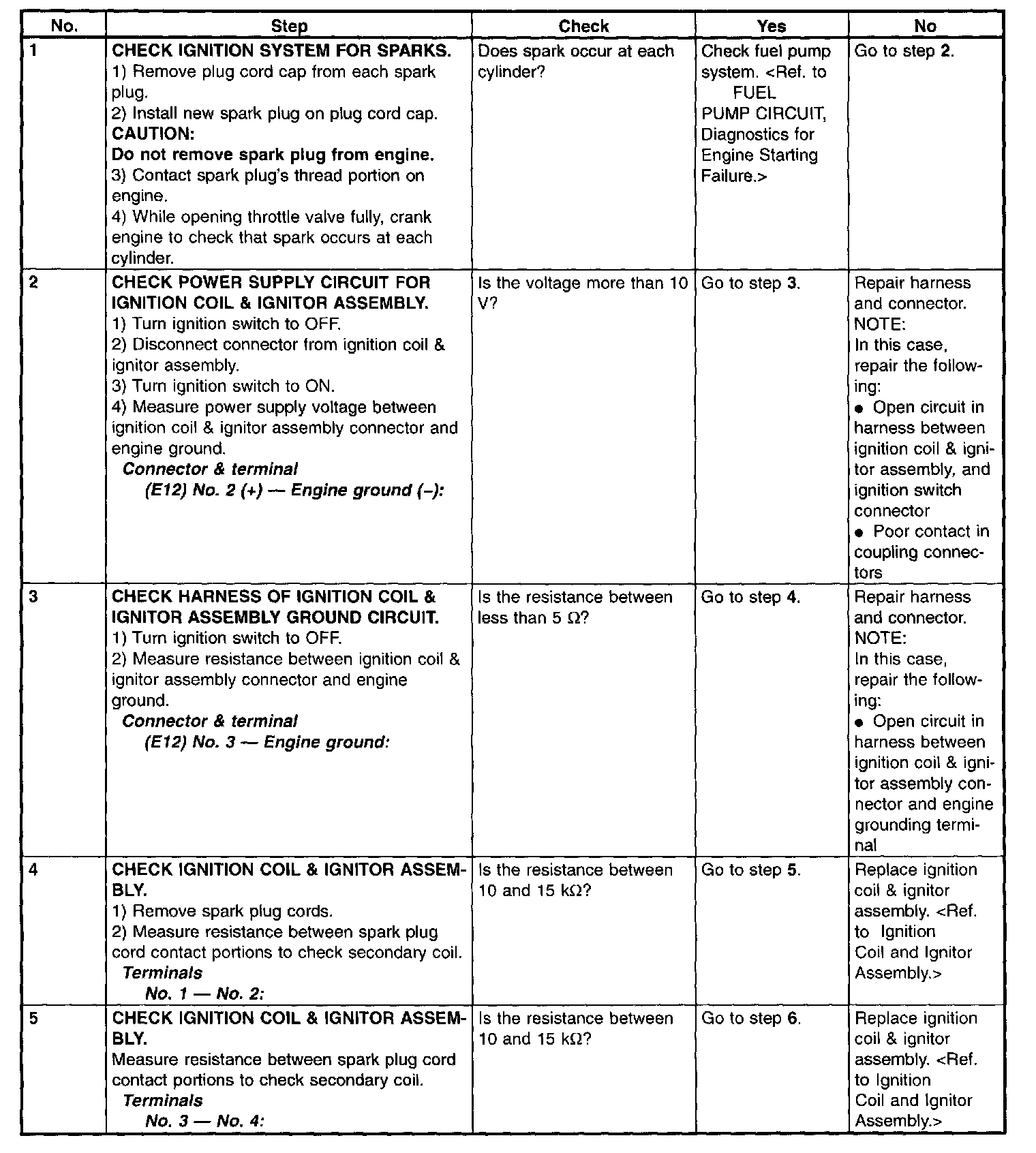

Step 1 - 5:

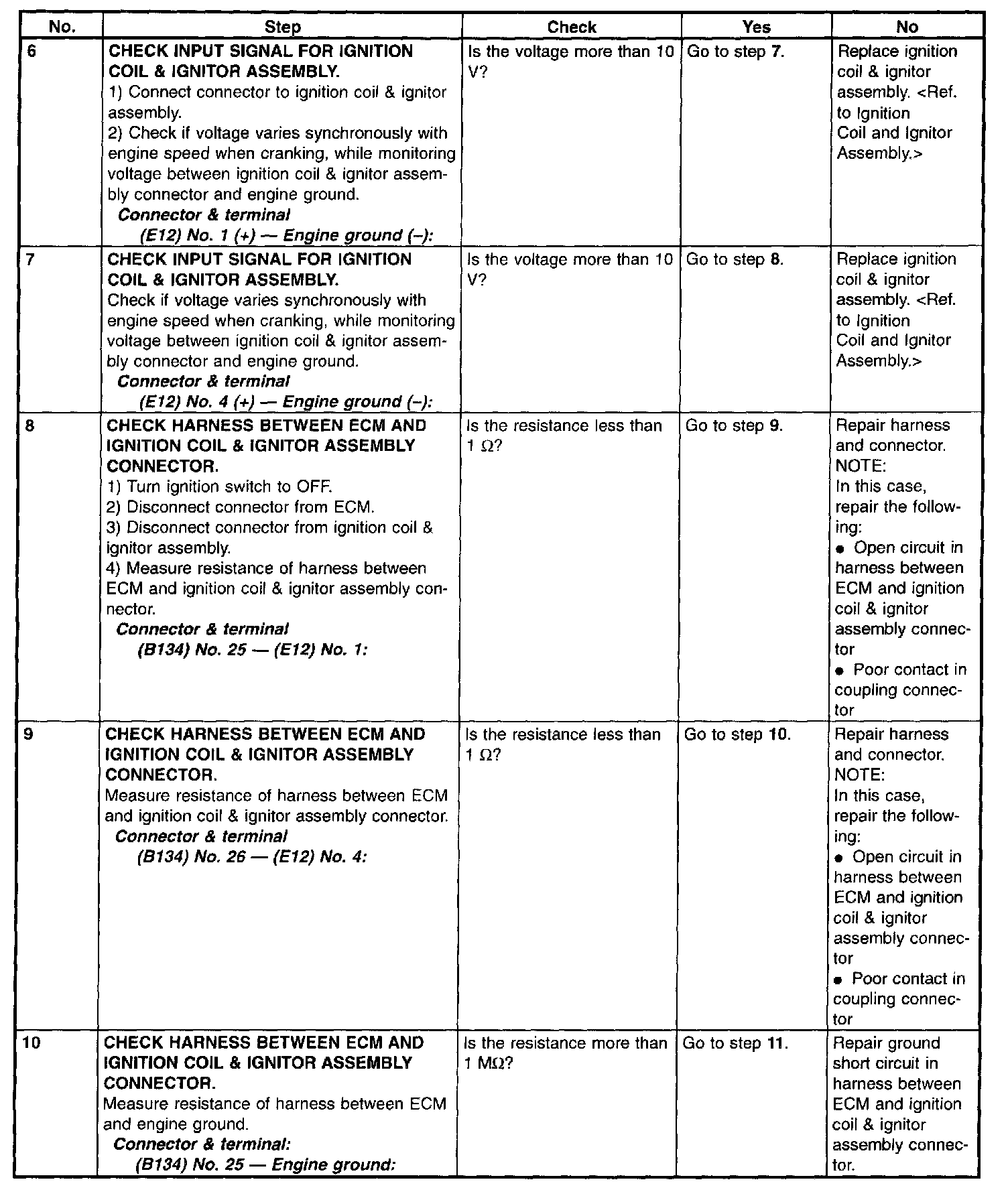

Step 6 - 10:

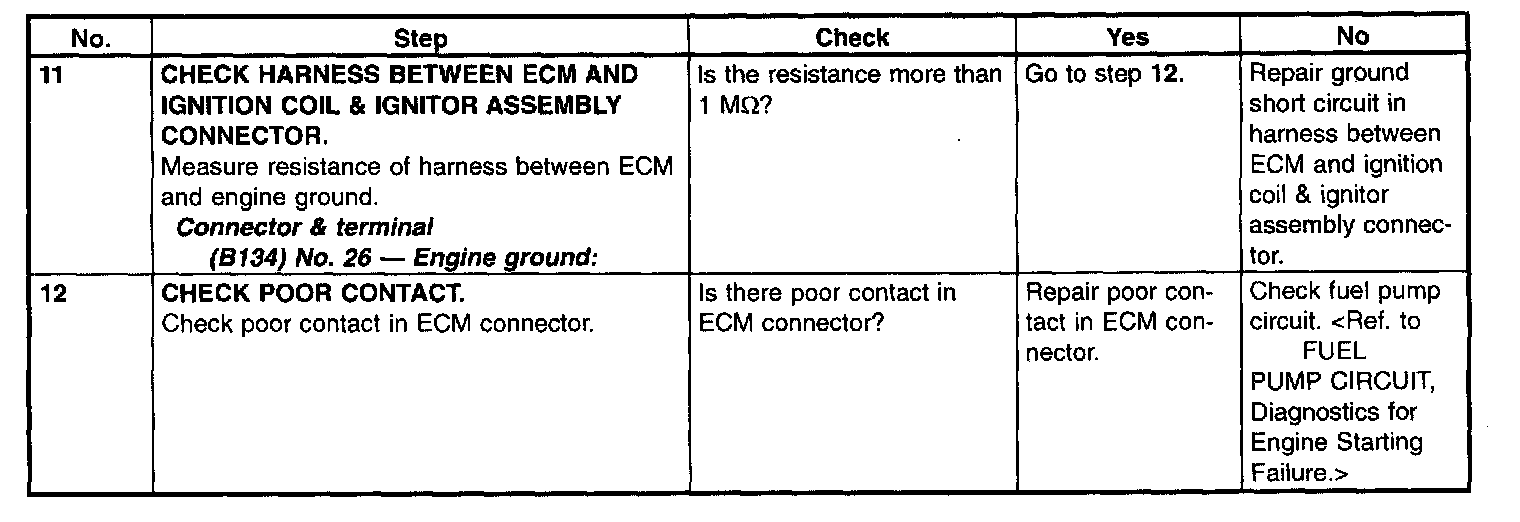

Step 11 - 12:






IGNITION CONTROL SYSTEM

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
