Power Window Switch: Service and Repair

Power Window Control Switch / REMOVAL

Main Switch:

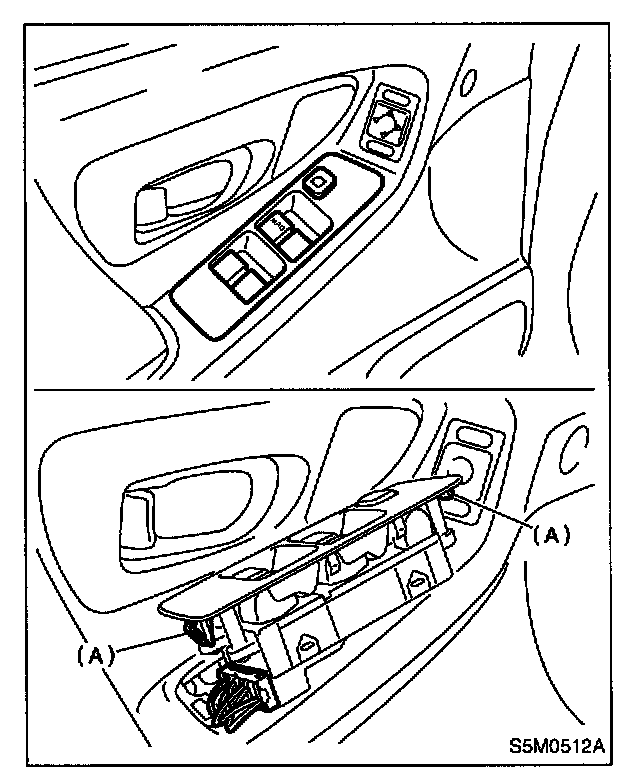

1. MAIN SWITCH
1. Release two hooks (A) of switch panel to remove power window main switch.
2. Disconnect electrical connector from power window main switch.

Sub Switch:

2. SUB-SWITCH
1. Remove door trim.
2. Remove screws and sub-switch.


INSTALLATION
1. MAIN SWITCH
Install in the reverse order of removal.

2. SUB-SWITCH
Install in the reverse order of removal.
