MT Gear Shift Lever: Installation

Install the joint to the transmission and secure with the straight pin.
Insert the gear shift lever from room side.
NOTE: After inserting the rod and stay, temporarily put them onto transmission mount.

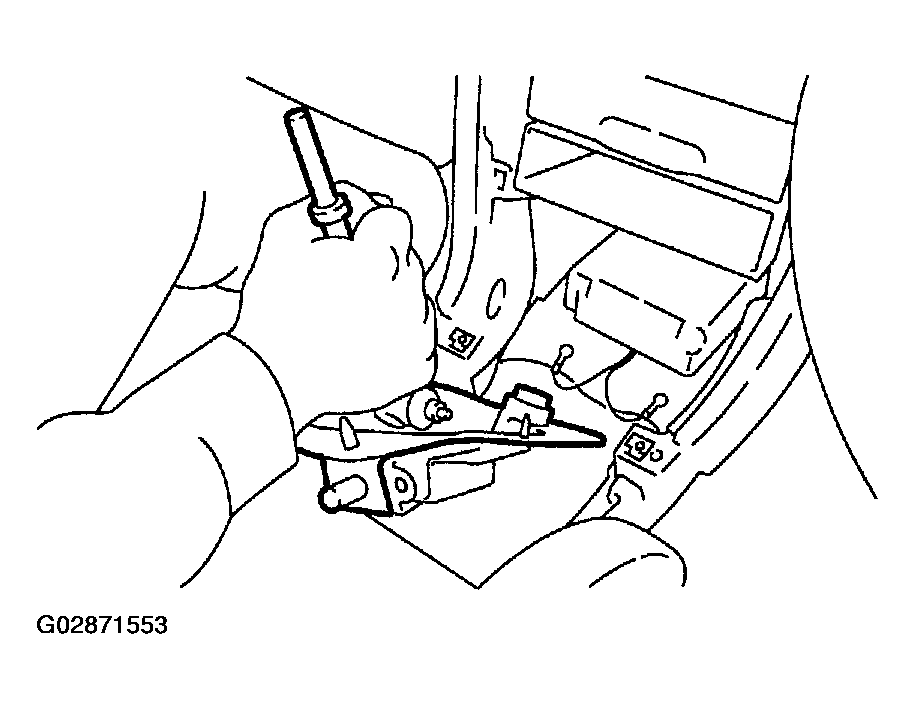

Fig 1: Inserting Gear Shift Lever From Room Side
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Install the joint to shifter arm.
Insert the spring pin.

Fig 2: Inserting Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Mount the cushion rubber on the body.
Tightening torque:

18 N.m (1.8kgf-m, 13.0 ft-lb)

Fig 3: Mounting Cushion Rubber On Body
Courtesy of SUBARU OF AMERICA, INC.
Connect the rod to the joint.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)

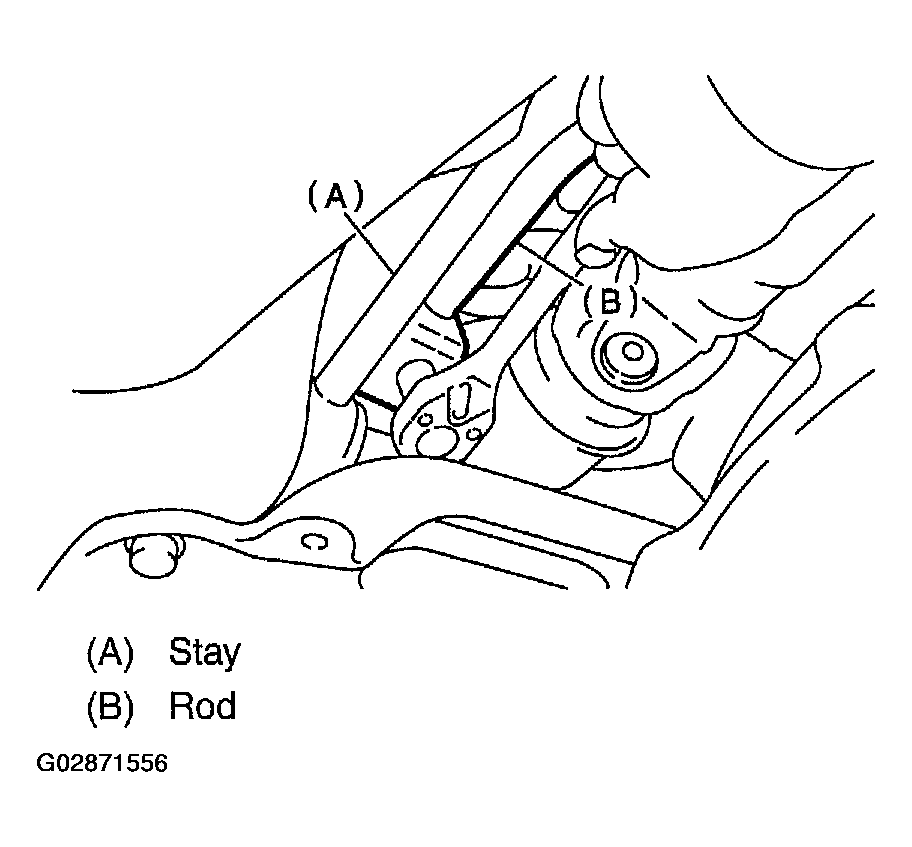

Fig 4: Connecting Rod To Joint
Courtesy of SUBARU OF AMERICA, INC.
Connect the stay to transmission bracket.
Tightening torque:

18 N.m (1.8kgf-m, 13.0 ft-lb)

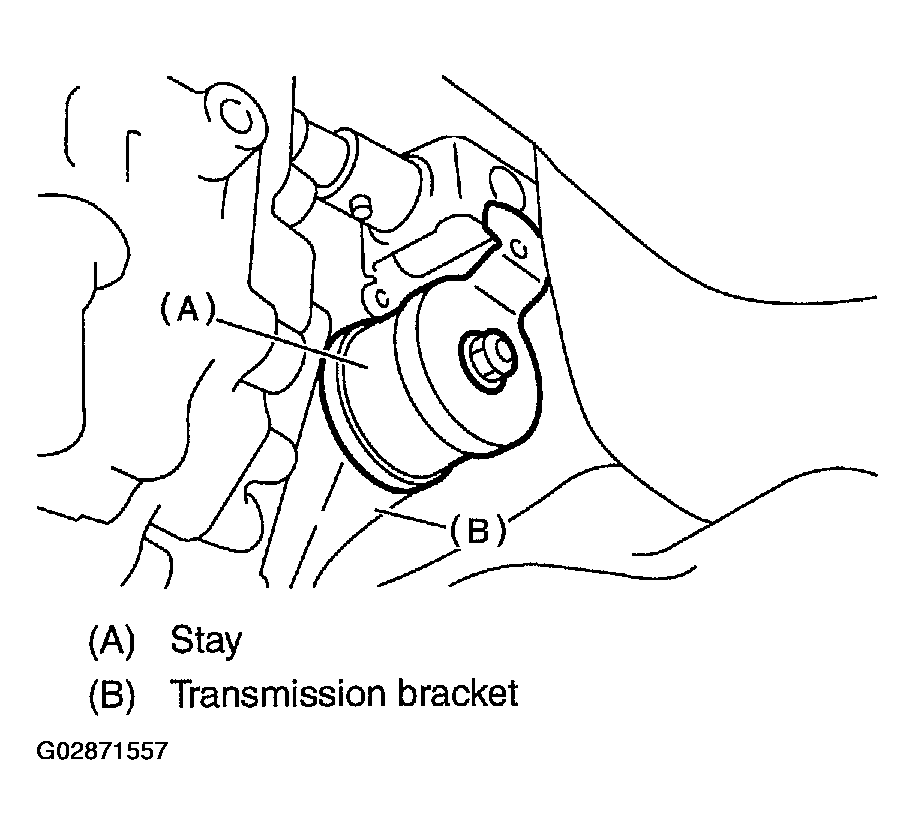

Fig 5: Connecting Stay To Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover. (If equipped)
Install the rear exhaust pipe and muffler.
Lower the vehicle.
Install the boot plate to body.
Tightening torque:

7.5 N.m (0.76kgf-m, 5.5 ft-lb)
Install the console box. < Ref. to INSTALLATION , Console Box. >
