Engine Control Module

Electrical Specification:

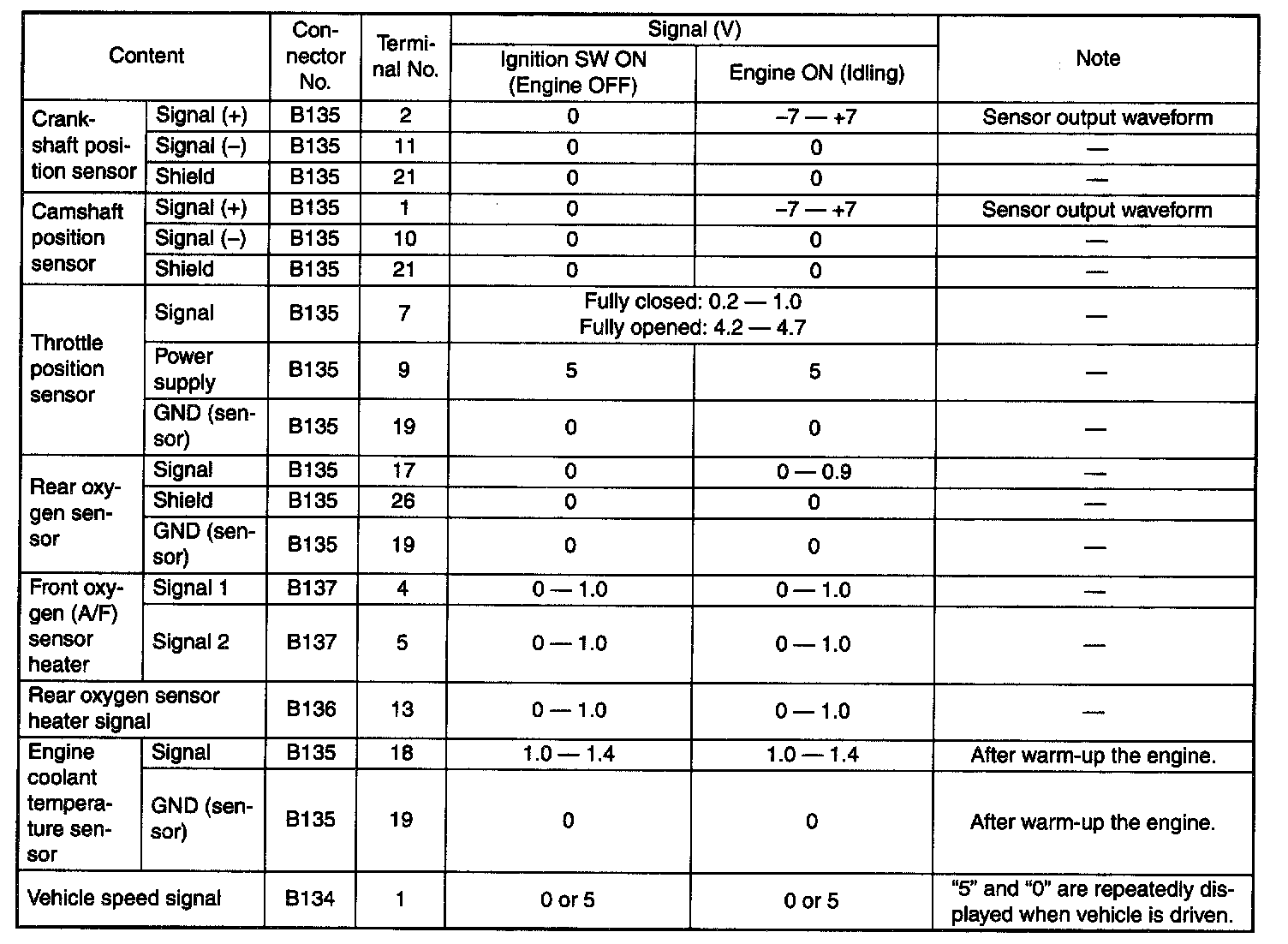

Pinouts Part 1:

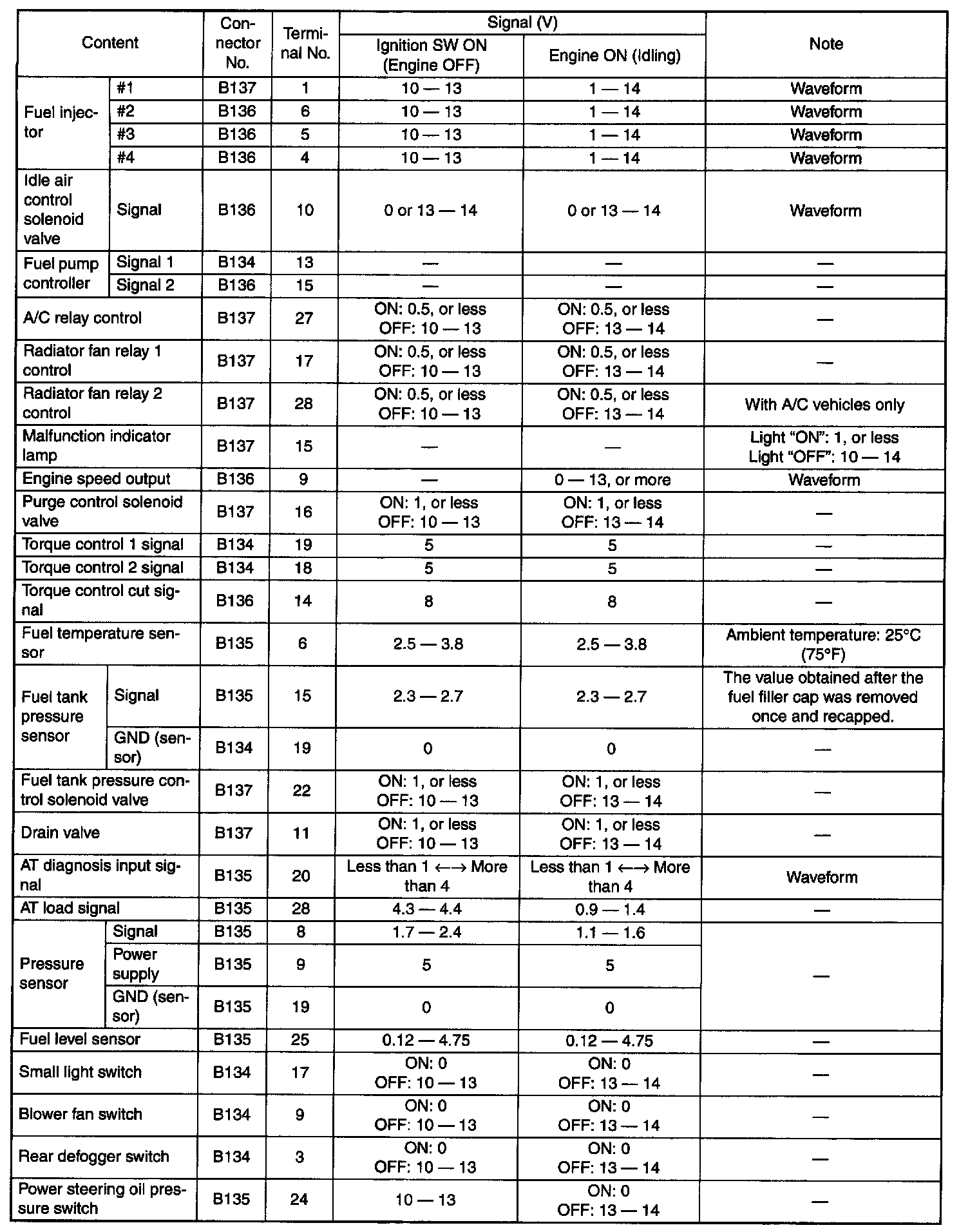

Pinouts Part 2:

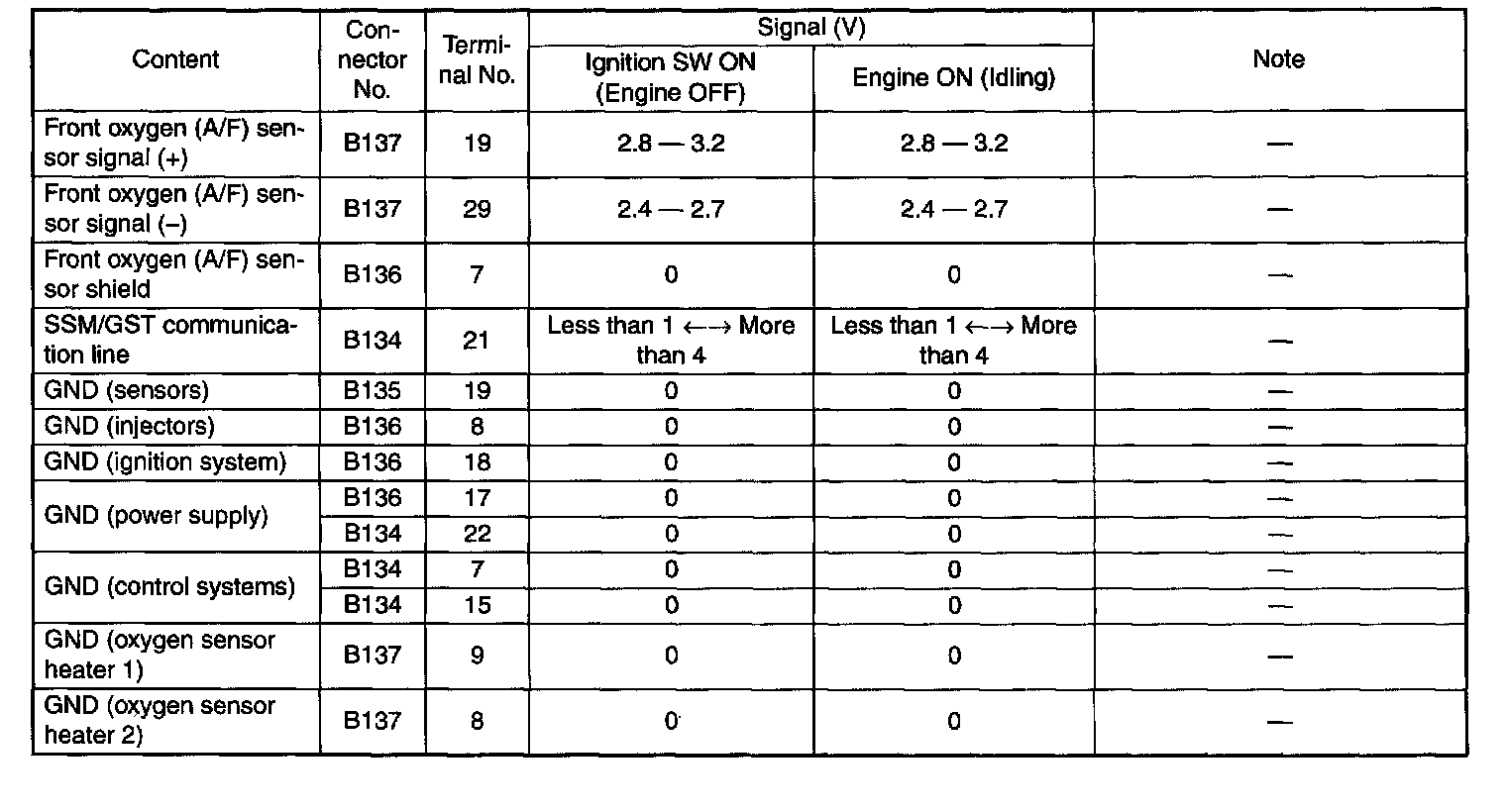

Pinouts Part 3:

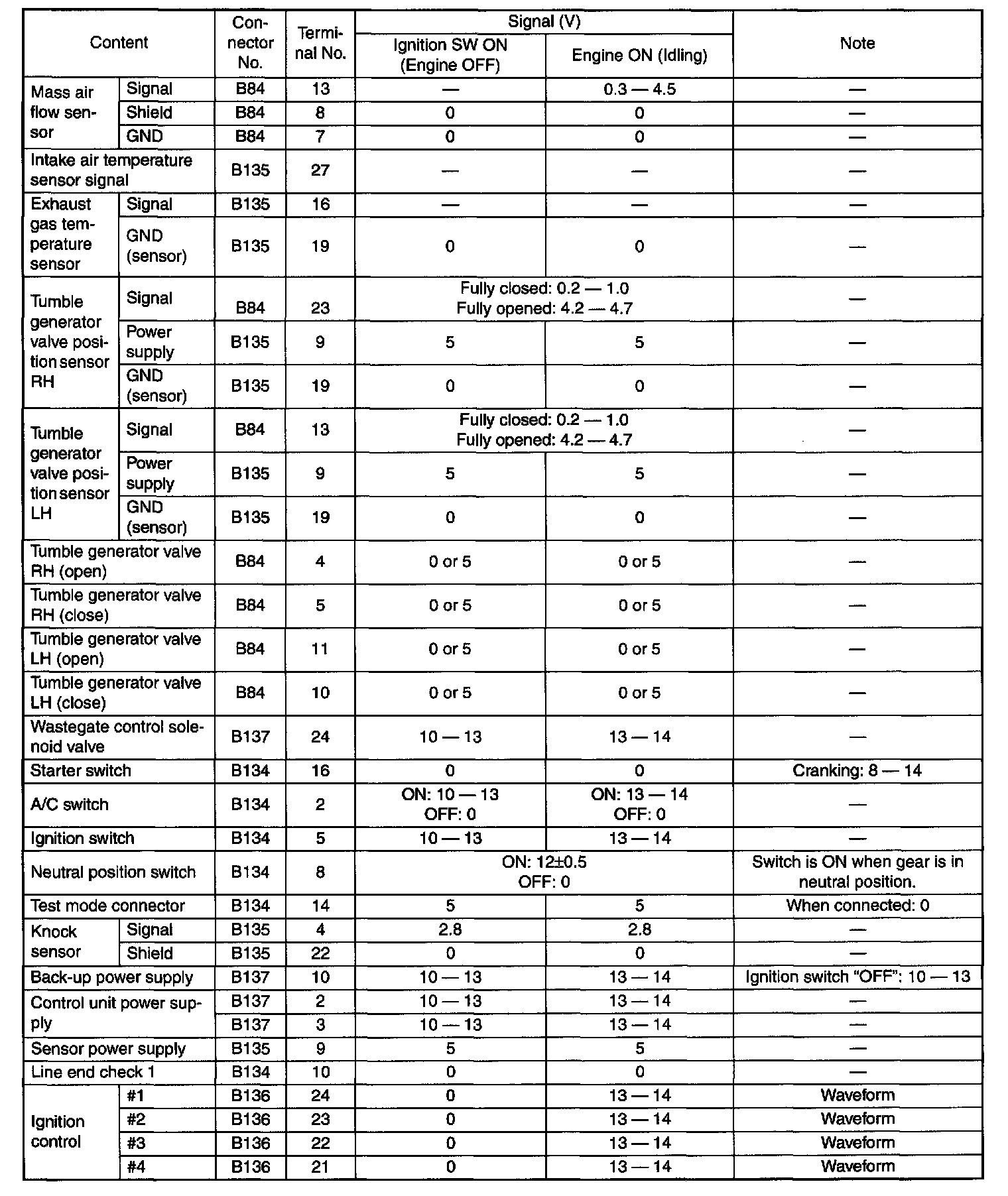

Pinouts Part 4:
