Diagnostics Chart with Diagnosis Connector
>>
DTC 41: Abnormal Abs Control Module
>>
Diagnostic Procedures:
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedures:

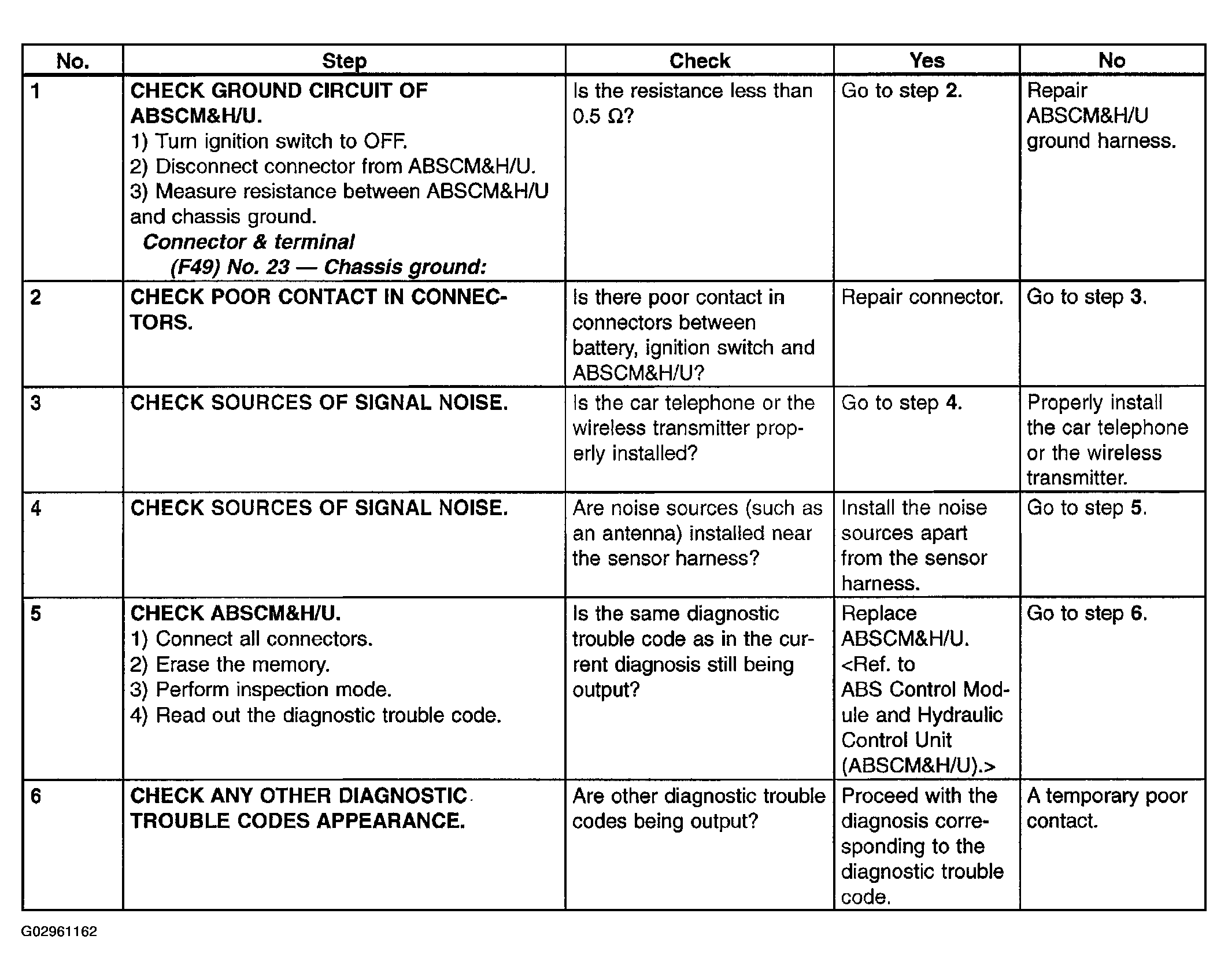

Fig 1: Abnormal ABS Control Module Diagnostic Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
