Electrical Components Location: Location

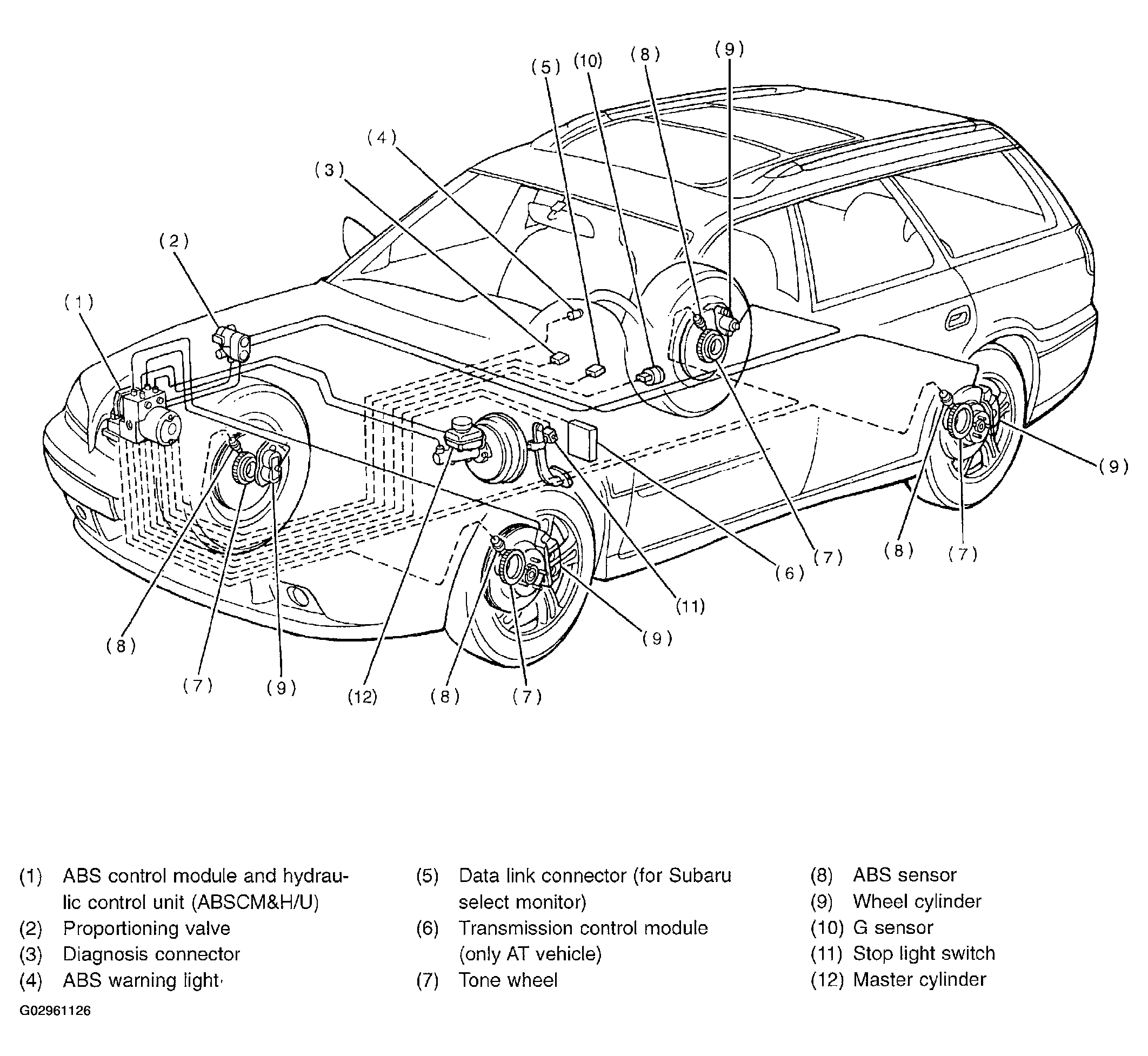

Fig 1: Identifying Electrical Components Location (1 Of 2)
G02961126Courtesy of SUBARU OF AMERICA, INC.

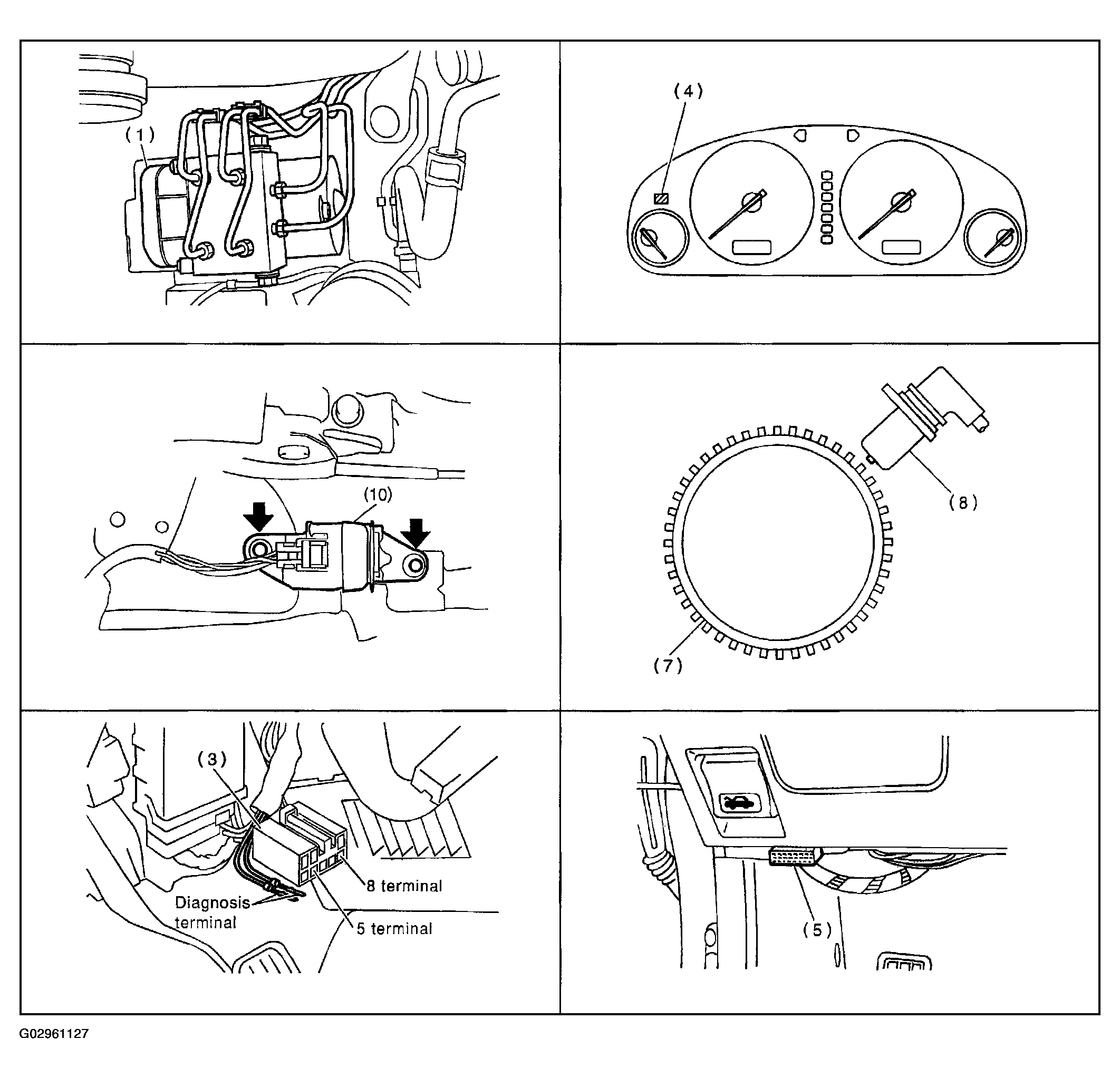

Fig 2: Identifying Electrical Components Location (2 Of 2)
G02961127Courtesy of SUBARU OF AMERICA, INC.
