Fuel Filler Pipe: Disassembly

Disconnect evaporation hose (M) and (N) from evaporation pipe assembly.

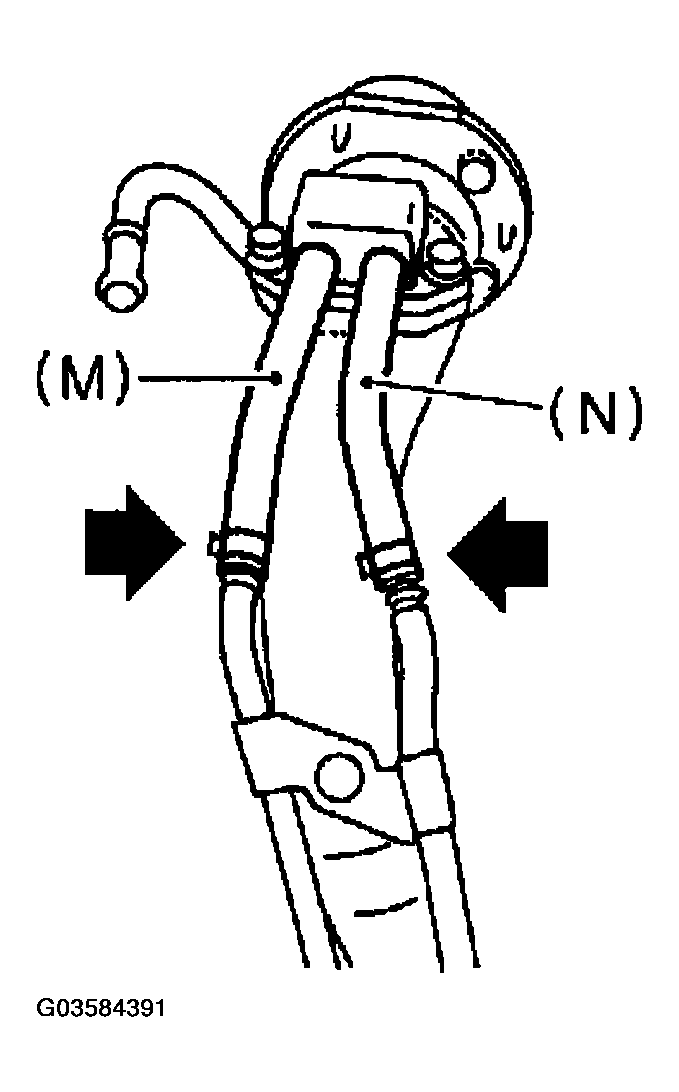

Fig 1: Disconnecting Evaporation Hose (M) And (N) From Evaporation Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove shut valve from fuel filler pipe.

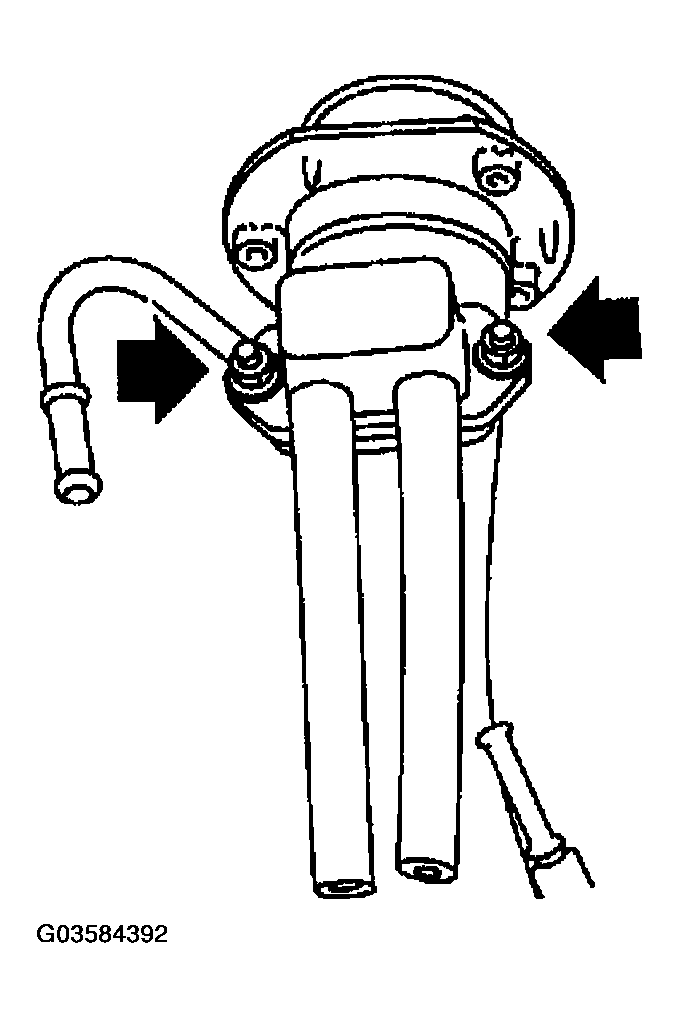

Fig 2: Removing Shut Valve From Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove nut which holds evaporation pipe assembly on fuel filler pipe.

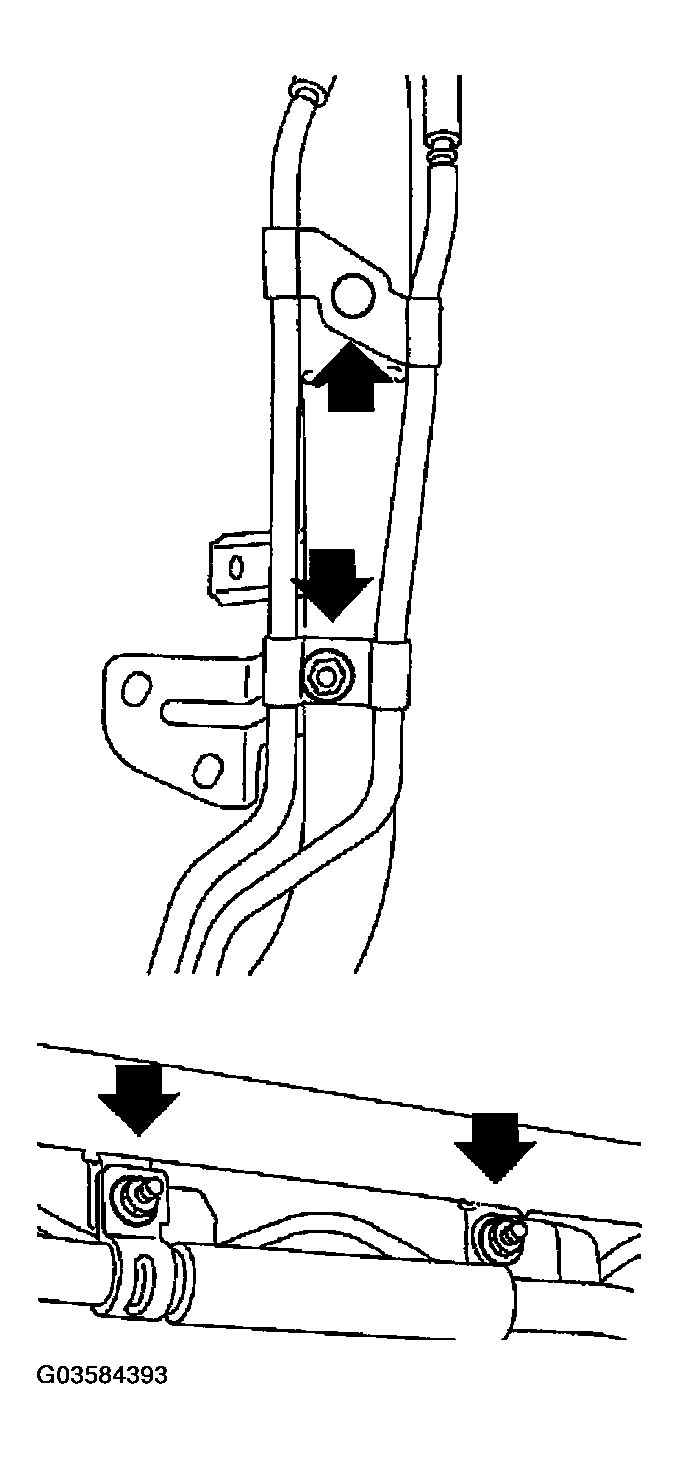

Fig 3: Removing Nut Which Holds Evaporation Pipe Assembly On Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
