RH Side

Release fuel pressure.
< Ref. to , RELEASING OF FUEL PRESSURE , FUEL. >
Open fuel flap lid, and remove fuel filler cap.

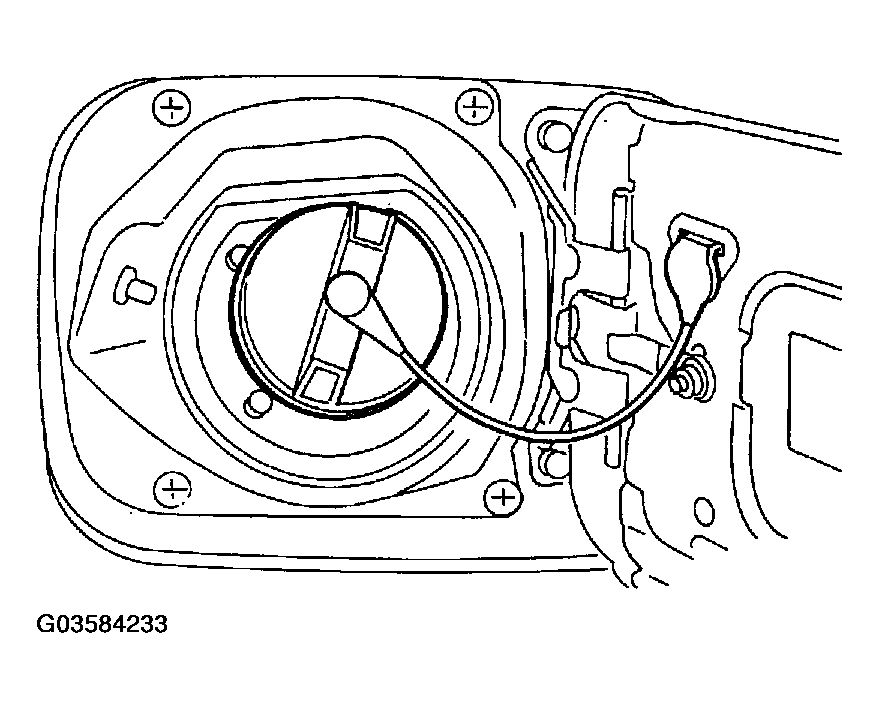

Fig 1: Removing Fuel Filler Cap
Courtesy of SUBARU OF AMERICA, INC.
Disconnect battery ground cable.

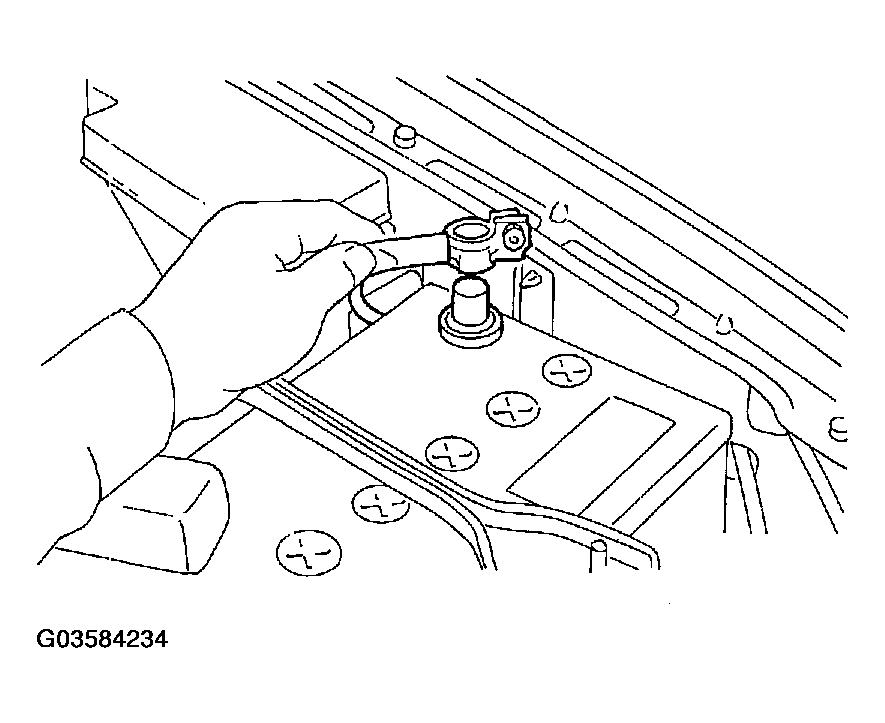

Fig 2: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner lower case. < Ref. to REMOVAL , Air Cleaner. >
Remove power steering pump and tank from brackets.
1. Remove V-belt.
  < Ref. to REMOVAL , V-belt. >
2. Remove power steering oil pipe with bracket.

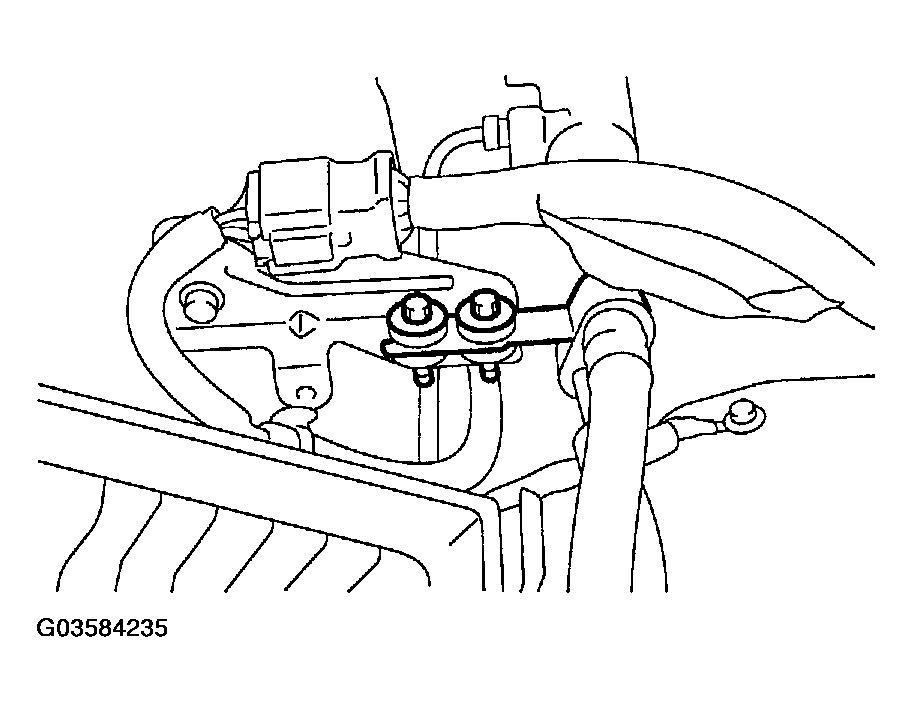

  Fig 3: Removing Power Steering Oil Pipe With Bracket
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove bolts which install power steering pump bracket.
  CAUTION: Do not separate hose and pipe from the main pump.

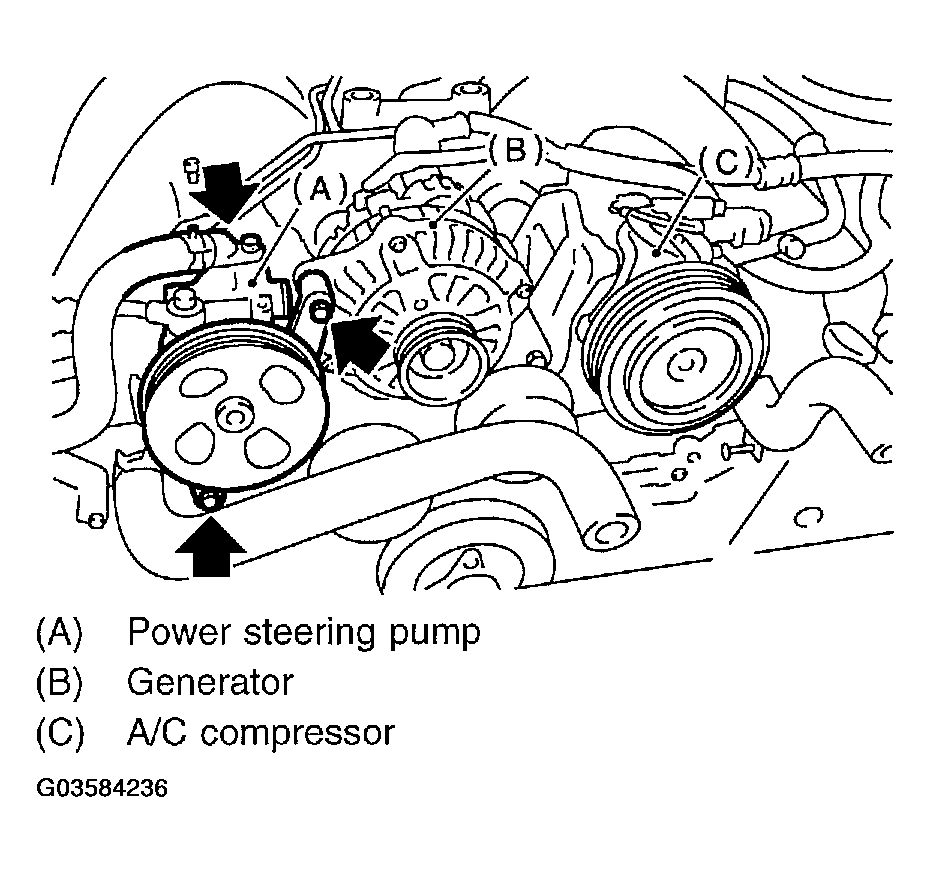

  Fig 4: Removing Power Steering Pump Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect power steering pump switch connector.

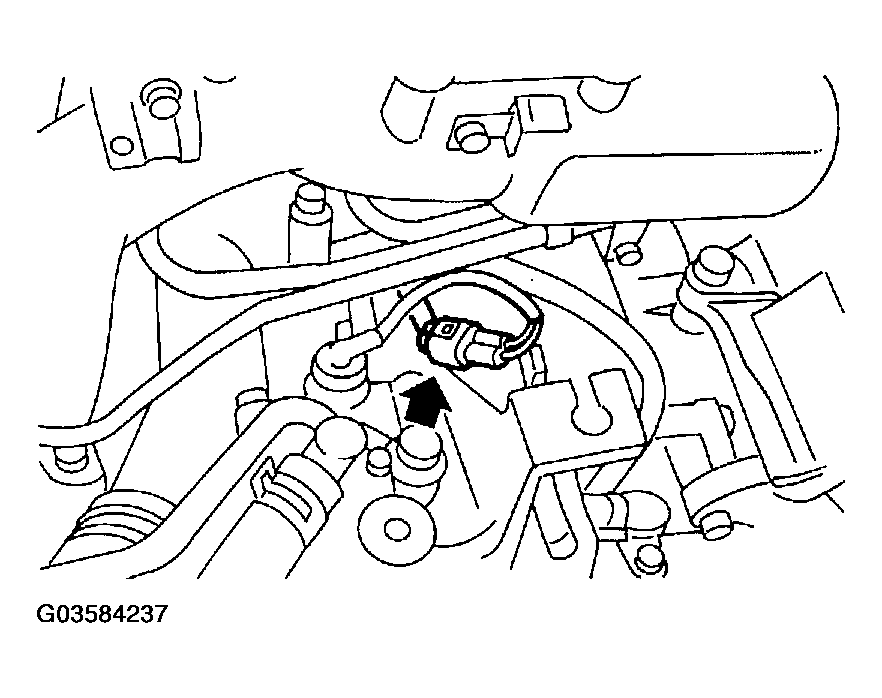

  Fig 5: Disconnecting Power Steering Pump Switch Connector
  Courtesy of SUBARU OF AMERICA, INC.

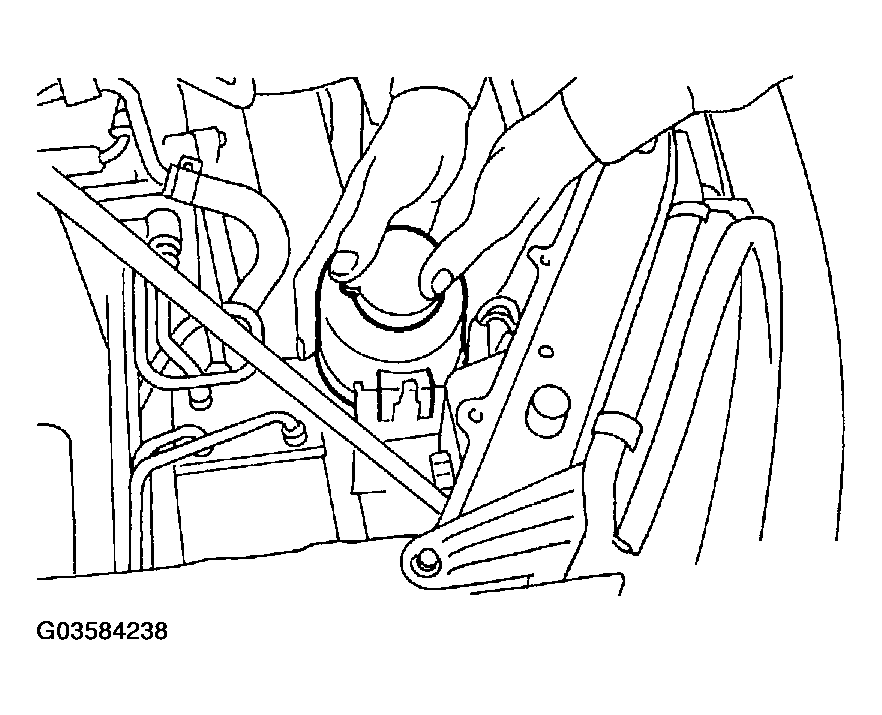

5. Remove power steering tank from the bracket by pulling it upward.

  Fig 6: Removing Power Steering Tank From Bracket By Pulling
  Courtesy of SUBARU OF AMERICA, INC.

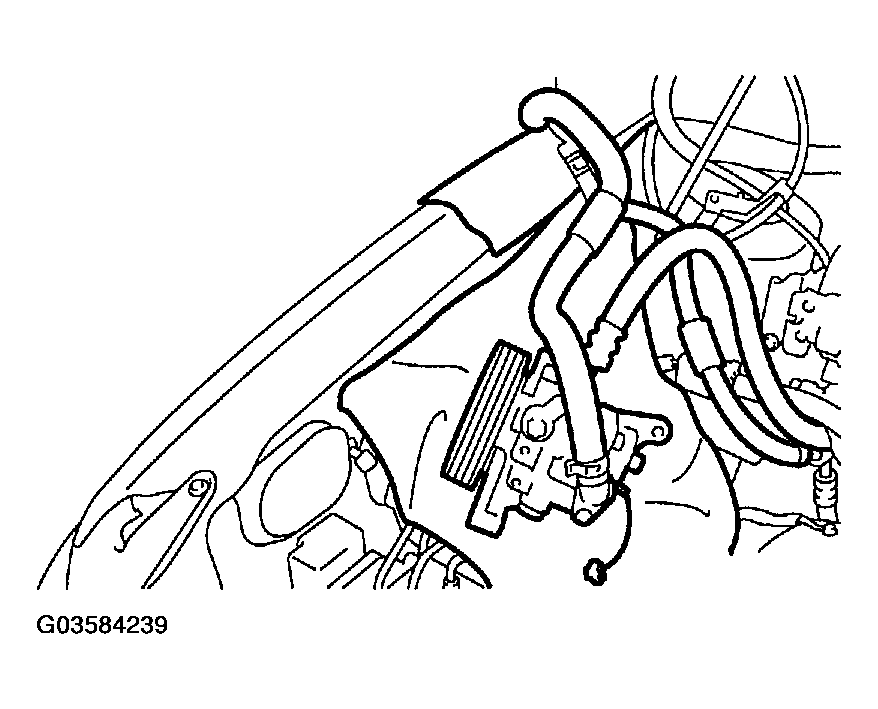

6. Place power steering pump on the right side wheel apron.

  Fig 7: Placing Power Steering Pump On Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.
Remove ground cable from fuel pipe protector RH.

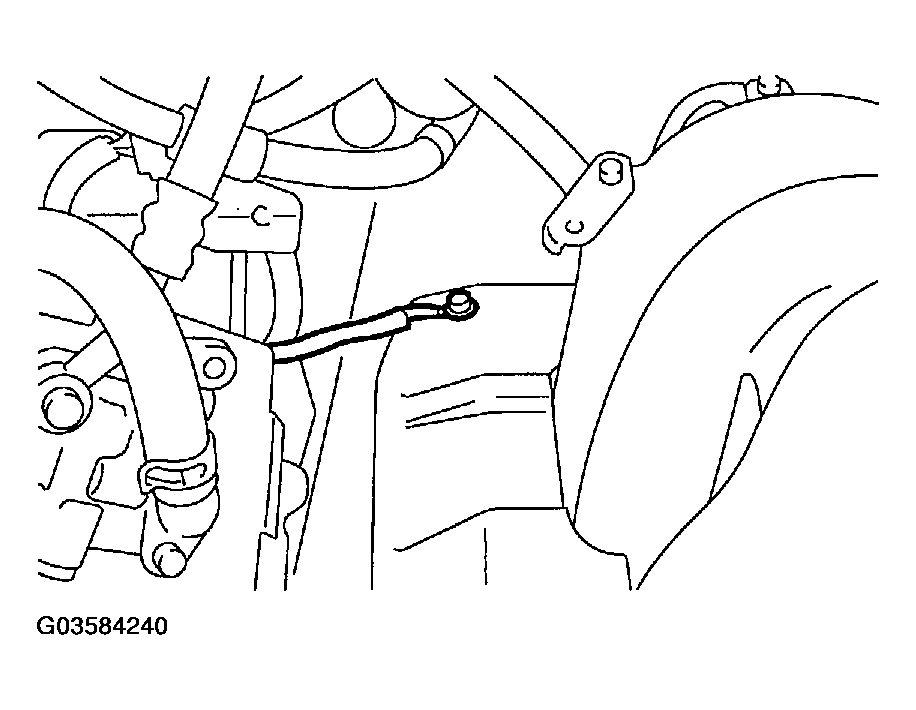

Fig 8: Removing Ground Cable From Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel pipe protector RH.

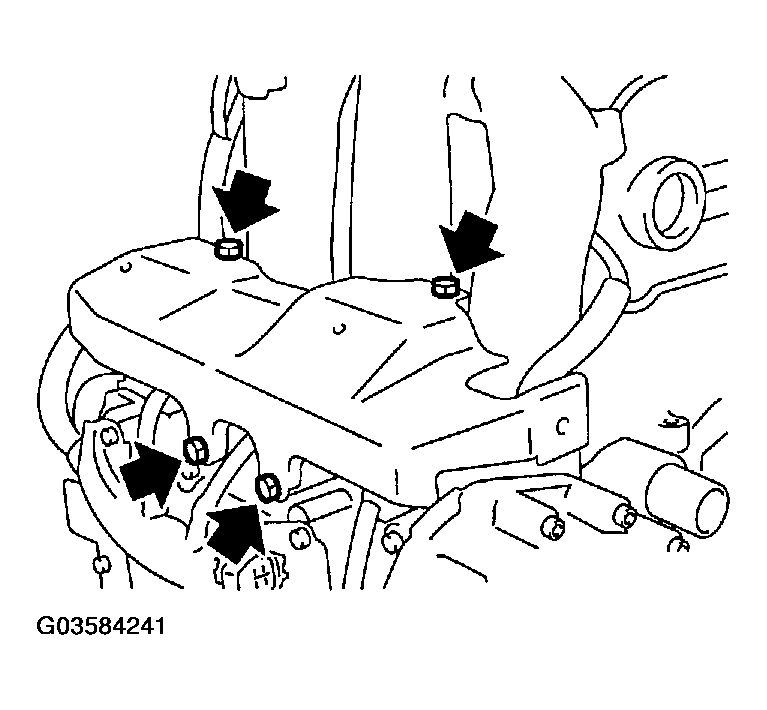

Fig 9: Removing Fuel Pipe Protector RH
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector (A) from fuel injector.
Remove bolt (B) which holds injector pipe onto cylinder head.

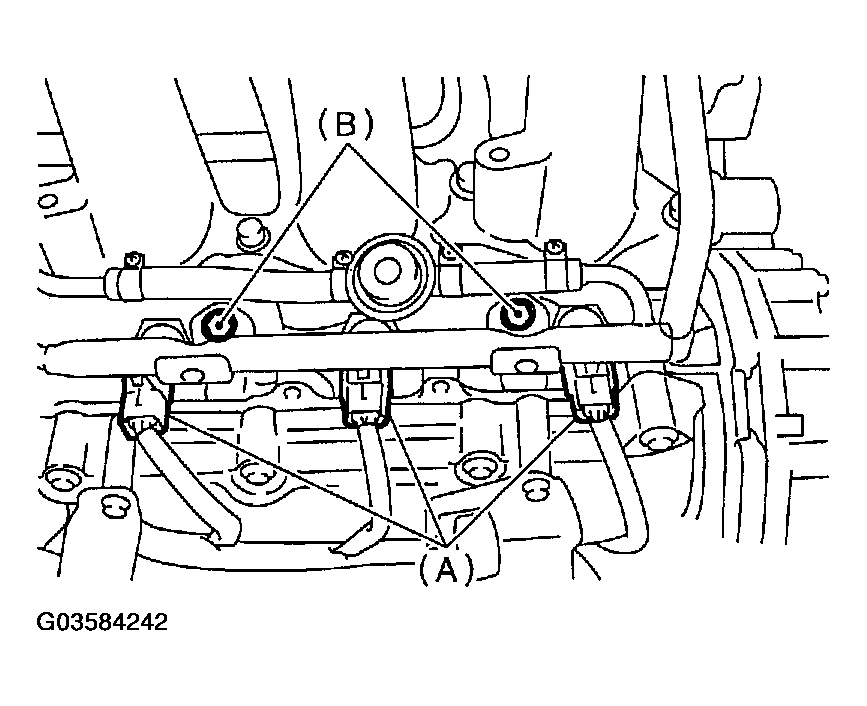

Fig 10: Disconnecting Connector (A) From Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel injector while lifting up fuel injector pipe.
