Removal & Installation

WARNING: This page is about a different car, the 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground cable from battery.
Remove instrument panel lower cover. See INSTRUMENT PANEL ASSEMBLY .
Remove nut. Remove keyless entry control module (A) while disconnecting the connector. See Fig 1 .
Disconnect keyless entry control module.
Install in the reverse order of the removal procedure.

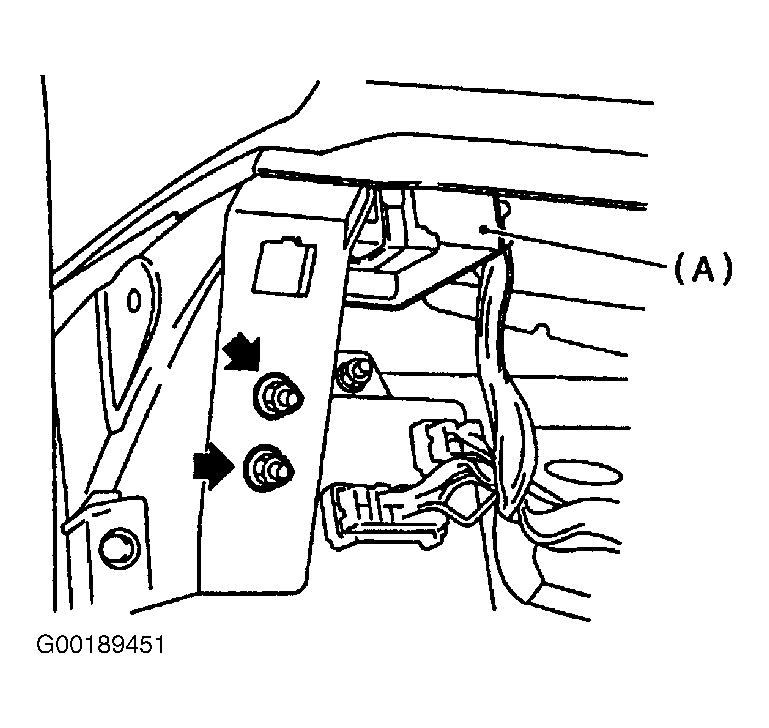

Fig 1: Removing & Installing Keyless Entry Control Module

Courtesy of SUBARU OF AMERICA, INC.
