MT Gear Shift Lever: Disassembly

Remove lock wire.

Fig 1: Removing Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove rod from lever.

Fig 2: Removing Rod From Lever
Courtesy of SUBARU OF AMERICA, INC.

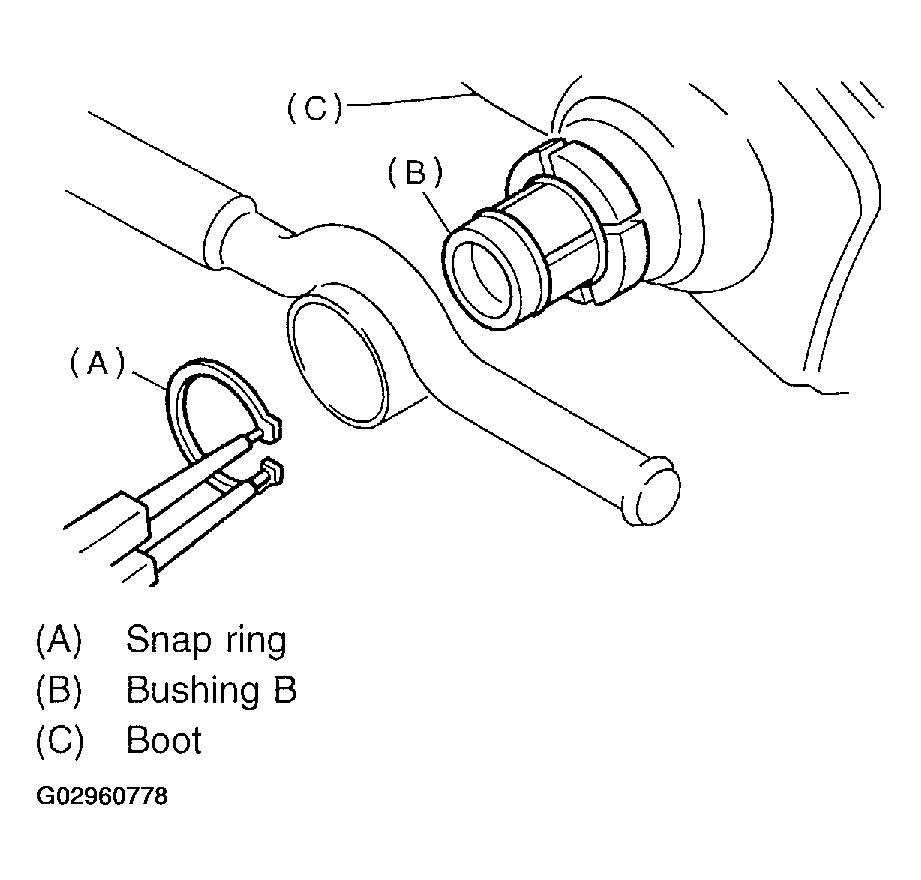

Remove snap ring from bushing B, then disconnect stay.

Fig 3: Removing Snap Ring From Bushing B
Courtesy of SUBARU OF AMERICA, INC.
Remove boot from gear shift lever.
Remove bushing and cushion rubber from stay.

Fig 4: Removing Bushing & Cushion Rubber From Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove O-ring, then disconnect bushing B.

Fig 5: Removing O-Ring & Bushing B
Courtesy of SUBARU OF AMERICA, INC.
Draw out spring pin, then remove bushing A from gear shift lever.

Fig 6: Removing Bushing A From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
