MT Gear Shift Lever: Inspection

Check each part (bushing, cushion rubber, spacer, boot, stay and rod, etc.) for deformation, damage and wear. Repair or replace any defective part. Determine defective parts by comparing with new parts.

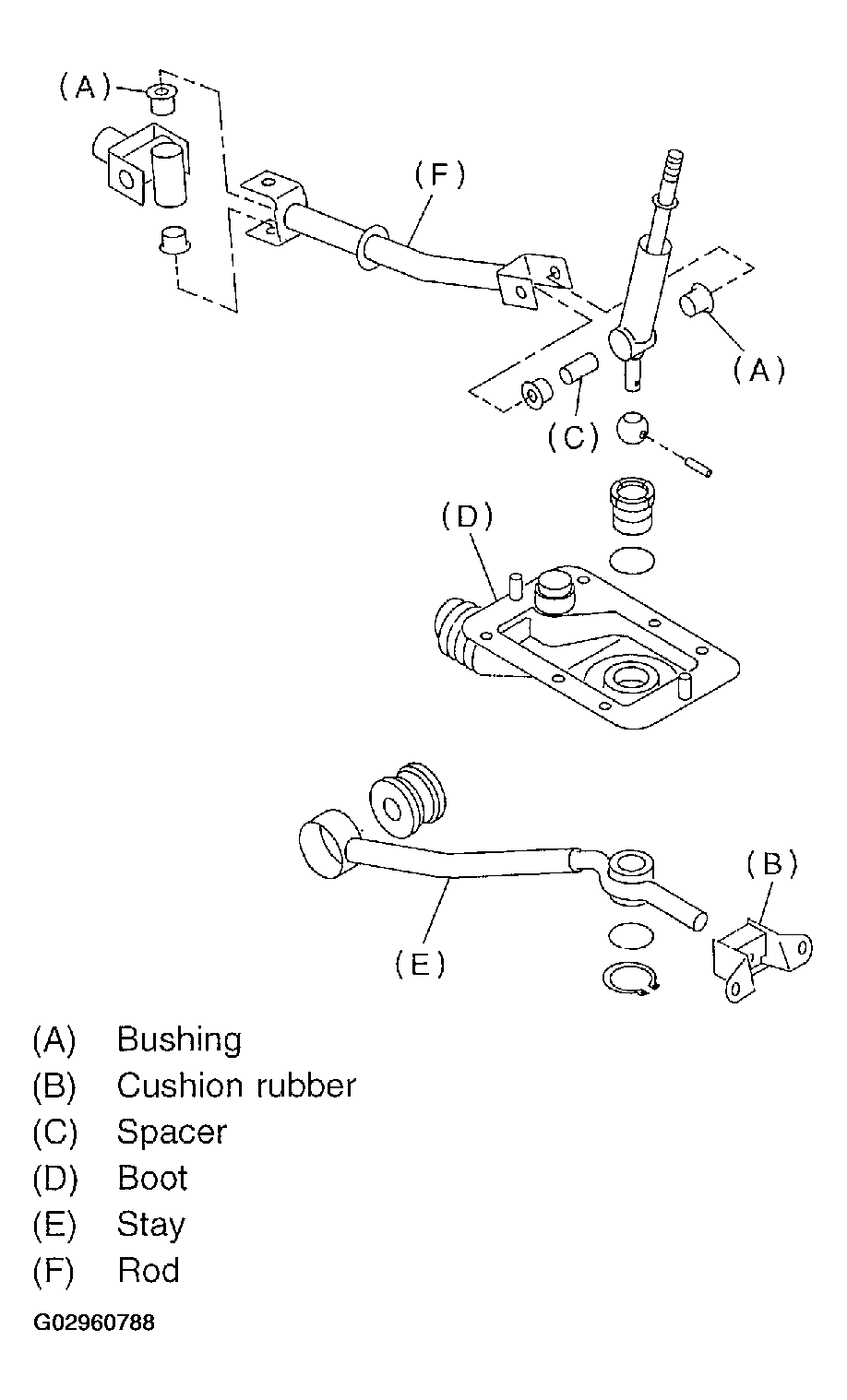

Fig 1: Inspecting MT Gear Shift Lever Parts
Courtesy of SUBARU OF AMERICA, INC.
Check rod swing torque in relation to the gear shift lever.
If torque exceeds the specification, replace bushing or retighten nuts.
1. Locking torque: 0.7 N.m (0.07 kgf-m, 0.5 ft-lb) or less
Fig 2: Checking Rod Swing Torque In Relation To Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
