Select Cable: Installation

Install select cable to plate assembly.
1. Tightening torque: 32 N.m (3.3 kgf-m, 24 ft-lb)
Install select cable to range select lever.
Install plate assembly to transmission.
Tightening torque:
1. T: 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

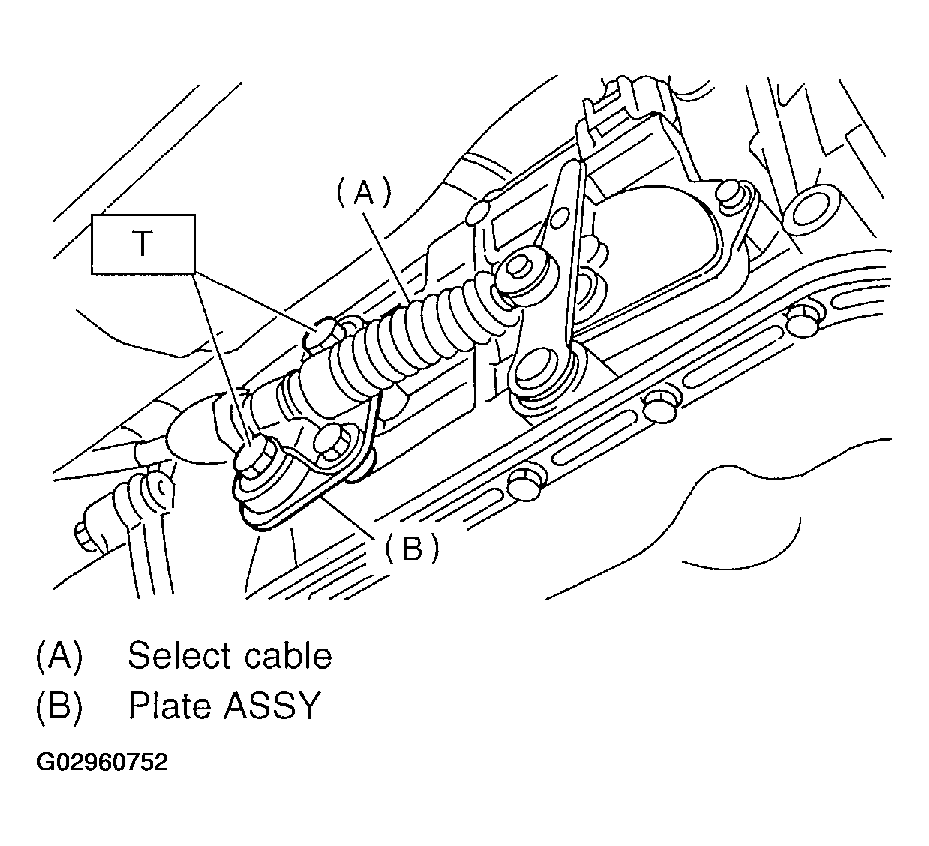

Fig 1: Installing Plate Assembly To Transmission
Courtesy of SUBARU OF AMERICA, INC.
Install snap pin to range select lever.

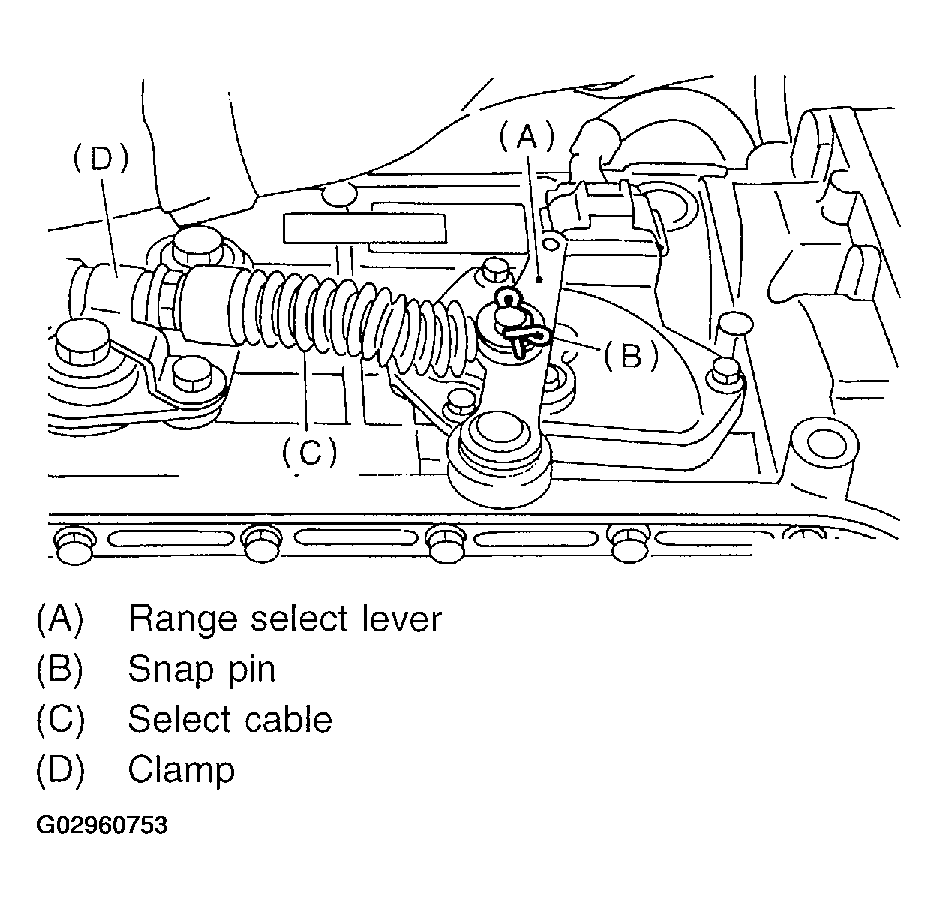

Fig 2: Installing Snap Pin To Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Move the select lever to the "N" position, then adjust the select cable position. Refer to ADJUSTMENT , Select Cable.
Install heat shield cover.

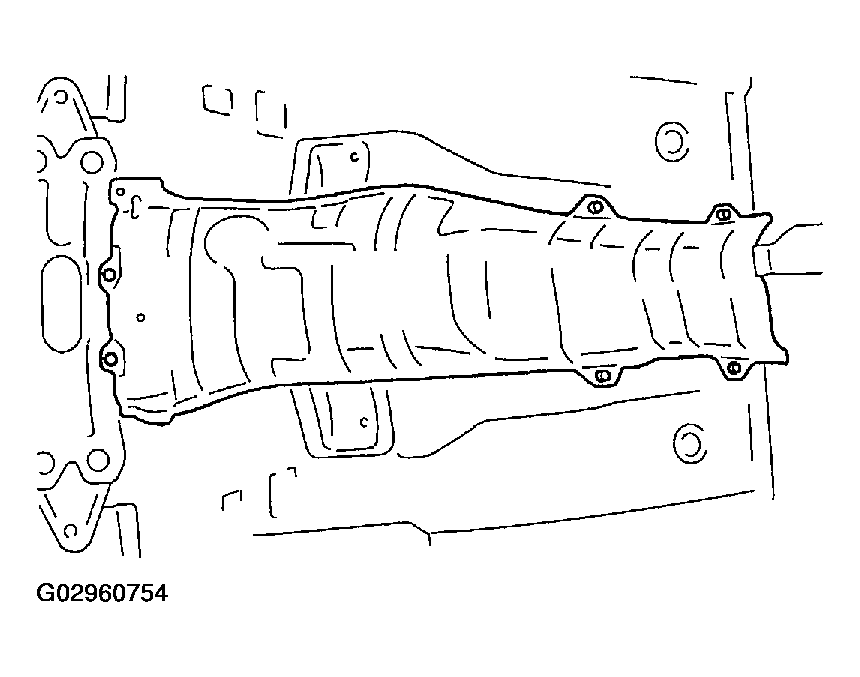

Fig 3: Installing Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Install rear exhaust pipe to muffler.
2.5 L model

Refer to INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.

3.0 L model

Refer to INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.
Install under cover.
