Engine Control Module: Removal

Disconnect battery ground cable.

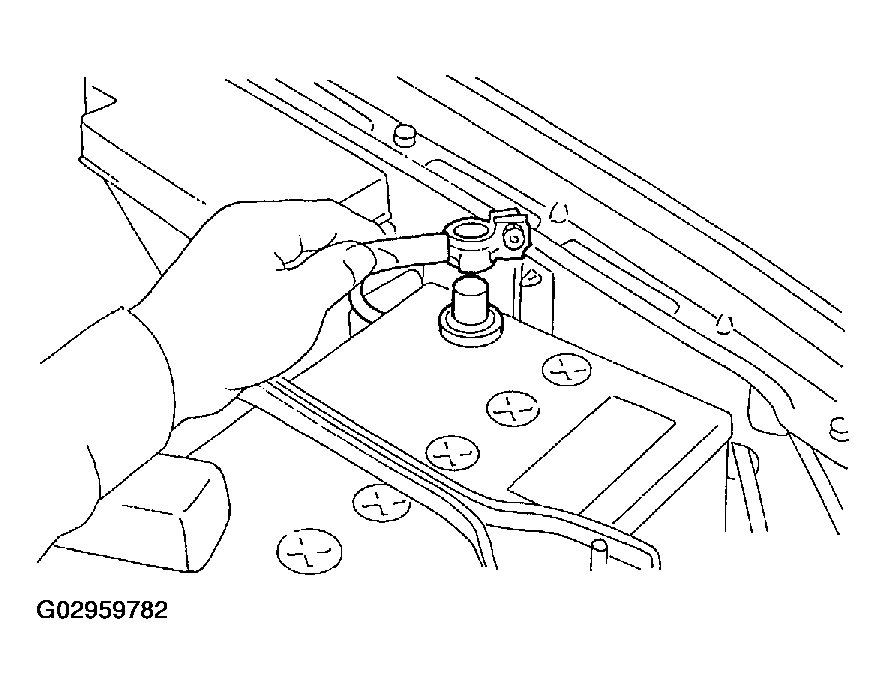

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side. Refer to REMOVAL , Lower Inner Trim.

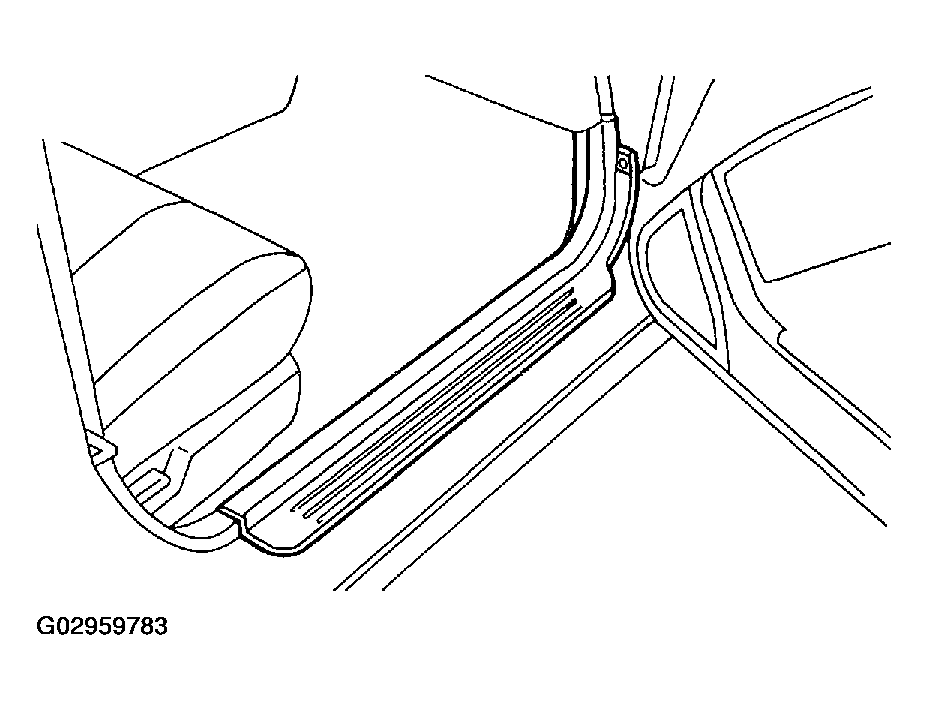

Fig 2: Removing Lower Inner Trim Of Passenger Side
Courtesy of SUBARU OF AMERICA, INC.
Detach floor mat of front passenger seat.

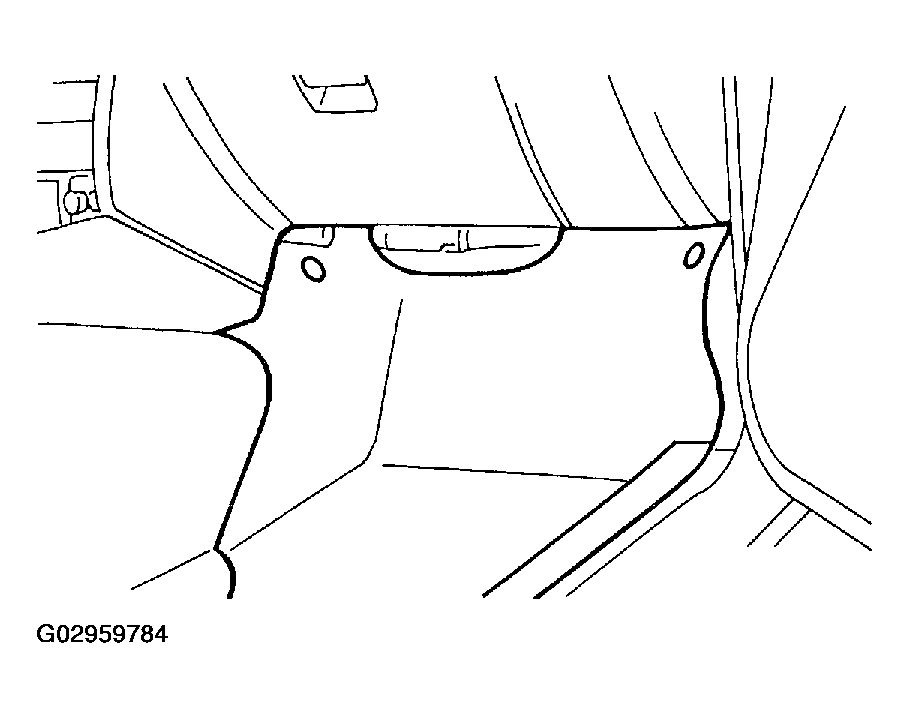

Fig 3: Detaching Floor Mat Of Front Passenger Seat
Courtesy of SUBARU OF AMERICA, INC.
Remove protect cover.

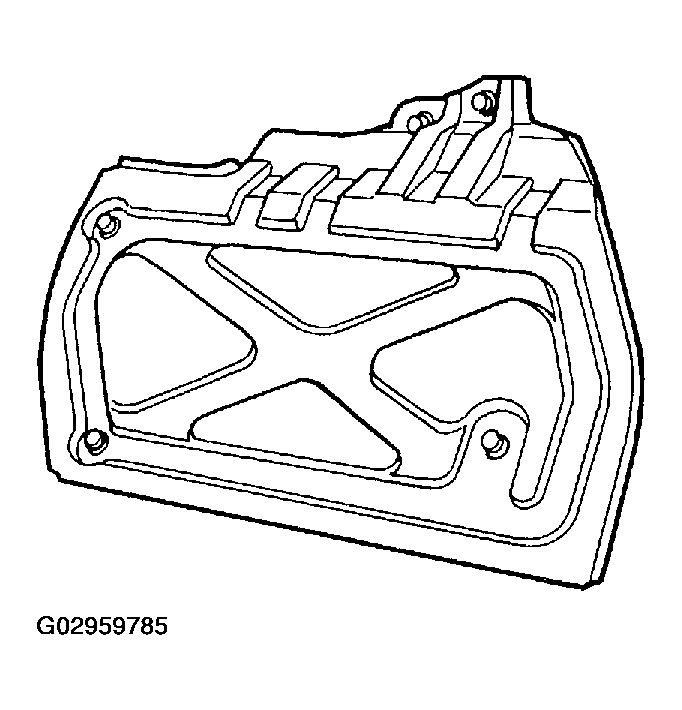

Fig 4: Removing Protect Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts which hold ECM to bracket.

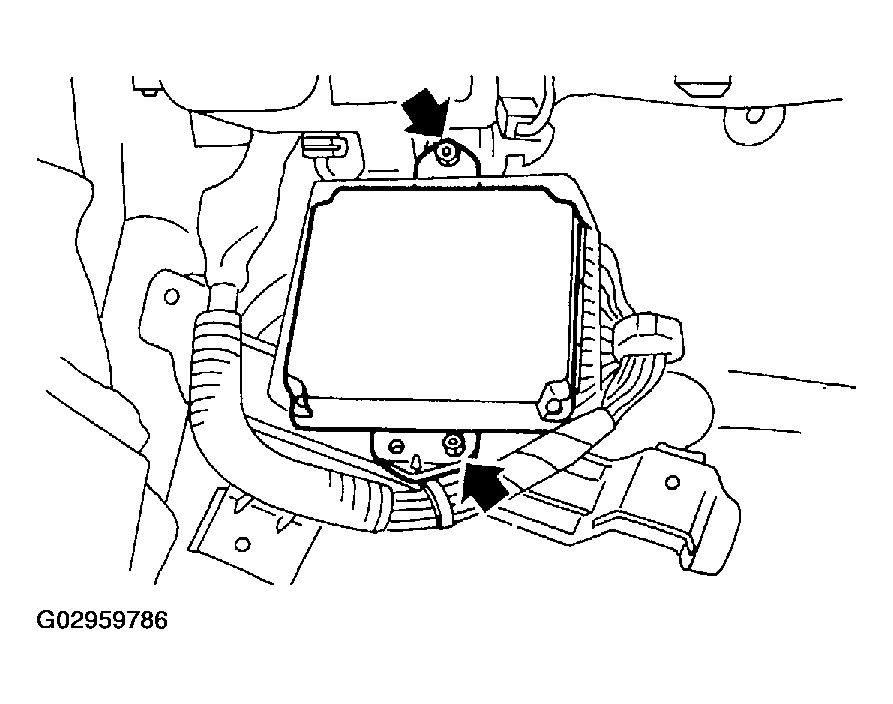

Fig 5: Removing Nuts Holding ECM To Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove clip from bracket.

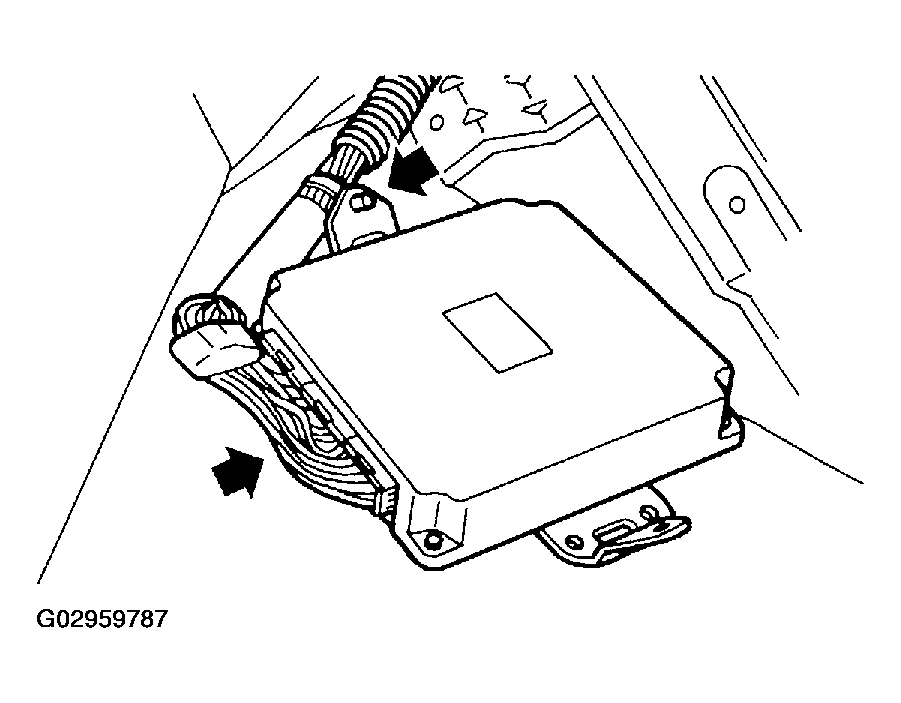

Fig 6: Removing Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect ECM connectors and take out ECM.

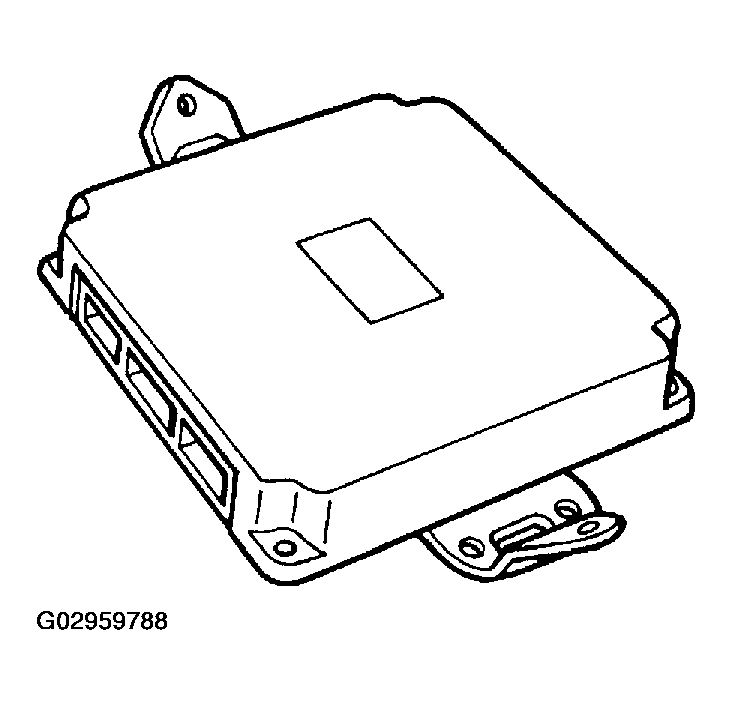

Fig 7: Disconnecting ECM Connectors
Courtesy of SUBARU OF AMERICA, INC.
