Fuel Level Sensor: Installation

Install in the reverse order of removal.

WARNING:
  • Ground cable must be connected.
  • Spark may occur and ignite if fuel is nearby.

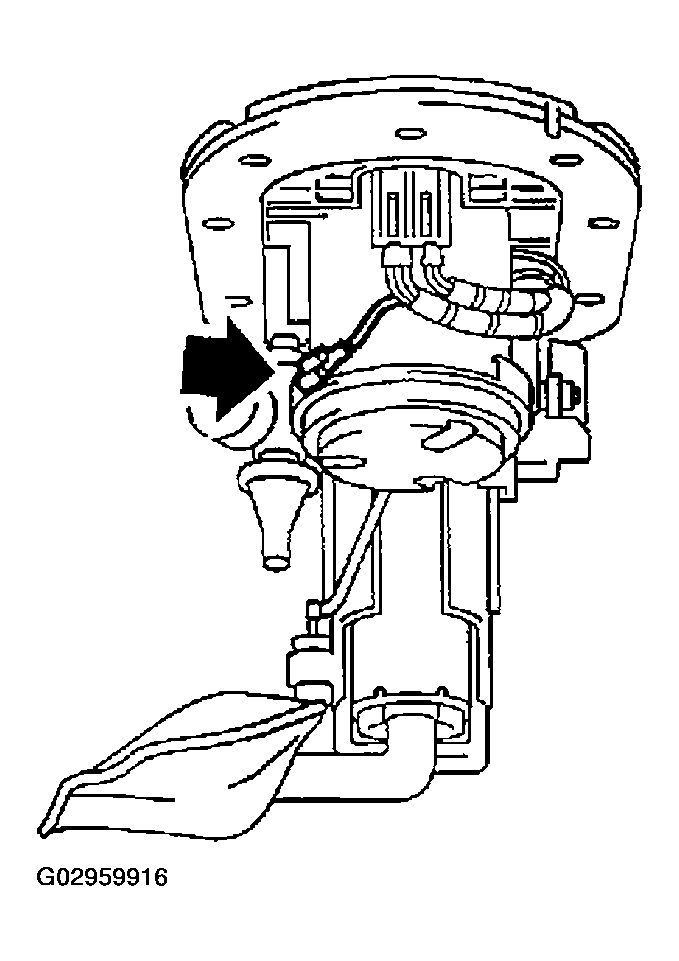

Fig 1: Connecting Connector To Fuel Pump Bracket
G02959916Courtesy of SUBARU OF AMERICA, INC.
