LH Side

Install in the reverse order of removal.

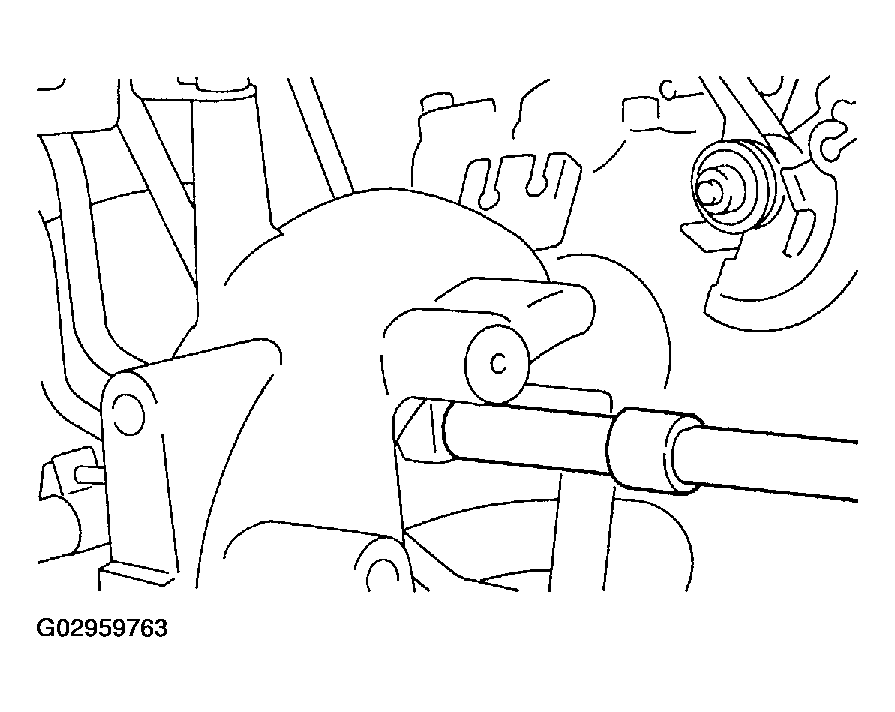

Fig 1: Replacing O-Ring

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

1. 5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

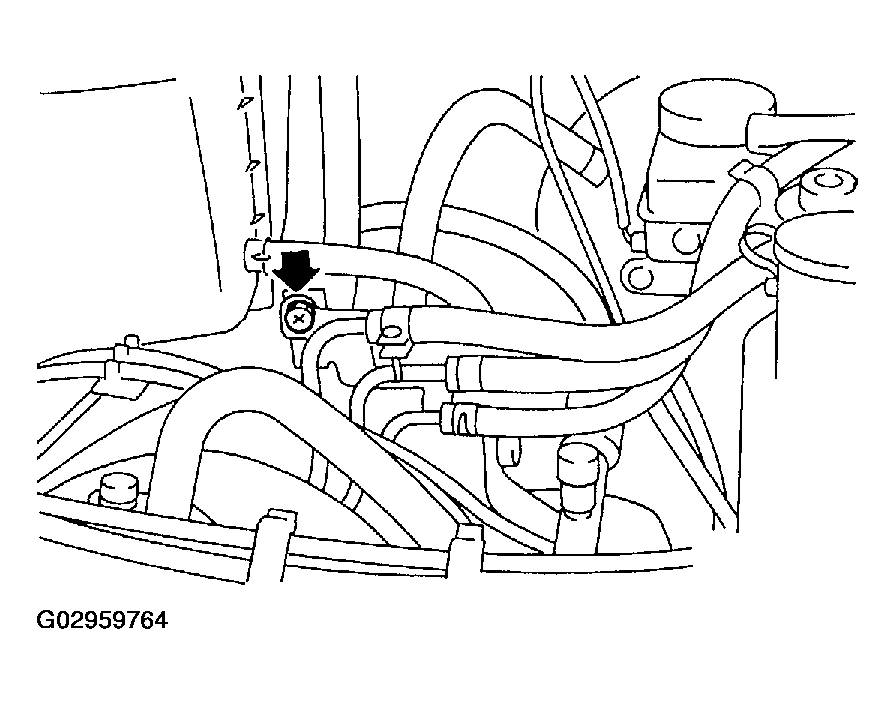

Fig 2: Installing Bolt Holding Injector Pipe To Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

Fig 3: Installing Bolt Holding Fuel Pipe On Left Side Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  19 N.m (1.9 kgf-m, 13.7 ft-lb)

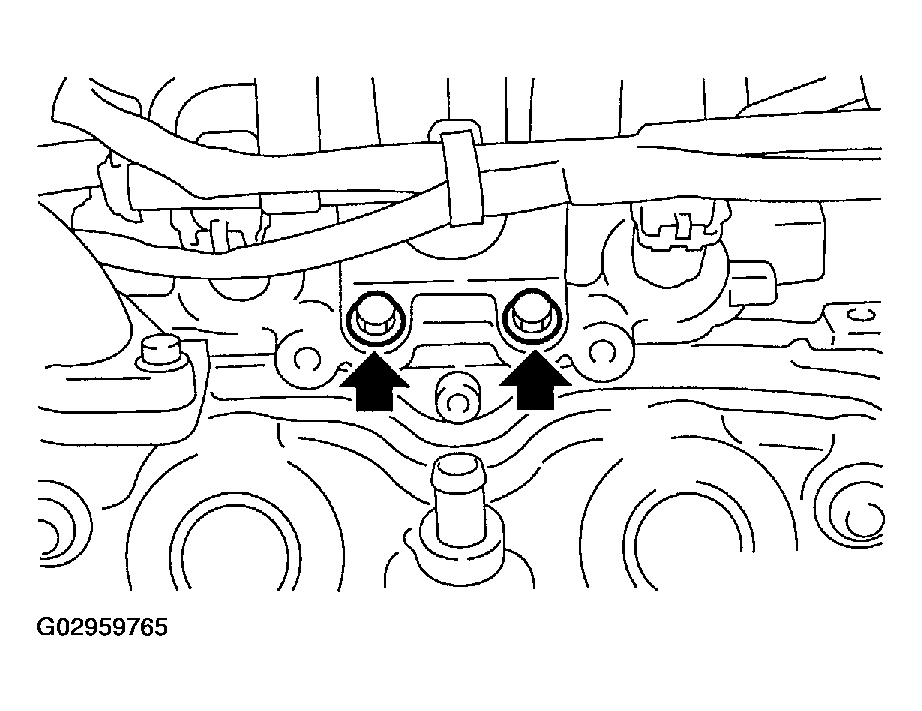

Fig 4: Installing Bolt Holding Injector Pipe To Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  19 N.m (1.9 kgf-m, 13.7 ft-lb)

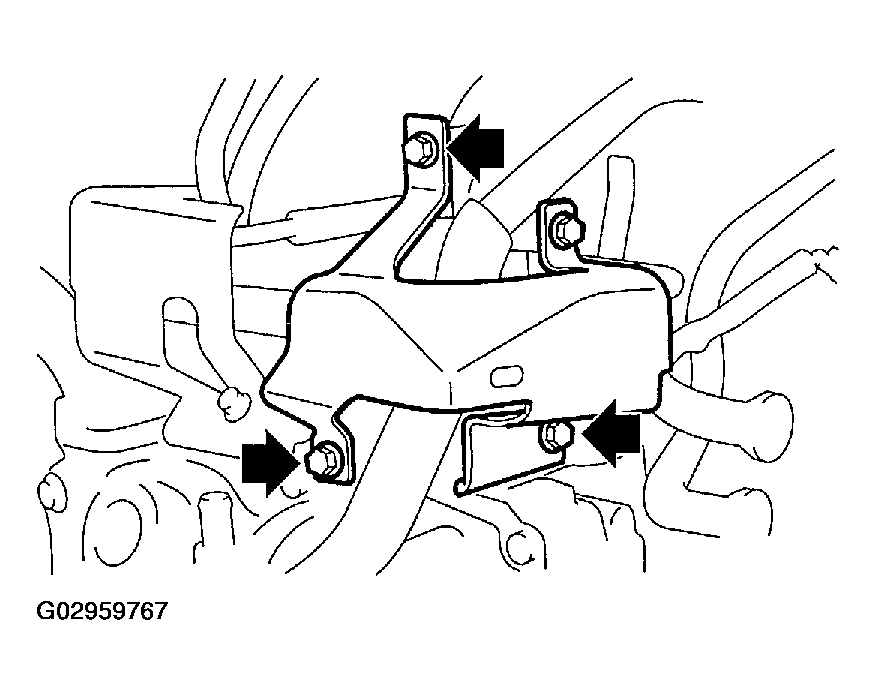

Fig 5: Installing Fuel Pipe Protector LH (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Installing Fuel Pipe Protector LH (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
