RH Side

Install in the reverse order of removal.

Fig 1: Replacing O-Ring

Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

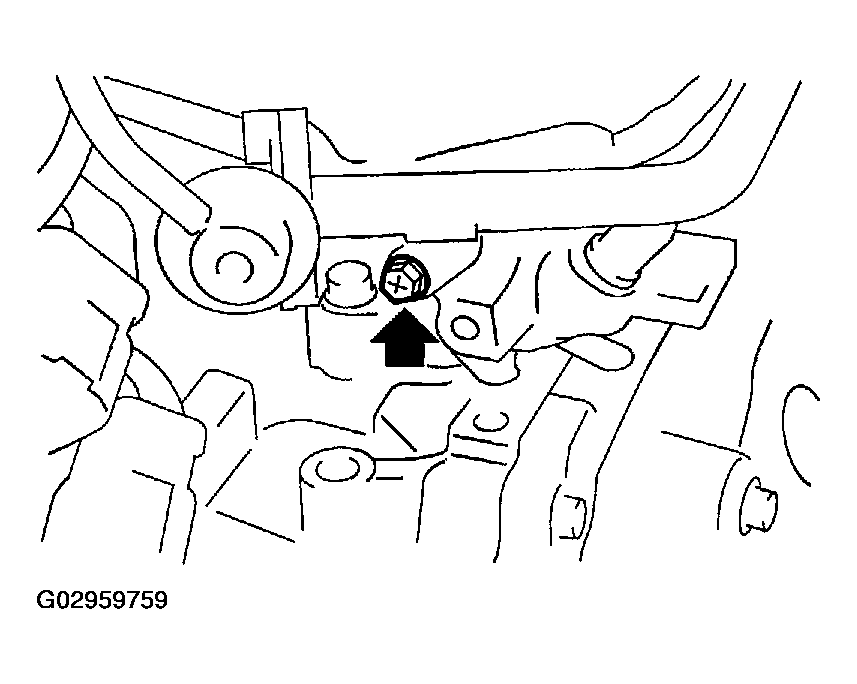

Fig 2: Installing Injector Pipe Bolt

Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  19 N.m (0.19 kgf-m, 1.4 ft-lb)

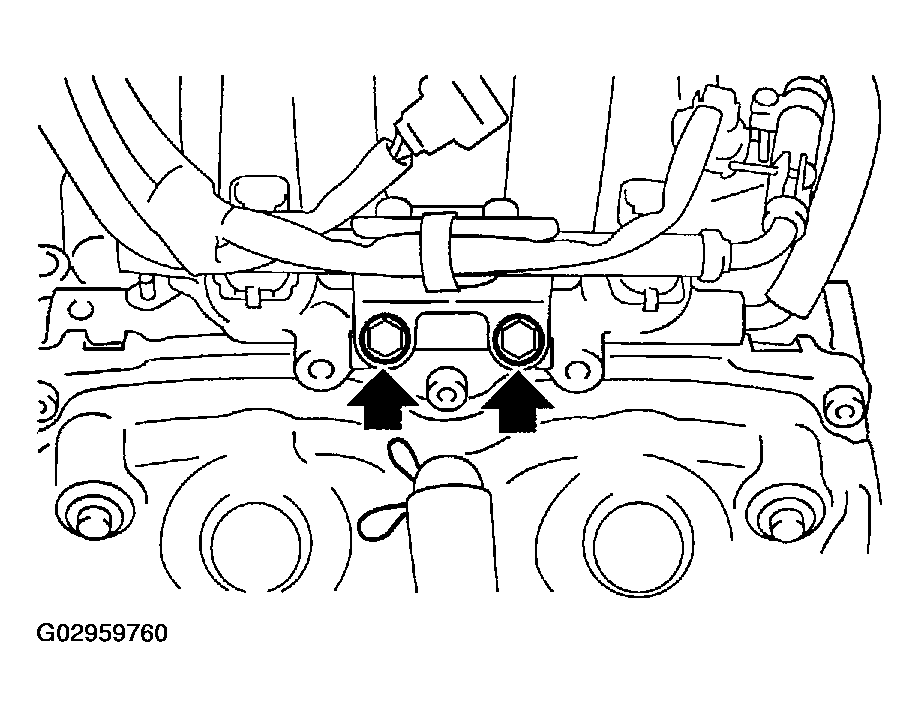

Fig 3: Installing Bolt Holding Injector Pipe To Intake Manifold

Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque:  19 N.m (0.19 kgf-m, 1.4 ft-lb)

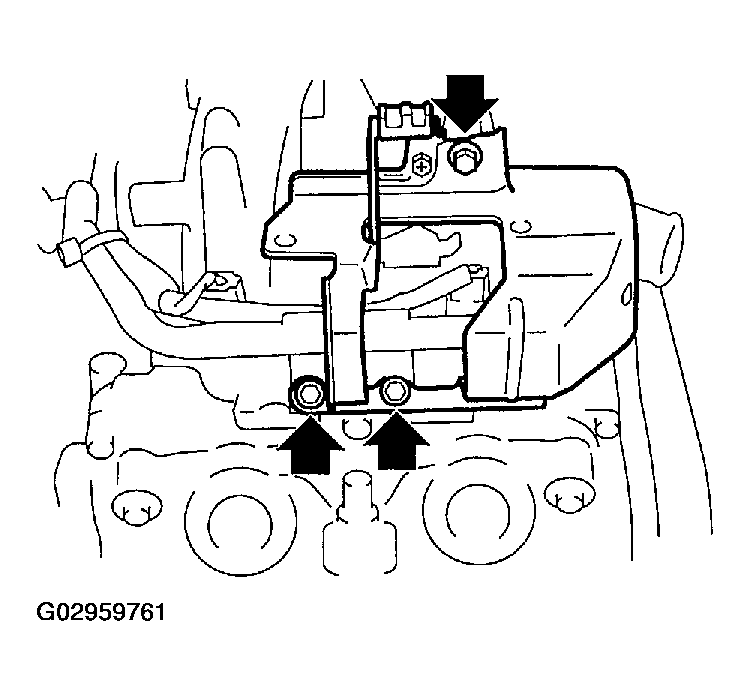

Fig 4: Installing Fuel Pipe Protector RH

Courtesy of SUBARU OF AMERICA, INC.
