Throttle Body: Removal

Disconnect battery ground cable.

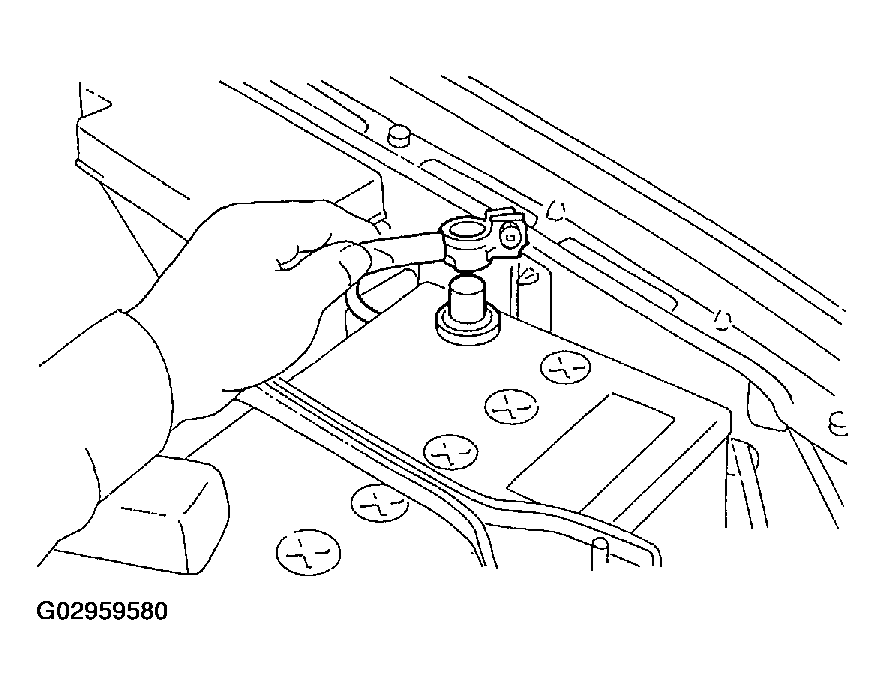

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner case.

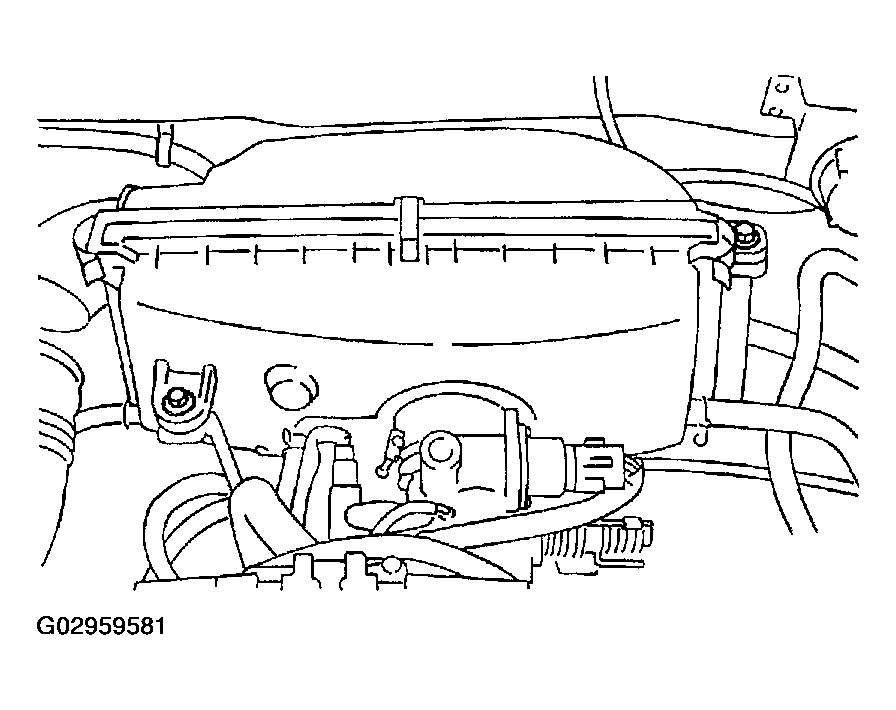

Fig 2: Removing Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Disconnect accelerator cable (A).
Disconnect cruise control cable (B). (With cruise control model)

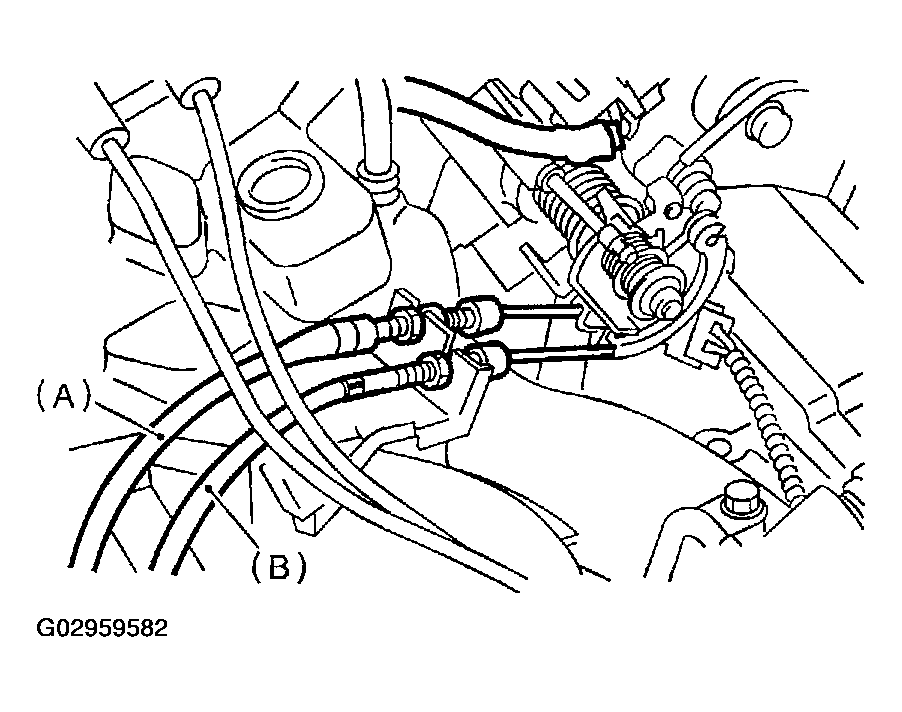

Fig 3: Disconnecting Accelerator Cable & Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connectors from idle air control solenoid valve, throttle position sensor.
Disconnect air by-pass hose from air assist injector solenoid valve.

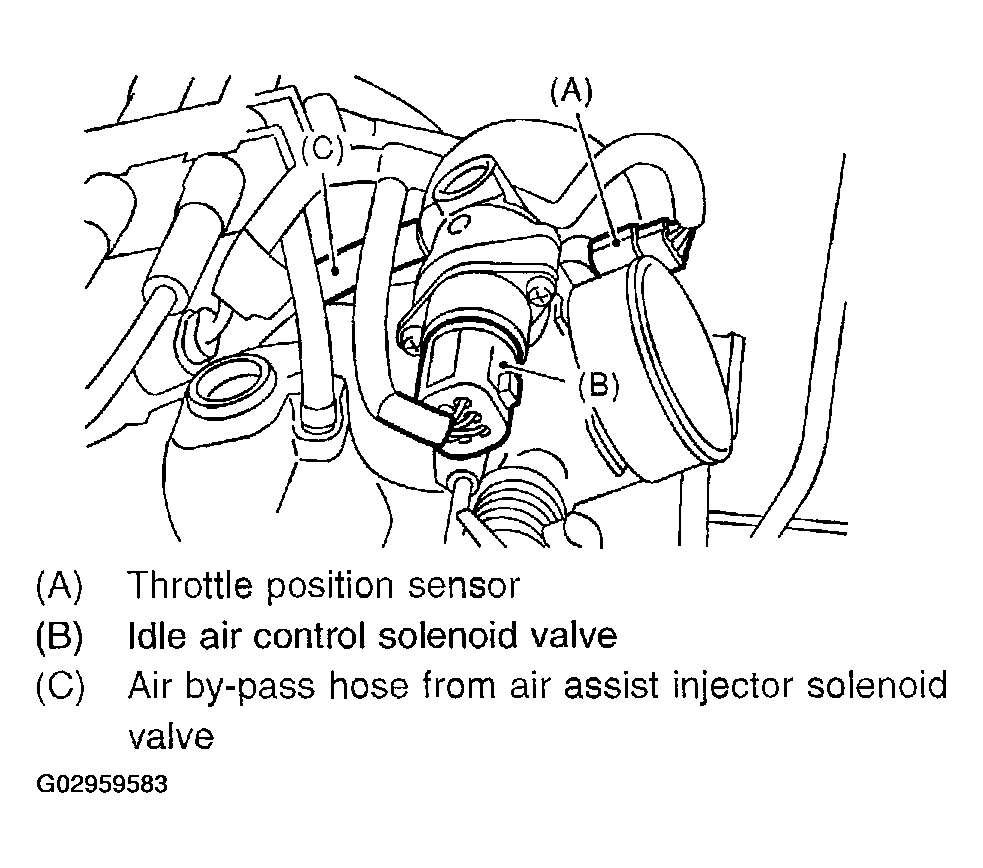

Fig 4: Disconnecting Air By-Pass Hose From Air Assist Injector Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
1. Throttle position sensor
2. Idle air control solenoid valve
3. Air by-pass hose from air assist injector solenoid valve
Disconnect engine coolant hoses from throttle body.

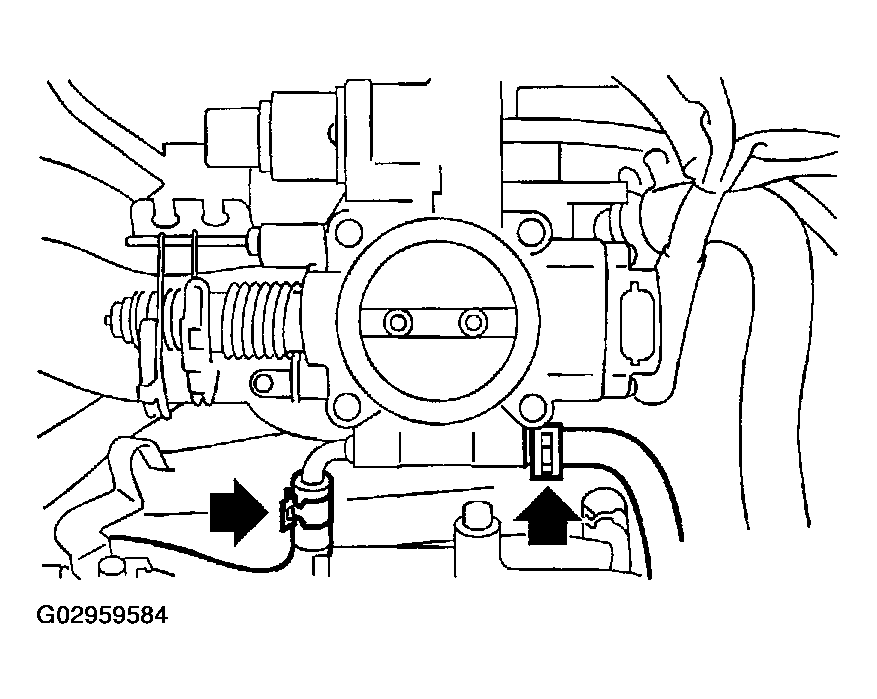

Fig 5: Disconnecting Engine Coolant Hoses From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which install throttle body to intake manifold.
